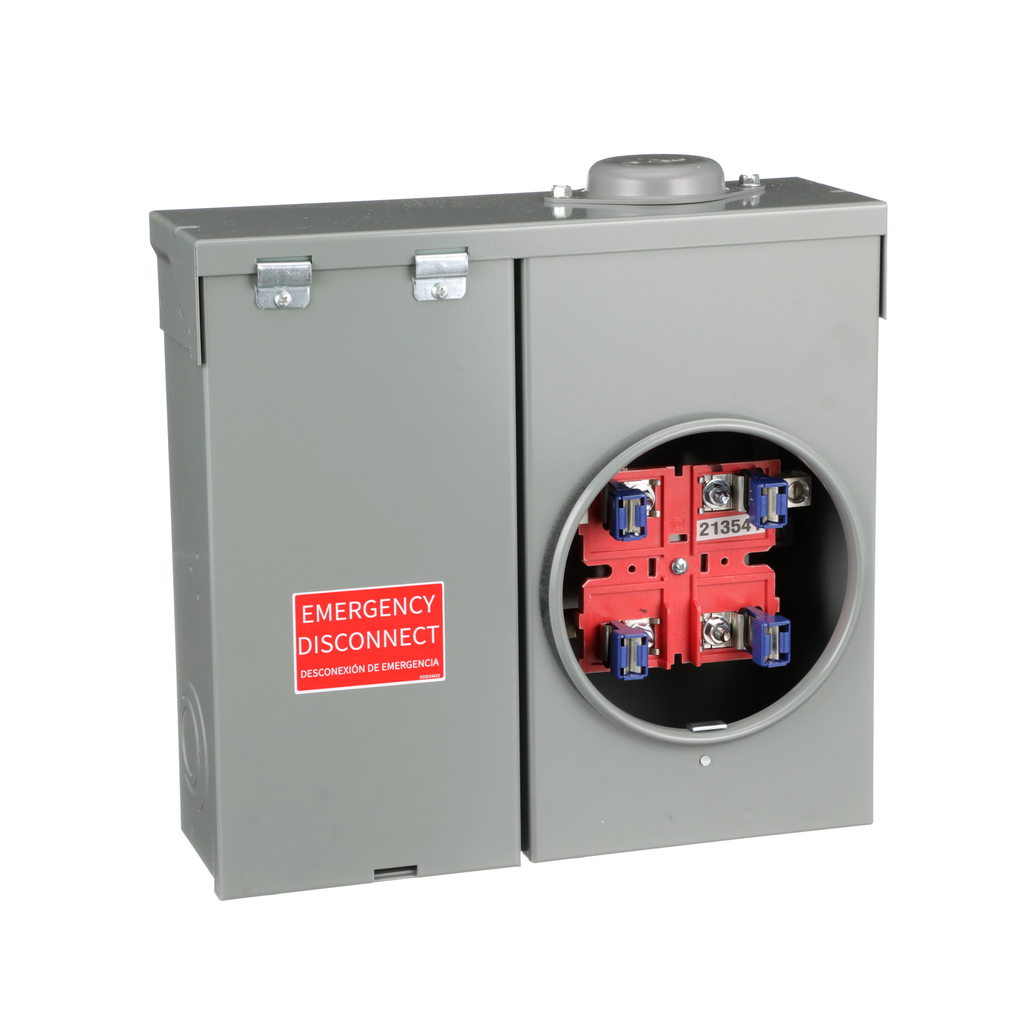

Square D C125RB Meter Main 120/240 VAC 125 Amp 1 Phase Ring Type

Product Description

The Square D C125RB is a one-phase power distribution panel designed for residential use, complying with local codes that necessitate service disconnects outside. This meter main is equipped with a standard utility meter socket and includes a main disconnect breaker.

• Current rating: 125 Amps
• Short circuit rating: 10 kA
• Includes a factory-installed QOM1-VH main breaker

Product Highlights

This product offers a time-saving solution for installation, allowing for efficient management of electrical distribution, especially where underground feeds are required.

Product Information

Standard Information

• Catalog Number: C125RB
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Ringed; Meter Mains
• Width: 13.82 inches
• Height: 12.8 inches
• Depth: 4.39 inches
• Wire Size: AWG 4...AWG 1/0 for line side; AWG 8...AWG 1/0 for service ground
• Mounting Type: Surface
• Certifications: UL E-6294
• Country of Origin: Mexico
