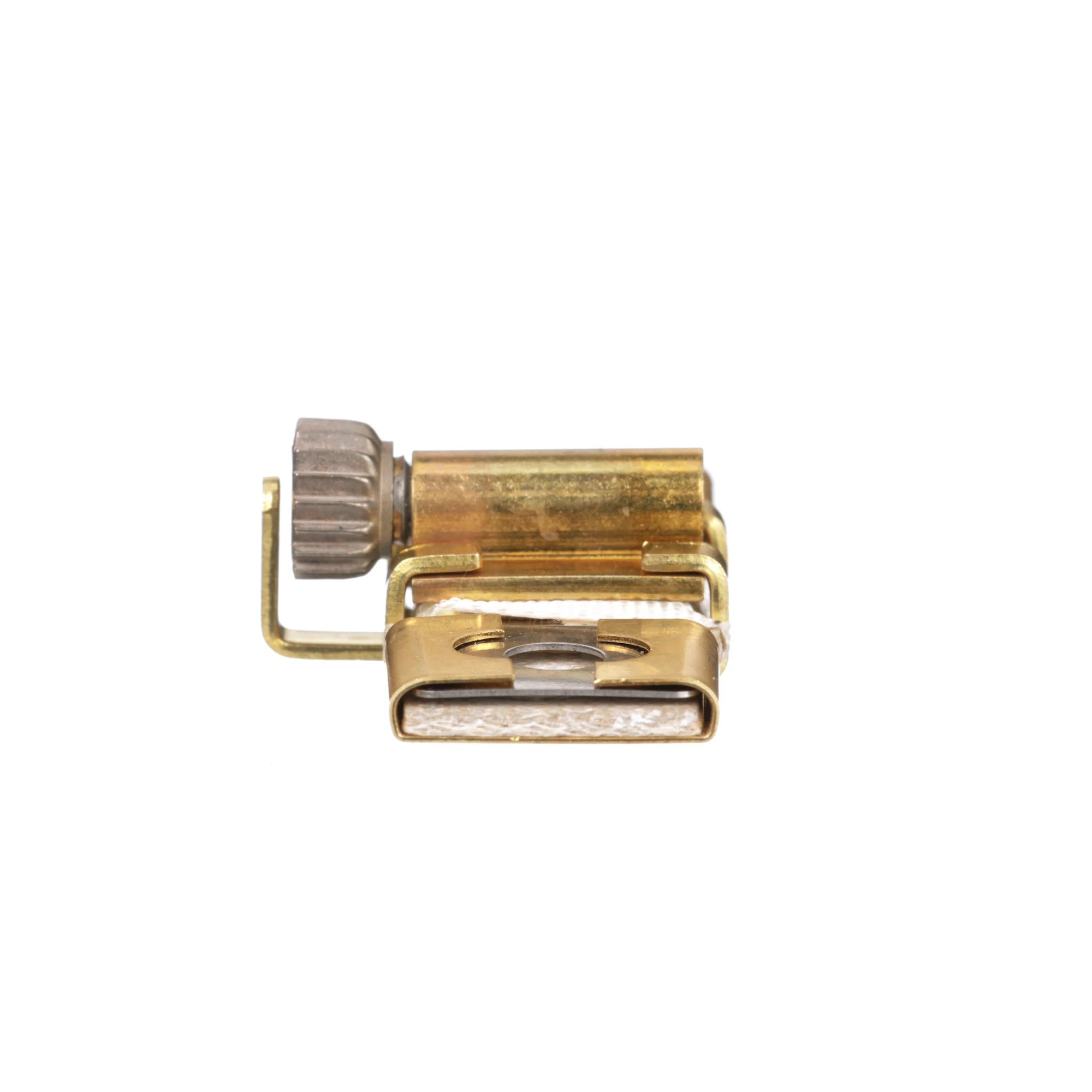

Square D B56.0 Thermal Unit

Product Description

Square D B56.0 thermal unit is designed for motor protection from overheating due to prolonged over-currents. This thermal unit is suitable for use in melting alloy thermal overload relays. It allows safe operation under locked rotor conditions and responds to overload currents effectively.

• Trip in 20 seconds or less under overload conditions.
• Accepts wires from #18 AWG through #10 AWG.
• UL recognized and CSA certified for up to 30 Amp and rated at 600 VAC or VDC.

Product Highlights

Provides overload protection for motors, ensuring safe operation and effective control of electrical current.

Product Information

Standard Information

• Catalog Number: B56.0
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Thermal - Melting Alloy Thermal Unit
• Trip Type: Standard Trip - Class 73
• Reset Type: Manual
• Warranty Length: 18 months
• Country of Origin: Mexico
• UPC: 785901587620
• GTIN: 00785901587620
• Applications: For use in melting alloy thermal overload relays
