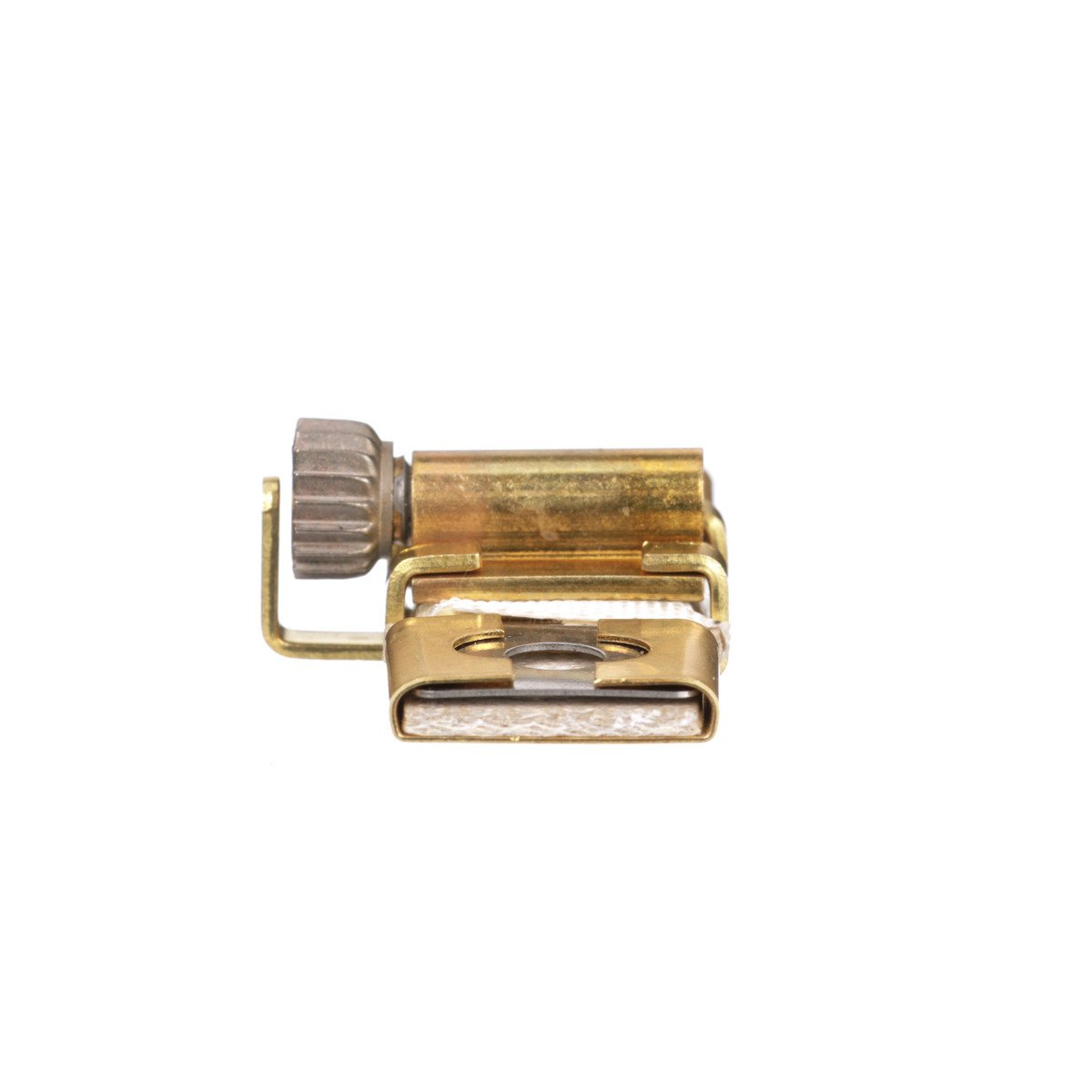

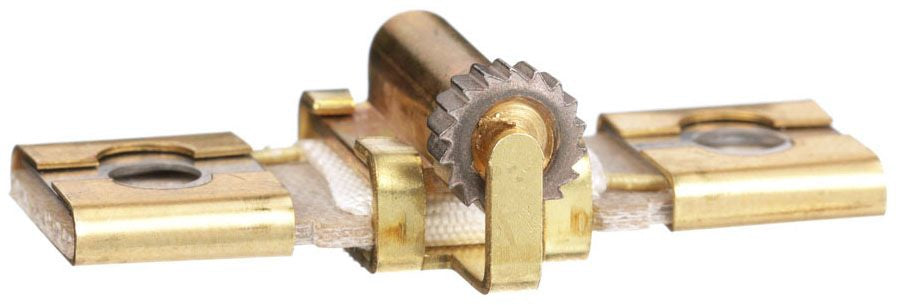

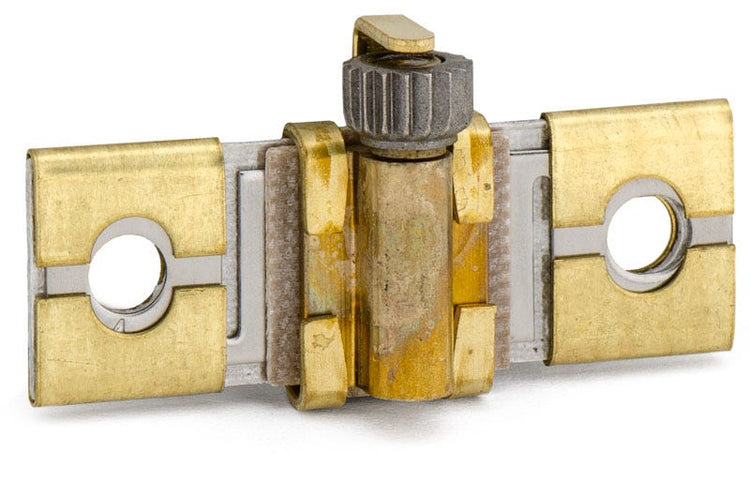

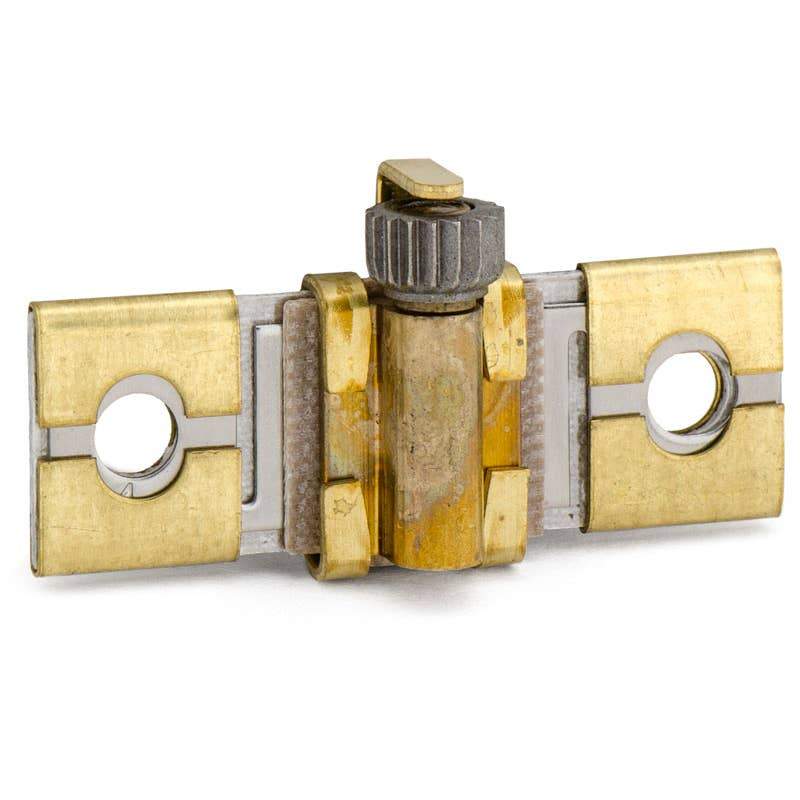

Square D B32.0 Thermal Unit

Product Description

The Square D B32.0 thermal unit is a Linergy NEMA panel mount fuse holder that accepts class H, R, CC, M, and J fuses up to 200 Amps. This three pole fuse holder accepts class H fuses with ratings up to 30 Amps and a 600 V maximum. These thermal units trip in 20 seconds or less on overload conditions.

• One-piece thermal unit construction
• Provides overload protection for most motors
• Cannot be reset until cooled

Product Highlights

Thermal unit provides overload protection for motors with a one-piece construction and automatic trip functionality.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: B32.0
• Country of Origin: Mexico

Technical Specifications

• Type: THERMAL - MELTING ALLOY THERMAL UNIT
• Brand: Square D
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: STANDARD TRIP- CLASS 65
• Reset Type: MANUAL
• Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
• Certifications: CE
• Catalog Number: B32.0
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901587576
• GTIN: 00785901587576
• IGCC: 5364
• Family group: MOTOR CONTROL
• WES Product code: 2440850223
• Motor Tripping Class: 20
• Thermal Overload Type: Melting alloy
• Series: B
• Amperage: 17.4-23.1
• Poles: 1
• Mounting Type: Plug-On
• Protection: Melting Alloy
• For Use With: Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Nema Size: 0, 00, 1, 1P, 2
• Mpn: B32.0
• Full Load Amps: 17.5 to 24.6 Amp
