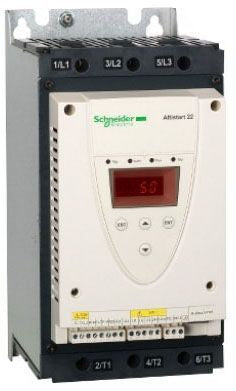

Square D ATS22D88S6U Soft Start 208-600Vac 110Vcntrl 88Amp

Product Description

Square D ATS22D88S6U is a soft start unit for motors. It operates between two hundred eight to six hundred volts and has an output of eighty-eight amperes. This device is suitable for three-phase motors with a power rating up to seventy-five horsepower. The soft starter minimizes the mechanical stress on motor systems, extending their lifespan.

• Voltage Range: 208V to 600V
• Current Rating: 88 Amperes
• Power Rating: 37 kW at 400V

Product Highlights

This soft starter helps in reducing starting current, making it ideal for applications involving pumps, fans, and conveyors.

Product Information

Standard Information

• Brand: Square D
• MPN: ATS22D88S6U

Technical Specifications

• UPC: 60648016742
• Enclosure: IP20
• Approval: UL, CSA
• Operation Type: Soft Start
• Number of Phases: 3
• Control Voltage: 110V at 50/60Hz
• Catalog Number: ATS22D88S6U
• Dimensions: 145 mm W x 207 mm D x 295 mm H
