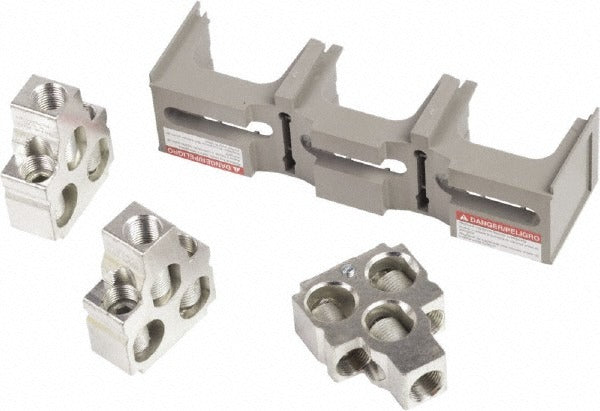

Square D AL800M23TK Circuit Breaker Lug Kit

Product Description

The SQUARE D AL800M23TK is a lug kit accessory designed for use with compatible Square D circuit breakers. Lug kits provide the termination points that connect incoming or outgoing conductors to the breaker body, ensuring a secure and code-compliant electrical connection. This kit is typically installed by licensed electricians during panel upgrades, service entrance work, or breaker replacement where factory-installed lugs are absent or must be upgraded to accept larger conductor sizes. The AL800M23TK ships as a single kit and weighs 1.78 pounds.

This lug kit is suited for commercial and residential electrical installations where Square D circuit breakers require field-installed conductor termination. It is commonly used during new panel installations, service upgrades, and retrofit projects where additional or replacement lugs are needed to meet wiring and load requirements. Electricians working on load centers and distribution panels will find this kit appropriate for those termination scenarios.

Key Features

• Accessory lug kit designed for use with Square D circuit breakers
• Provides secure conductor termination at the breaker
• Single kit per package, ready for field installation
• Compact form factor: 12.8 inches long, 5.7 inches wide, 3.6 inches tall
• Weighs 1.78 pounds for easy handling on the job

Compatibility

Designed as an OEM-style accessory lug kit for use with compatible Square D circuit breakers.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the panel before installing or servicing any breaker accessories. Verify conductor size and material compatibility with the lug kit rating before making terminations. Do not overtighten lug fasteners beyond manufacturer specifications listed in the breaker documentation.
