Square D AL100FD Mechanical Lug for Nf Panelboard

Product Description

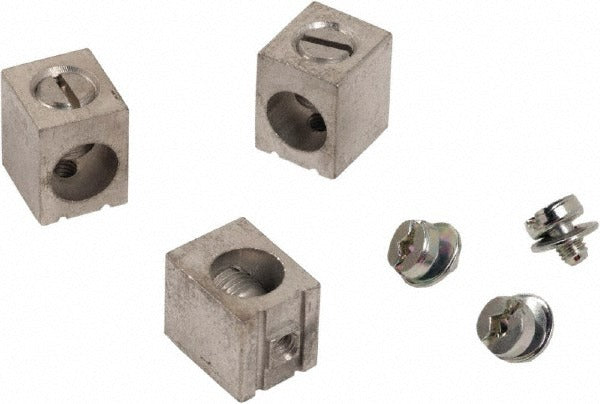

The SQUARE D AL100FD is a mechanical lug accessory designed for use with NF panelboards. It provides a secure, code-compliant termination point for incoming conductors, allowing field wiring connections without a lugged circuit breaker. The AL100FD is a compact component measuring 5.1 inches in length, 3.4 inches in width, and 0.6 inches in height, weighing 0.1 pounds. Licensed electricians and panel installers use this lug during new panel installations and service upgrades where flexible conductor landing is required.

This mechanical lug is intended for installation within SQUARE D NF series panelboards in residential and light commercial electrical distribution applications. It is typically installed during panel assembly or service work where the installer needs a dedicated termination point separate from the main breaker lugs. The part ships in a package quantity of one, making it suitable for single-panel service calls as well as multi-unit electrical projects.

Key Features

• Mechanical lug design provides a dedicated conductor termination point inside NF panelboards
• Compact form factor at 5.1 x 3.4 x 0.6 inches for easy fitment within panel enclosures
• Lightweight at 0.1 pounds for simple handling and positioning during installation
• OEM accessory type ensures proper fit and function within the intended panelboard family

Compatibility

Designed for use with SQUARE D NF series panelboards as stated by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power to the panelboard before handling any internal components. Verify conductor sizing and torque requirements per the panelboard labeling and applicable NEC guidelines before securing conductors to the lug. Do not energize the panel until all connections have been inspected and the enclosure is properly closed.
