Square D A9.25 Thermal Unit

Product Description

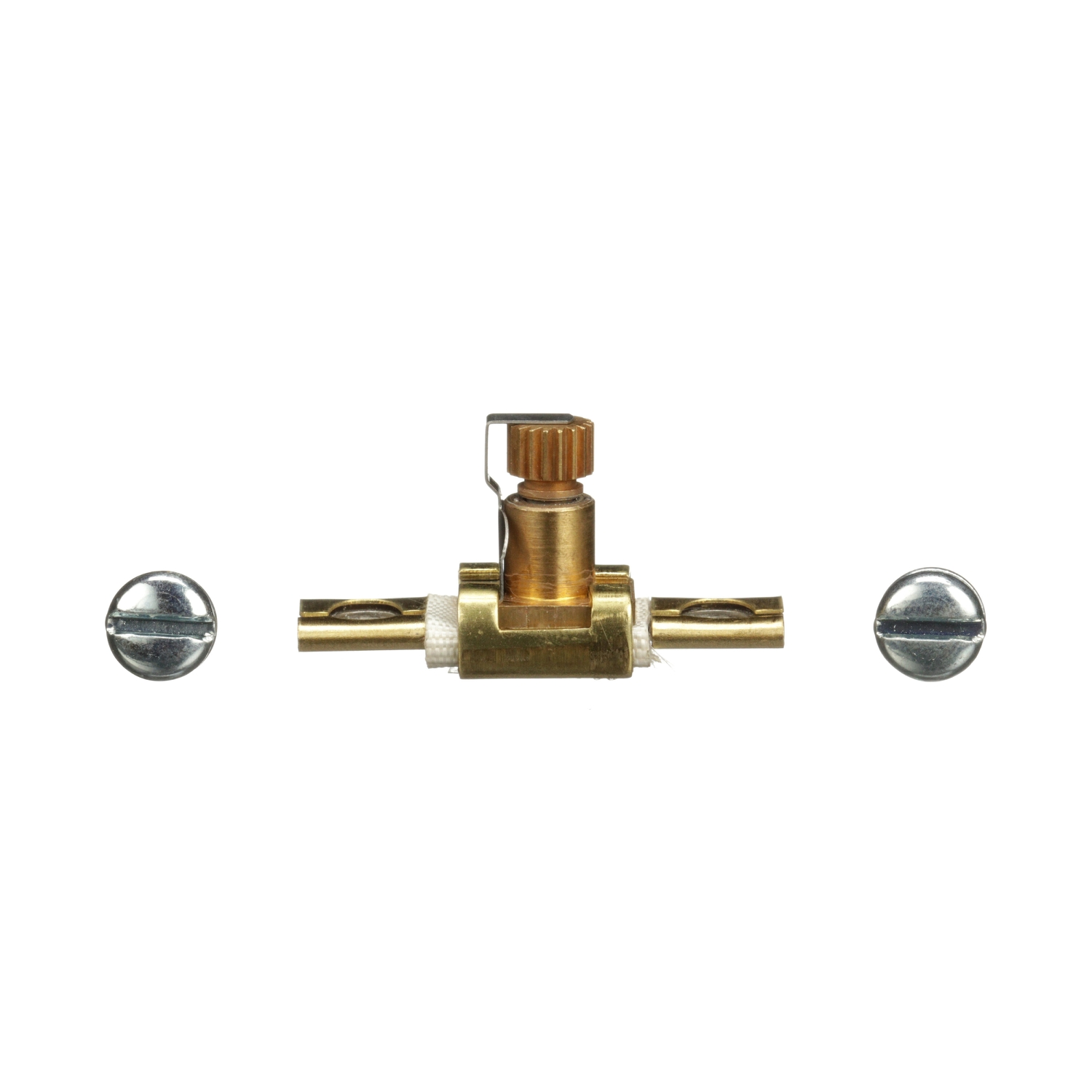

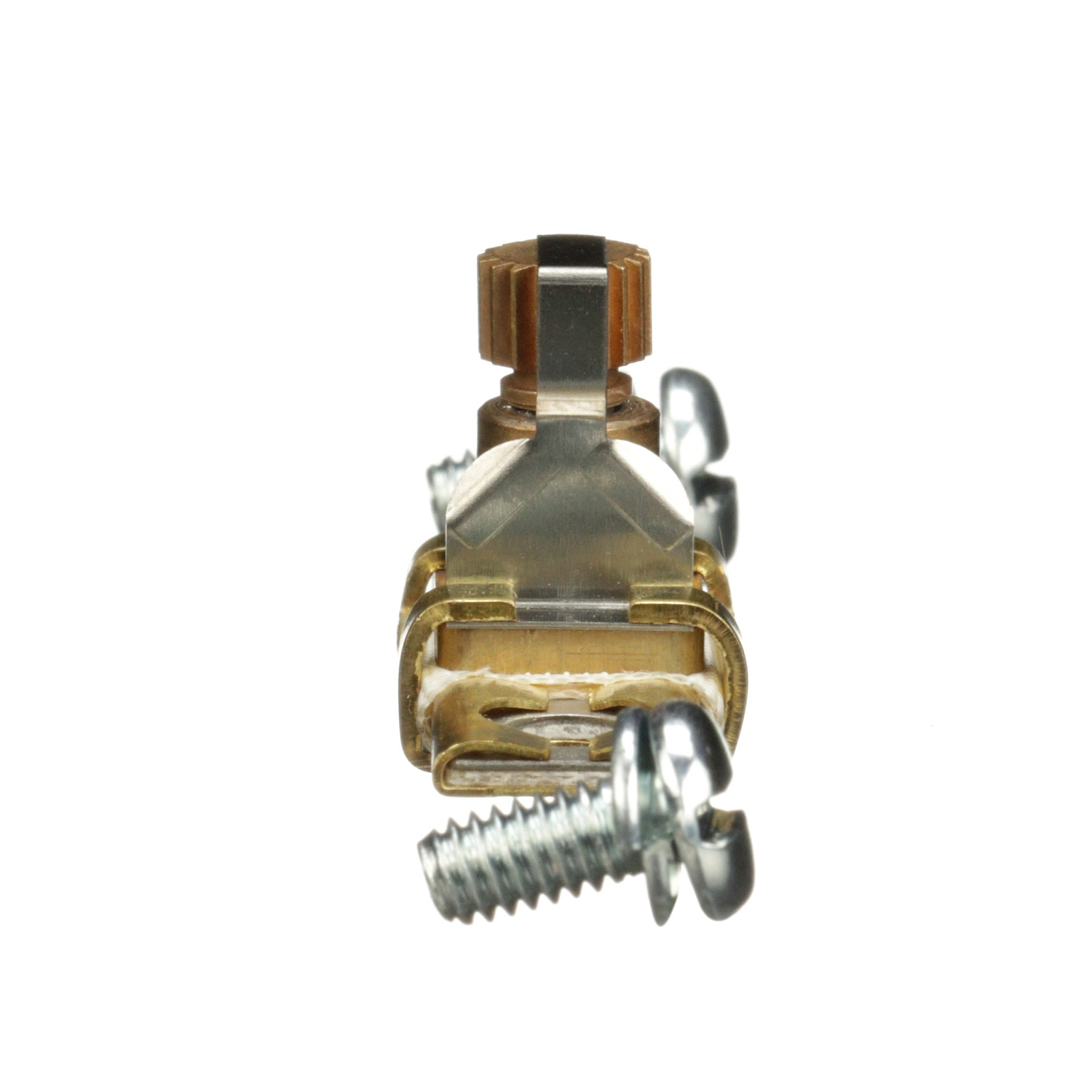

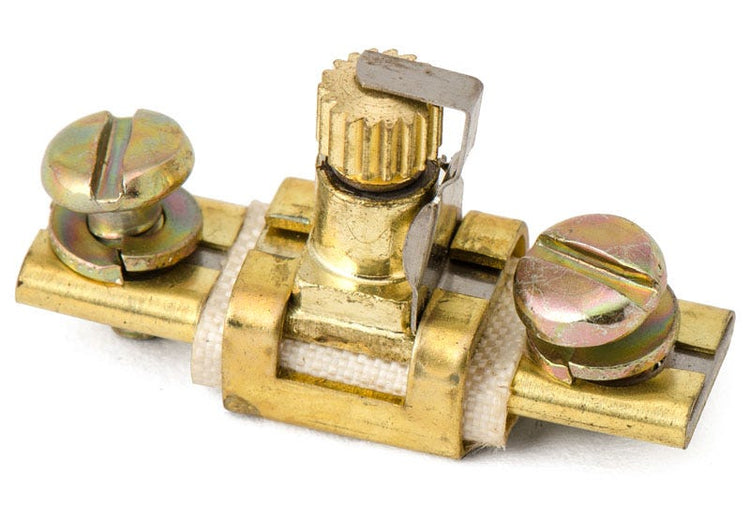

The Square D A9.25 thermal unit protects motors, controllers, and branch circuit conductors against excessive heating due to prolonged motor over currents, including locked rotor currents. Class 20 thermal units respond to overload current conditions according to trip curves, tripping in 20 seconds or less. It features a one-piece construction. The motor current passes through a small heater winding within the unit.

• Protects motors from overheating
• Protects controllers from overheating
• Protects branch circuit conductors from overheating
• Class 20 thermal units

Product Highlights

Protects motors, controllers, and conductors from overheating with Class 20 thermal units.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: A9.25
• Country of Origin: Mexico

Technical Specifications

• Type: THERMAL - MELTING ALLOY THERMAL UNIT
• Brand: Square D
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: STANDARD TRIP- CLASS 20
• Reset Type: MANUAL
• Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
• Catalog Number: A9.25
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901585411
• GTIN: 00785901585411
• Motor FLA: 7.00 to 7.67 Ampere (1 Thermal Unit), 6.76 to 7 Ampere (2 Thermal Unit), 6.35 to 6.95 Ampere (3 Thermal Unit)
• Mounting: Plug-In
• Used On: AC Magnetic Starter
• Thermal Overload Type: melting alloy
• Range Of Product: A
• Motor Tripping Class: 20
• IGCC: 5364
• For Use With: Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Full Load Amps: 6.42 to 6.79
• Sensing Method: Melting Alloy
• Part Number #: A9.25
• Full Load Current: 5.63 to 7.67, 5.63 to 7.67 A
• Amperage: 5.85-7.21
• Protection: Thermal
• Part Number: A9.25
• Batteries Included?: No
• Batteries Required?: No
