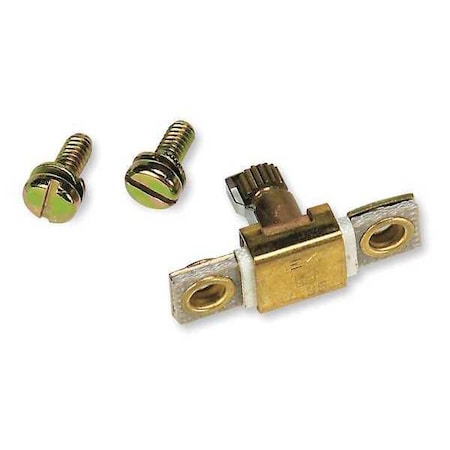

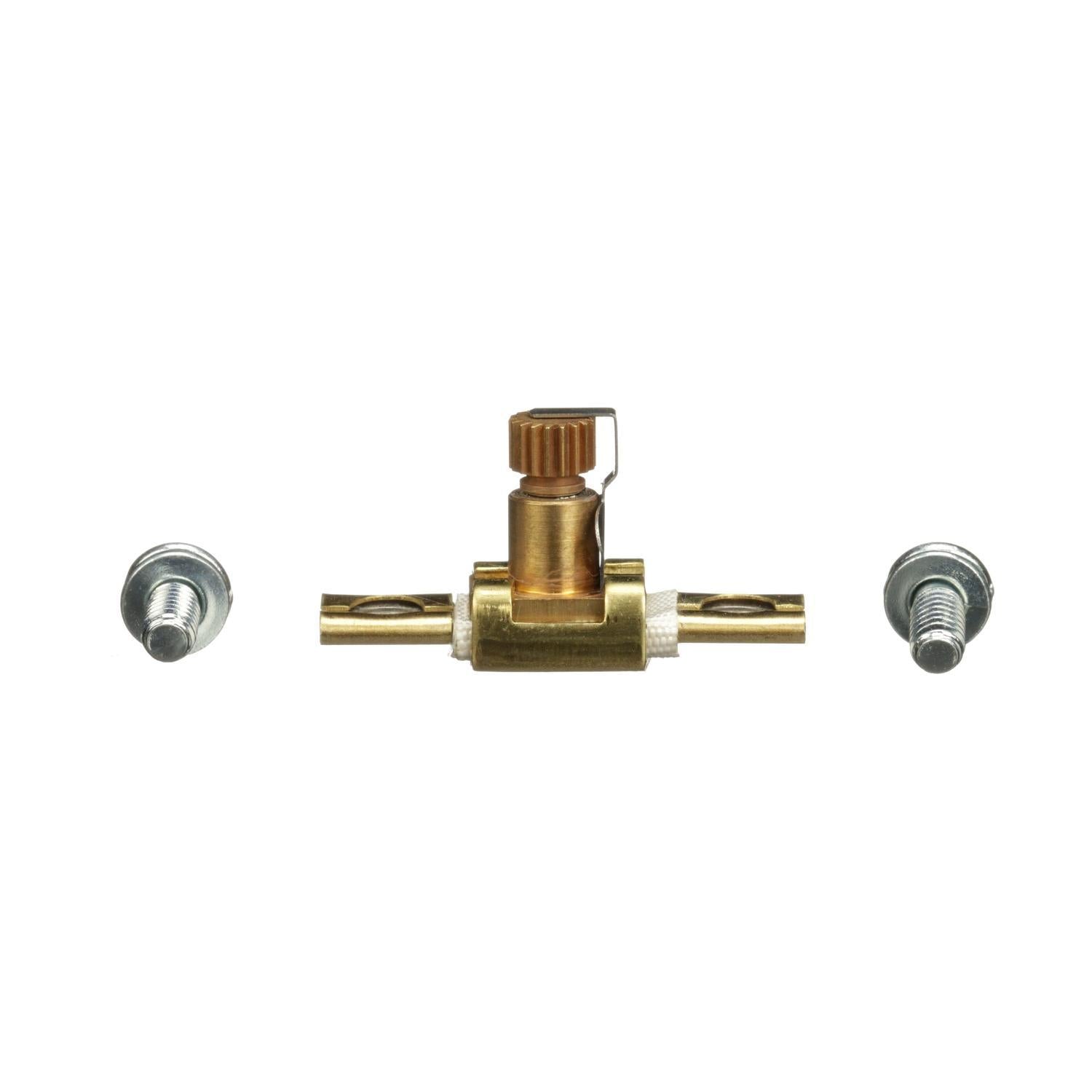

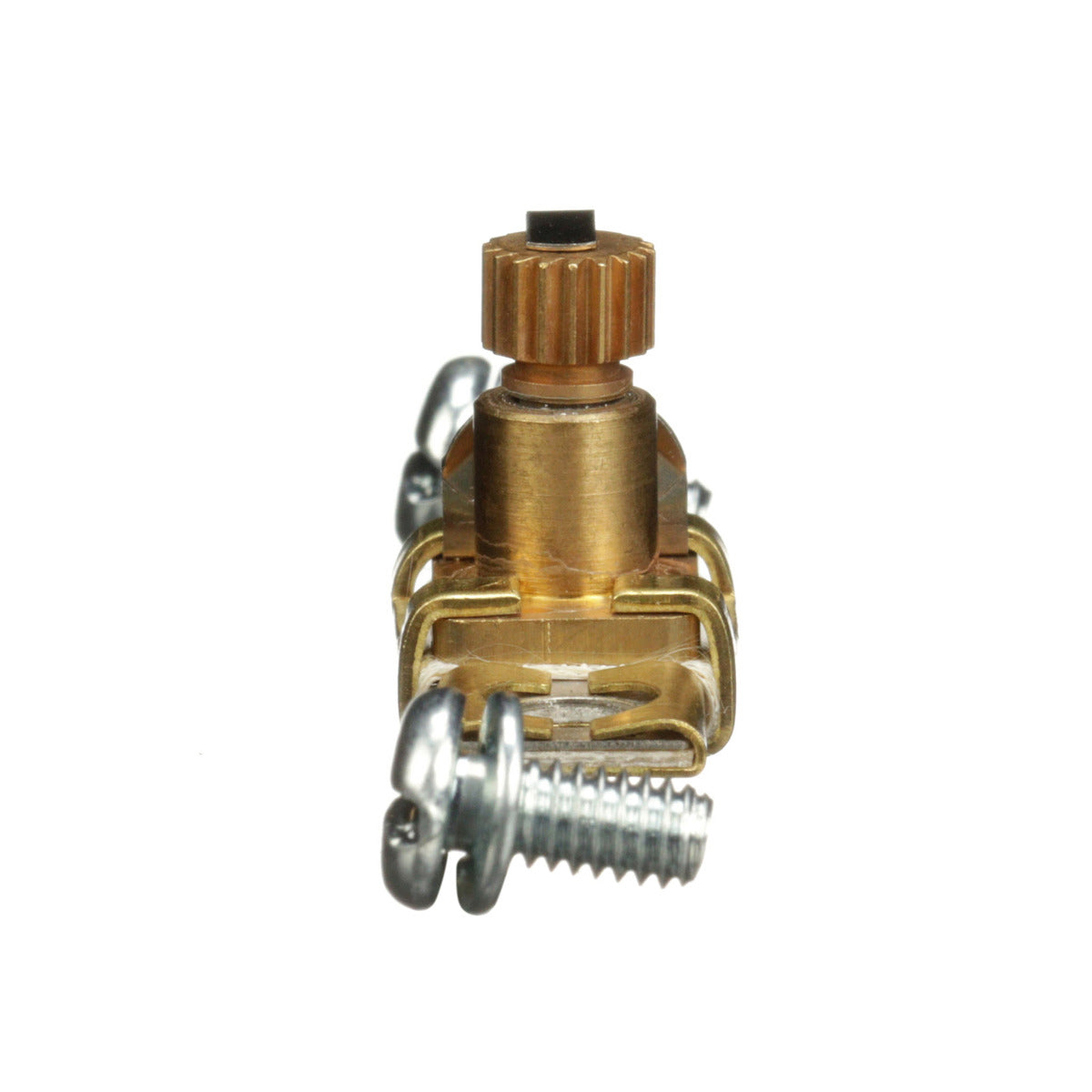

Square D A1.39 thermal unit 1.1 to 1.37 A

Product Description

The Square D A1.39 thermal unit protects motors, controllers, and branch circuit conductors against excessive heating from prolonged motor over currents, including locked rotor currents. Class 20 thermal units respond to overload current conditions according to trip curves, tripping in 20 seconds or less. The motor current passes through a small heater winding, and under overload conditions, heat melts a special solder, opening the control circuit contacts.

• Protects motors, controllers, and branch circuit conductors
• Responds to overload current conditions according to trip curves
• Trips in 20 seconds or less on overload conditions

Product Highlights

Protects motors from overheating with melting alloy. It is for use with Square D motor starters and thermal overload relays.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: A1.39
• Country of Origin: Mexico

Technical Specifications

• Type: THERMAL - MELTING ALLOY THERMAL UNIT
• Brand: Square D
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: Class 20/Standard
• Reset Type: MANUAL
• Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
• Catalog Number: A1.39
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901585206
• GTIN: 00785901585206
• Motor FLA: 1.24 to 1.37 Ampere (1 Thermal Unit), 1.19 to 1.32 Ampere (2 Thermal Unit), 1.10 to 1.21 Ampere (3 Thermal Unit)
• Mounting: Plug-In
• Used On: AC Magnetic Starter
• Item: Thermal Unit
• For Use With: Square D Motor Starters, Thermal Overload Relays
• Product Type: Thermal Unit
• Full Load Amps: 1.17 to 1.29
• Sensing Method: Melting Alloy
• Motor Tripping Class: 20
• Thermal Overload Type: melting alloy
• Full Load Current: 1.1 to 1.37, 1.1 to 1.37 A
• UNSPSC: 39122330
