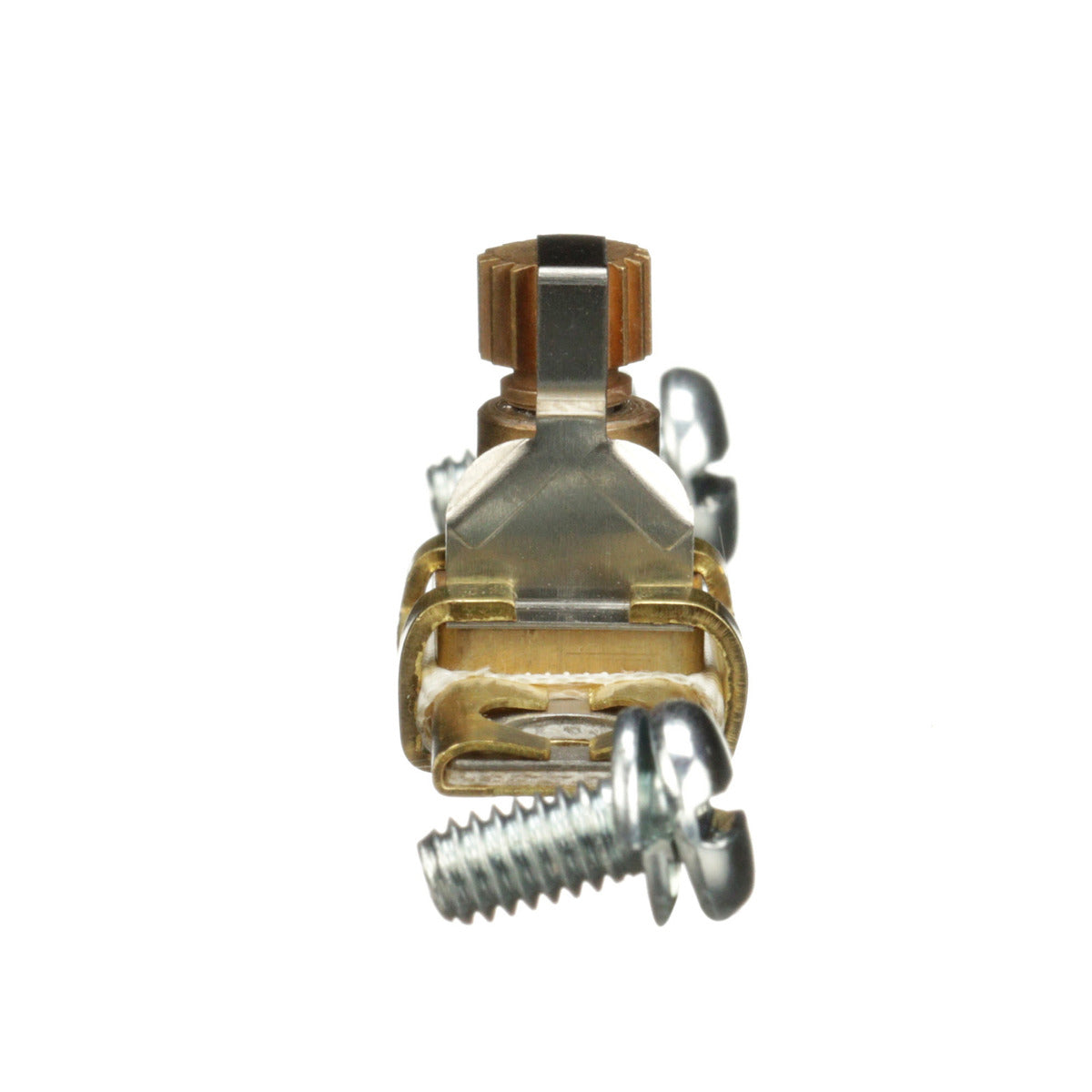

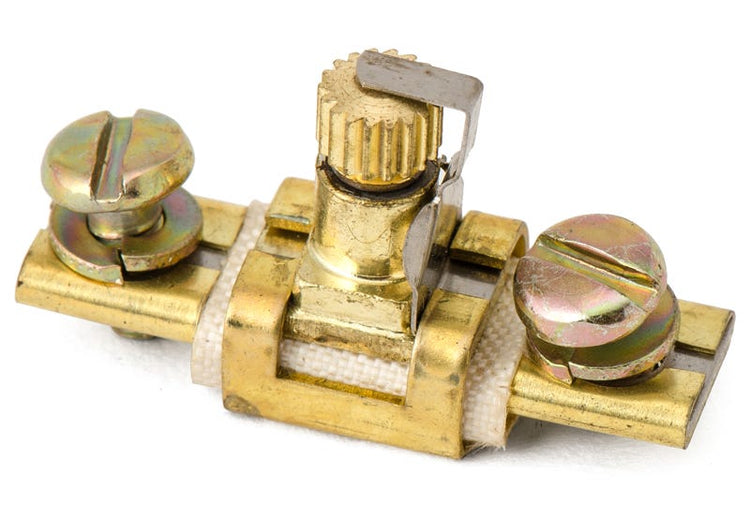

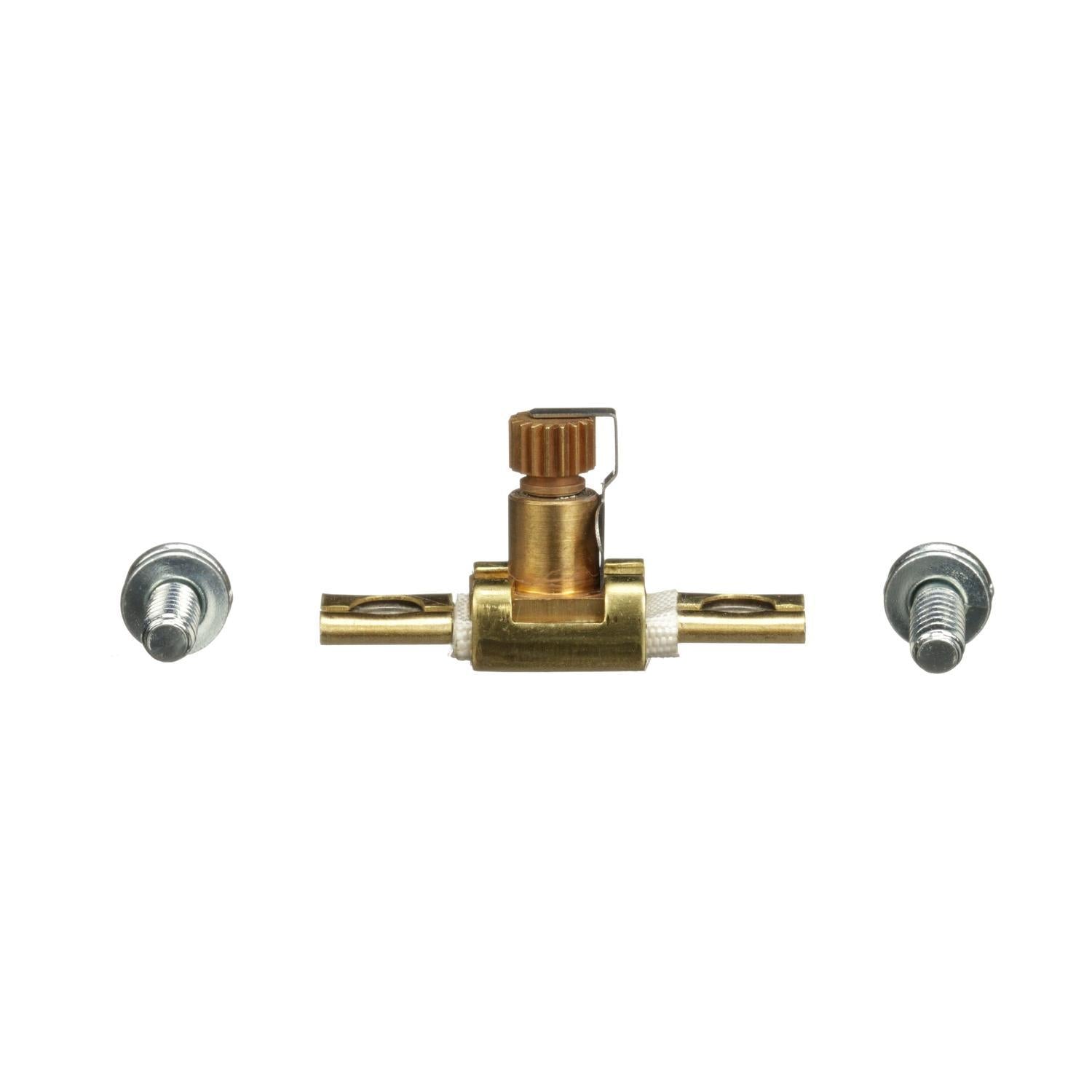

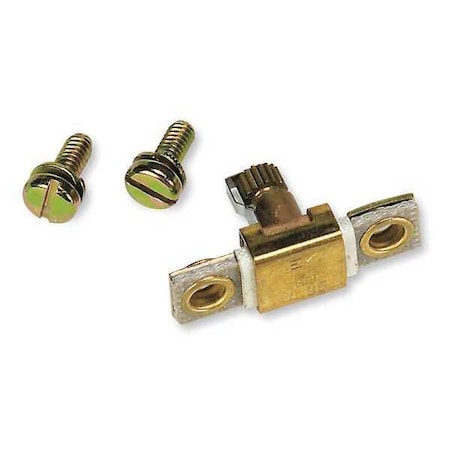

Square D A1.02 Thermal Unit

Product Description

The Square D A1.02 thermal unit protects motors, controllers, and branch circuit conductors against excessive heating due to prolonged motor over currents. These Class 20 thermal units respond to overload current conditions according to trip curves and trip in 20 seconds or less on overload conditions. It has a one piece construction.

• Protects motors, controllers, and branch circuit conductors
• Protects against excessive heating due to prolonged motor over currents
• Class 20 thermal units
• Trips in 20 seconds or less on overload conditions
• One piece construction

Product Highlights

Protects motors from overheating with Class 20 thermal units that trip quickly under overload conditions. One piece construction.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: A1.02
• Country of Origin: Mexico

Technical Specifications

• Type: THERMAL - MELTING ALLOY THERMAL UNIT
• Brand: SQUARE D
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: Class 20, Standard
• Reset Type: MANUAL
• Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
• Catalog Number: A1.02
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901585176
• GTIN: 00785901585176
• Mounting: Plug-In
• Motor FLA: 0.92 to 1.01 Ampere (1 Thermal Unit), 0.89 to 0.97 Ampere (2 Thermal Unit), 0.81 to 0.89 Ampere (3 Thermal Unit)
• Used On: AC Magnetic Starter
• Standard Package: 6
• Full Load Amps: 0.86 to 0.96
• Sensing Method: Melting Alloy
• Motor Tripping Class: 20
• Thermal Overload Type: melting alloy
• Series: A
• Amperage: 0.84-0.96
• Protection: Thermal
• For Use With: Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Mpn: A1.02
• Voltage Rating: 600 V AC
• Mounting Type: Plug-In
• Temperature Rating: 40 deg C
