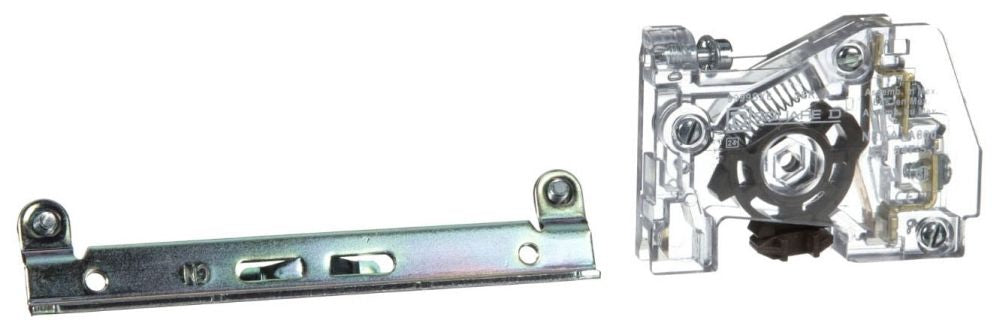

Square D 9999SX6 Interlock Kit

Product Description

The Square D 9999SX6 is an Interlock Kit designed for use with contactors and starters. It is compatible with Class 8502, 8536, and 8736 types. This auxiliary contact kit features a one Normally Open (1NO) contact configuration and operates at a maximum rating of six hundred volts AC and ten amps. It utilizes a screw clamp terminal type and can accommodate NEMA sizes zero to seven. The kit allows for left or right mounting, ensuring versatile installation options.

• Compatible with Class 8502/8536/8736
• One Normally Open (1NO) contact configuration
• Max contact rating of 600 Volt AC, 10 Amp

Product Highlights

This kit provides essential auxiliary contacts for controlling electrical motors and devices.

Product Information

Standard Information

• Manufacturer: Square D
• Sub-Category: Auxiliary Contact Kit

Technical Specifications

• Contact Configuration: 1NO
• Contact Rating: 600 Volt AC, 10 Amp
• NEMA Size: 00 to 7
• Mounting Location: Left/Right
• Terminal Type: Screw Clamp
• UPC: 78590173330
