Square D 9999SP2R 2/3-Pole 120 VAC 30 Amp NEMA 1 Red Contactor/Starter Pilot Light Kit

Product Description

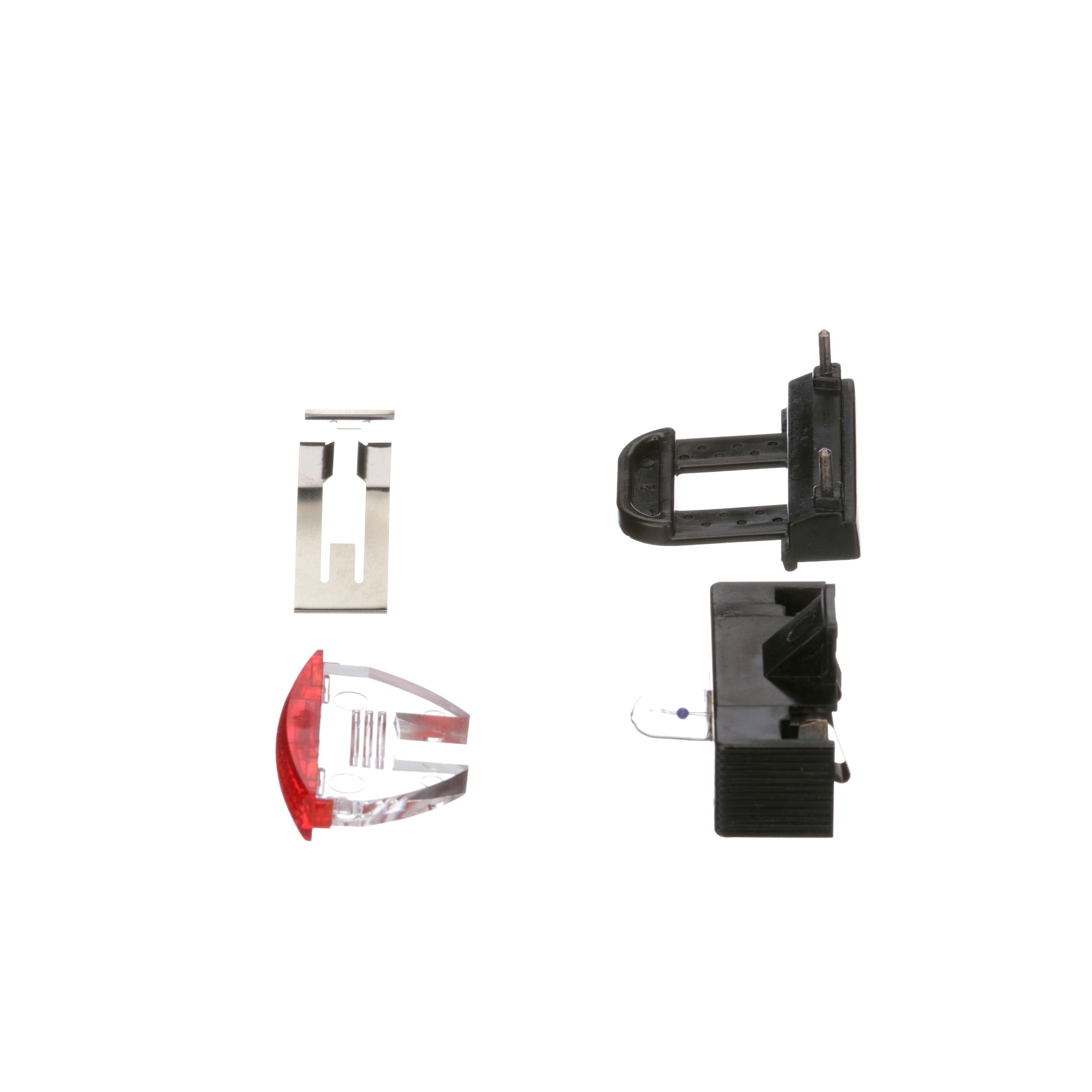

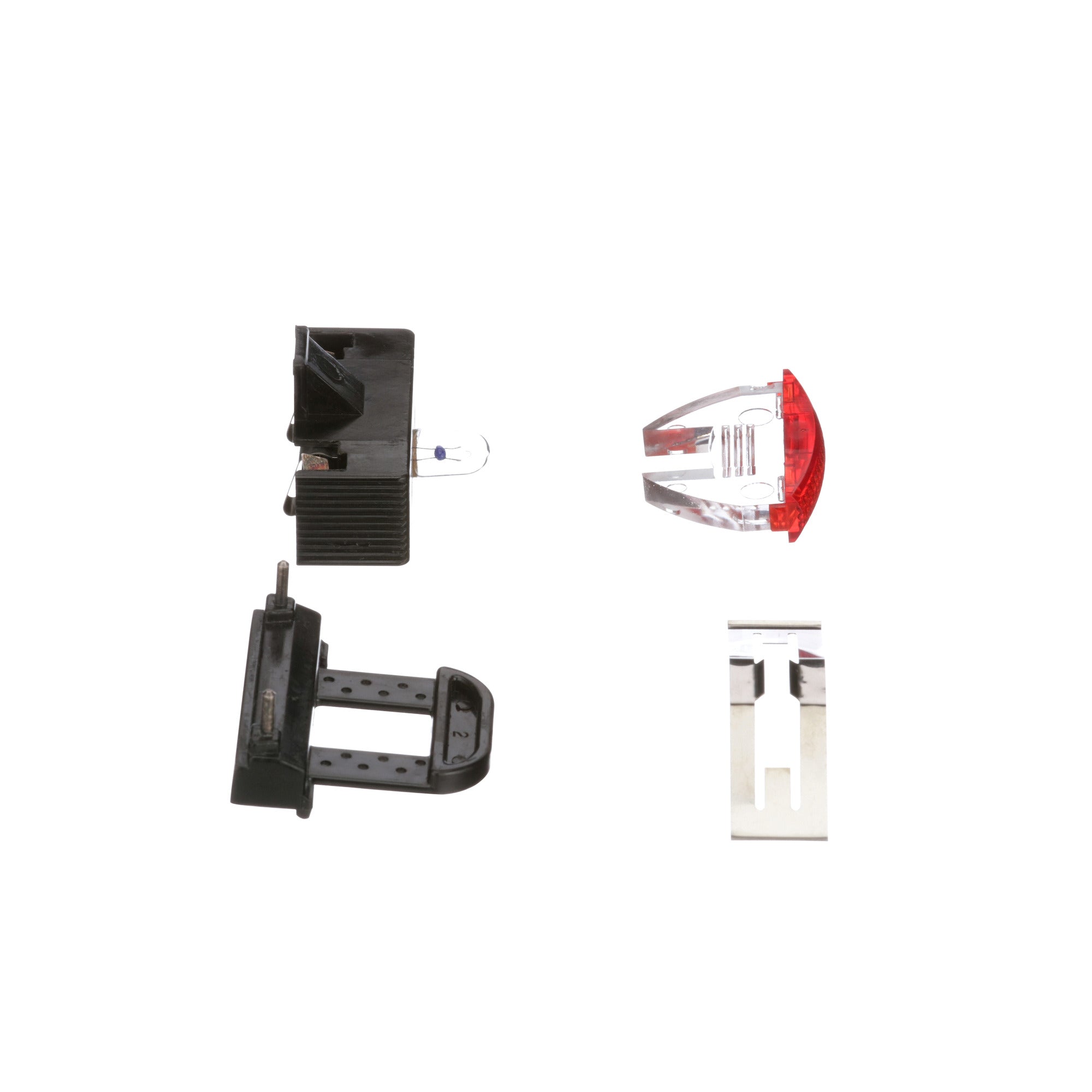

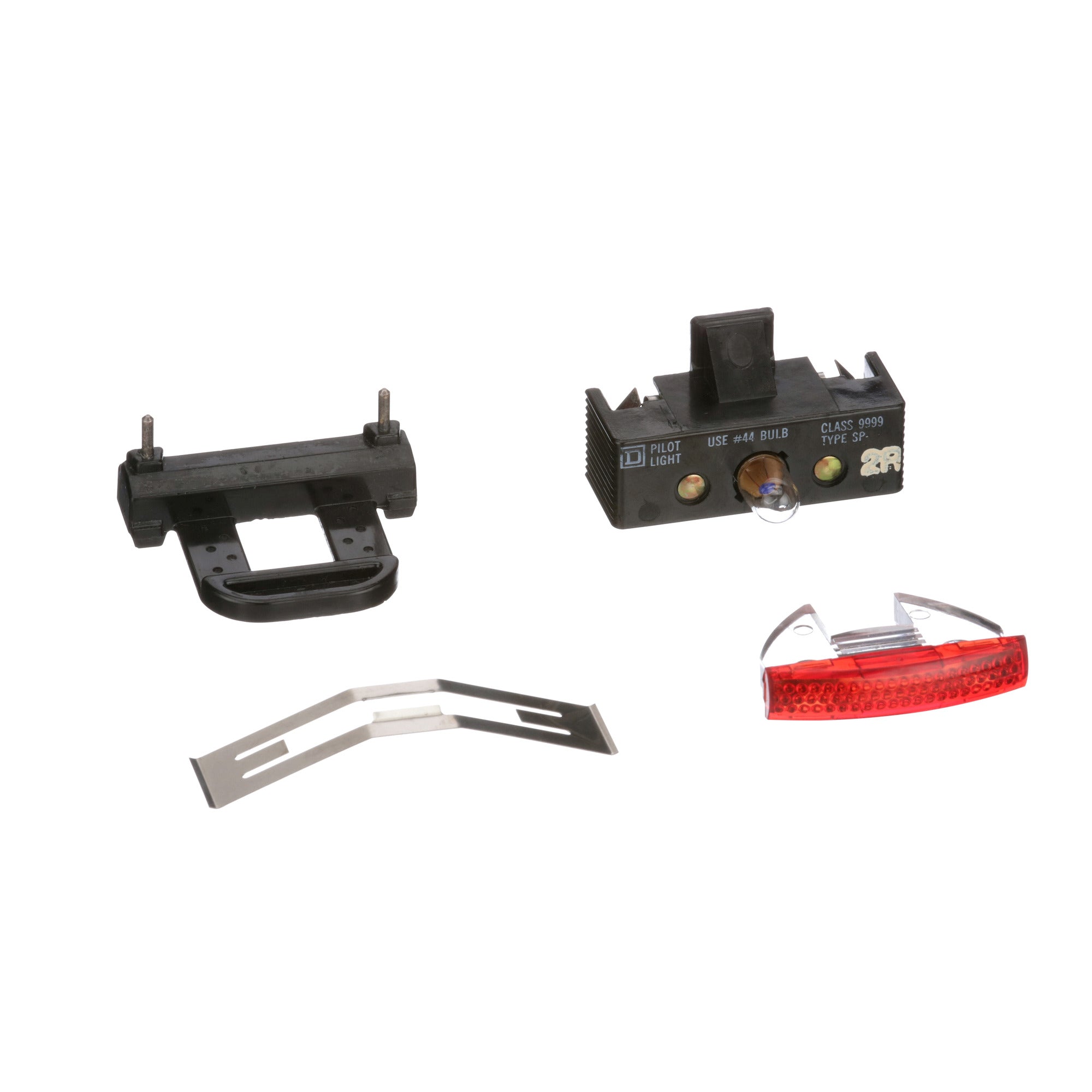

The Square D 9999SP2R is a pilot light kit designed for motor control applications. This kit is compatible with NEMA size 00, 0, 1, and 1P Type S contactors and starters. It operates within a voltage range of six to six hundred volts. The unit features a red and green lens and is designed for mounting on Type S devices. The lens fits into a knockout in the cover of the enclosure. This product is UL listed and CSA certified for safety.

• Compatible with NEMA size 00, 0, 1, and 1P Type S contactors and starters.
• Operates from six to six hundred volts for versatile use.
• Includes red and green lenses for visual indication.

Product Highlights

Efficient for both motor control and lighting applications. Easy installation with secure mounting options.

Product Information

Standard Information

• Catalog Number: 9999SP2R
• Brand: Square D

Technical Specifications

• Manufacturer: Schneider Electric
• Warranty Length: 18 months
• Country of Origin: Mexico
• Coil Voltage: Dependent on starter
• Signalling Colour: Red/Green
• Applications: Field installation of pilot light on NEMA 1 enclosures
• Certification: CSA, UL Listed
• GTIN: 00785901867319
