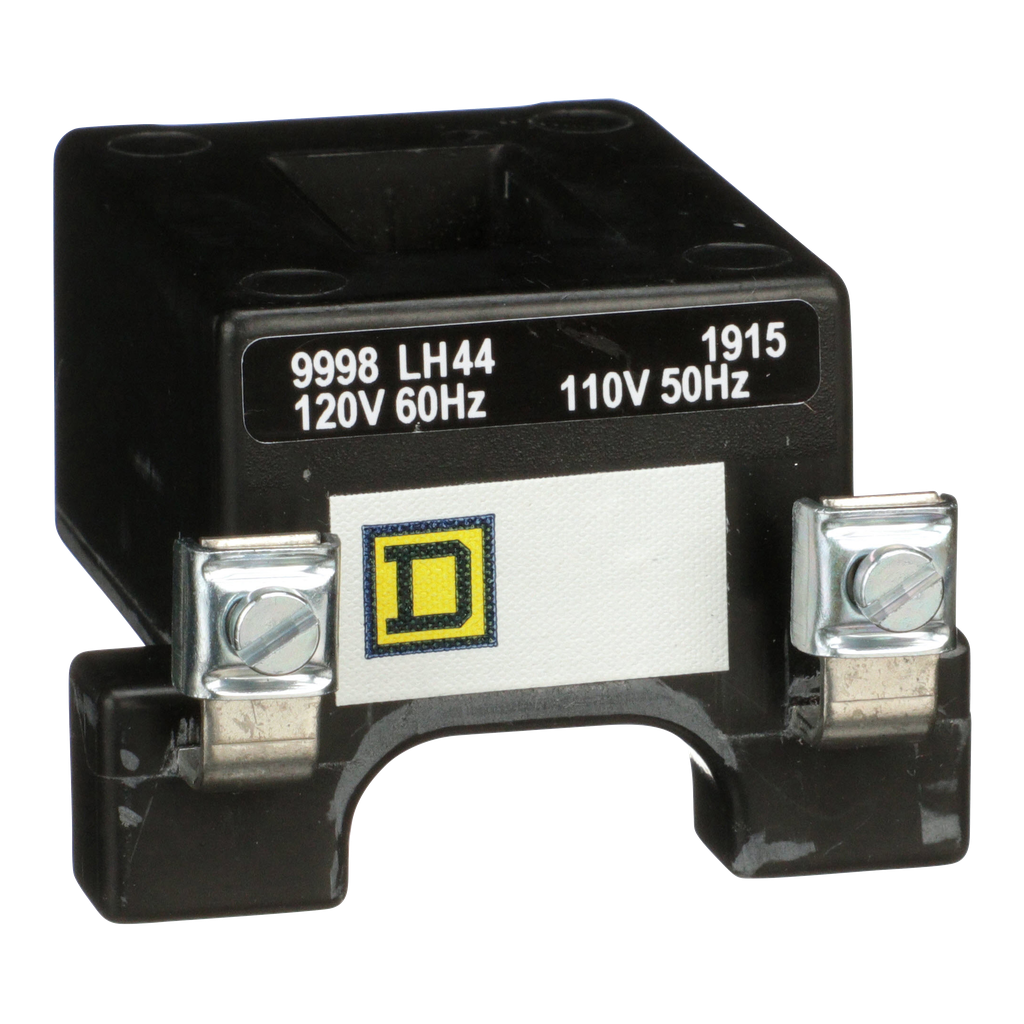

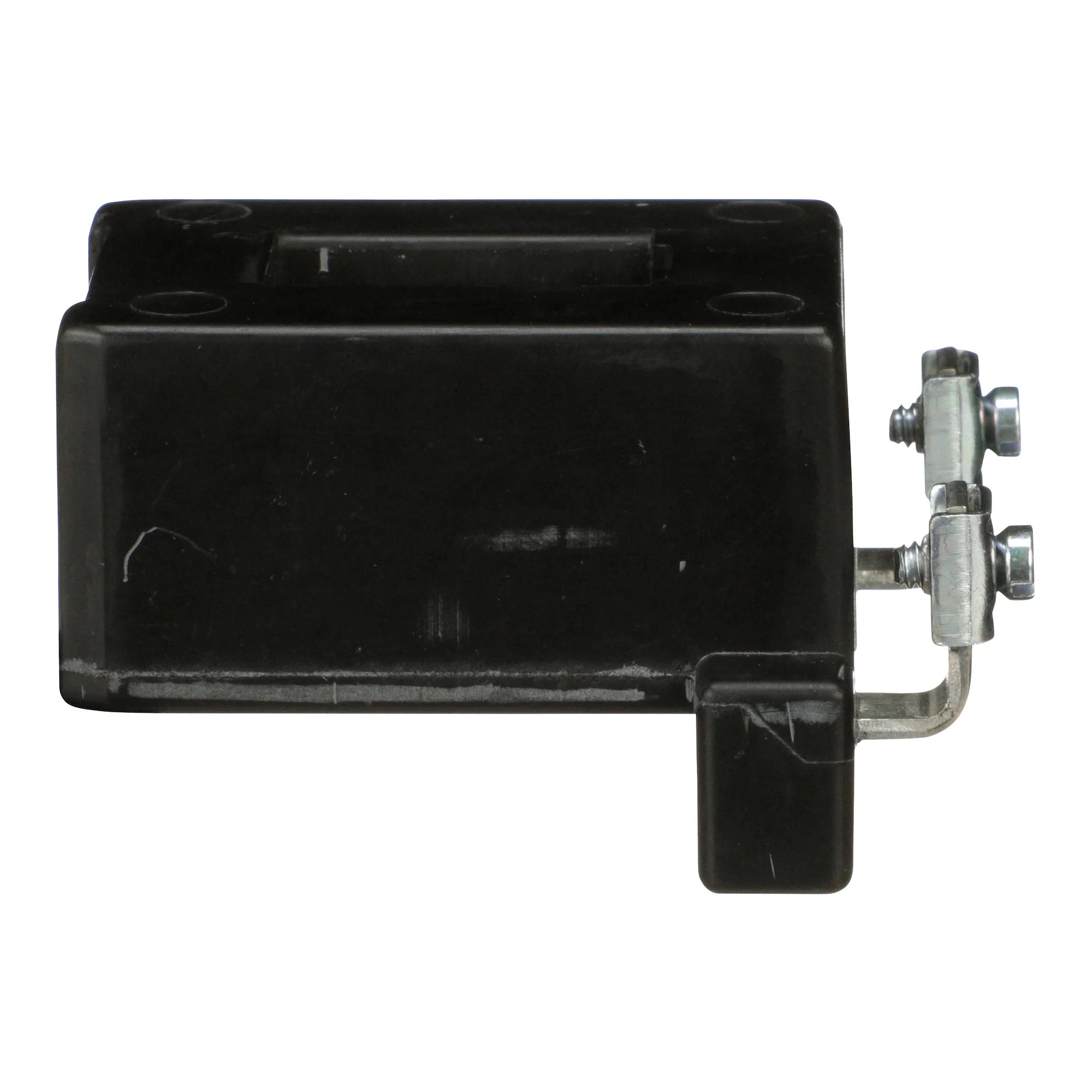

Square D 9998LH44 120 Volt 60 Hz Contactor AC Coil

Product Description

Square D 9998LH44 is a coil designed for use with 8903L and 8930LX multipole lighting contactors. These contactors enable efficient control of lighting loads, with the capability to switch up to thirty amperes for fluorescent and twenty amperes for tungsten lighting. The coil can be replaced separately, providing a cost-effective solution if the original coil fails, rather than replacing the entire contactor.

• Coil rated for 110/120 VAC at 50/60 Hz
• Average power consumption of thirty-five VA
• Compact dimensions: height of two point thirty-eight inches, width of two point eleven inches, depth of one point forty-six inches

Product Highlights

Reliable for lighting control applications and fully encapsulated for protection against environmental factors.

Product Information

Standard Information

• Catalog Number: 9998LH44
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 110/120 VAC
• Power Consumption: 35 VA
• Height: 2.38 inches
• Width: 2.11 inches
• Depth: 1.46 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
• GTIN: 00785901081289
