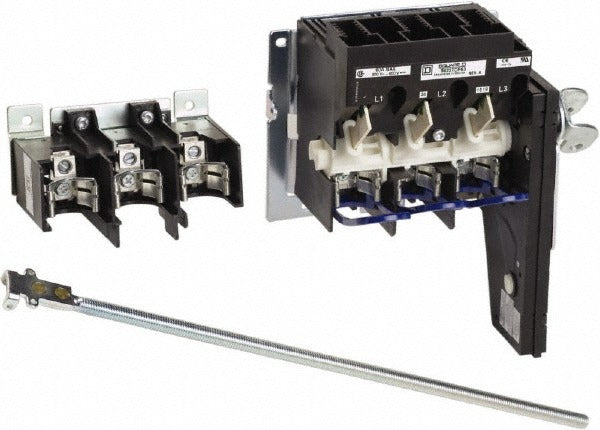

Square D 9422TDF63 Cam Disconnect Switch 60A 600VAC

Product Description

The SQUARE D 9422TDF63 is a fused cam disconnect switch rated for 60 amps at 600 volts AC, designed for three-phase power distribution and isolation applications. This is an open-style enclosure unit with three poles and three wires, built to provide a safe, visible means of disconnecting load circuits in commercial and industrial electrical systems. At 15 horsepower at 208 volts single phase, it handles demanding motor load applications. Mounting hardware is included. The switch meets UL, CSA, and Class 3211 07 standards, making it a code-compliant choice for licensed electricians working on panel-fed disconnect installations.

The 9422TDF63 is suited for commercial and light industrial environments where a reliable fusible disconnect is required upstream of motors, HVAC equipment, or other high-draw loads. The open enclosure style is appropriate for installations inside existing enclosures or panels that already provide environmental protection. With NEMA ratings covering 1, 12, 3R, 4, and 4X configurations, this switch supports a wide range of installation environments when housed appropriately. Electricians installing equipment in mechanical rooms, rooftop units, or industrial panels will find this a direct-fit solution for code-required disconnects.

Key Features

• Fused design provides overcurrent protection at the disconnect point
• 60 amp, 600 volt AC rating handles three-phase motor and equipment loads
• Three-pole, three-wire configuration for standard three-phase circuits
• Open enclosure style for installation within a host enclosure or panel
• NEMA ratings 1, 12, 3R, 4, and 4X for broad environmental suitability
• Includes mounting hardware for straightforward field installation
• Certified to UL File E62922 DIHS2, CSA LR44199, and Class 3211 07 standards

Compatibility

Designed as an OEM-style fused cam disconnect switch for three-phase commercial and industrial electrical systems requiring a 60 amp, 600 volt AC rated fusible disconnect.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lockout/tagout the upstream circuit before mounting or wiring this disconnect. Verify fuse sizing and type are appropriate for the connected load prior to energizing. The open enclosure requires installation within a suitable host enclosure that provides the intended NEMA-rated environmental protection.
