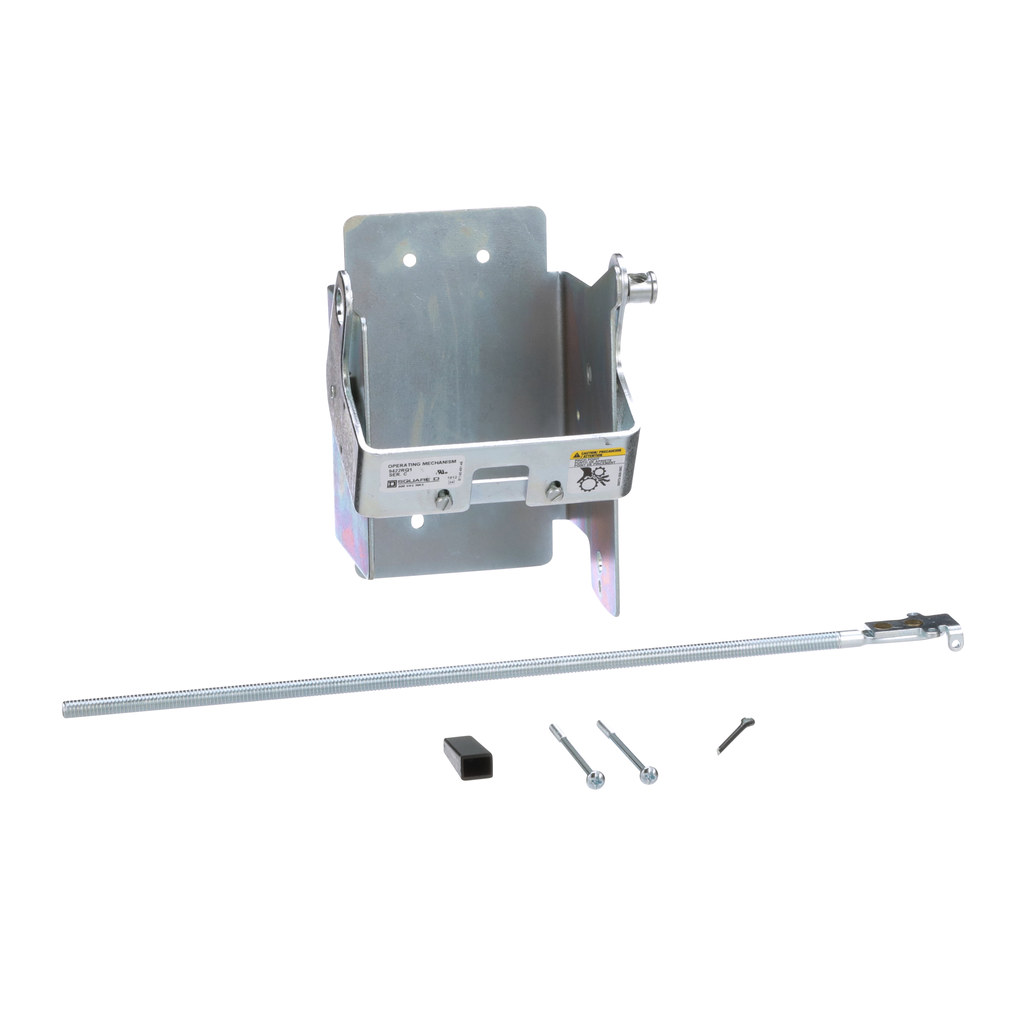

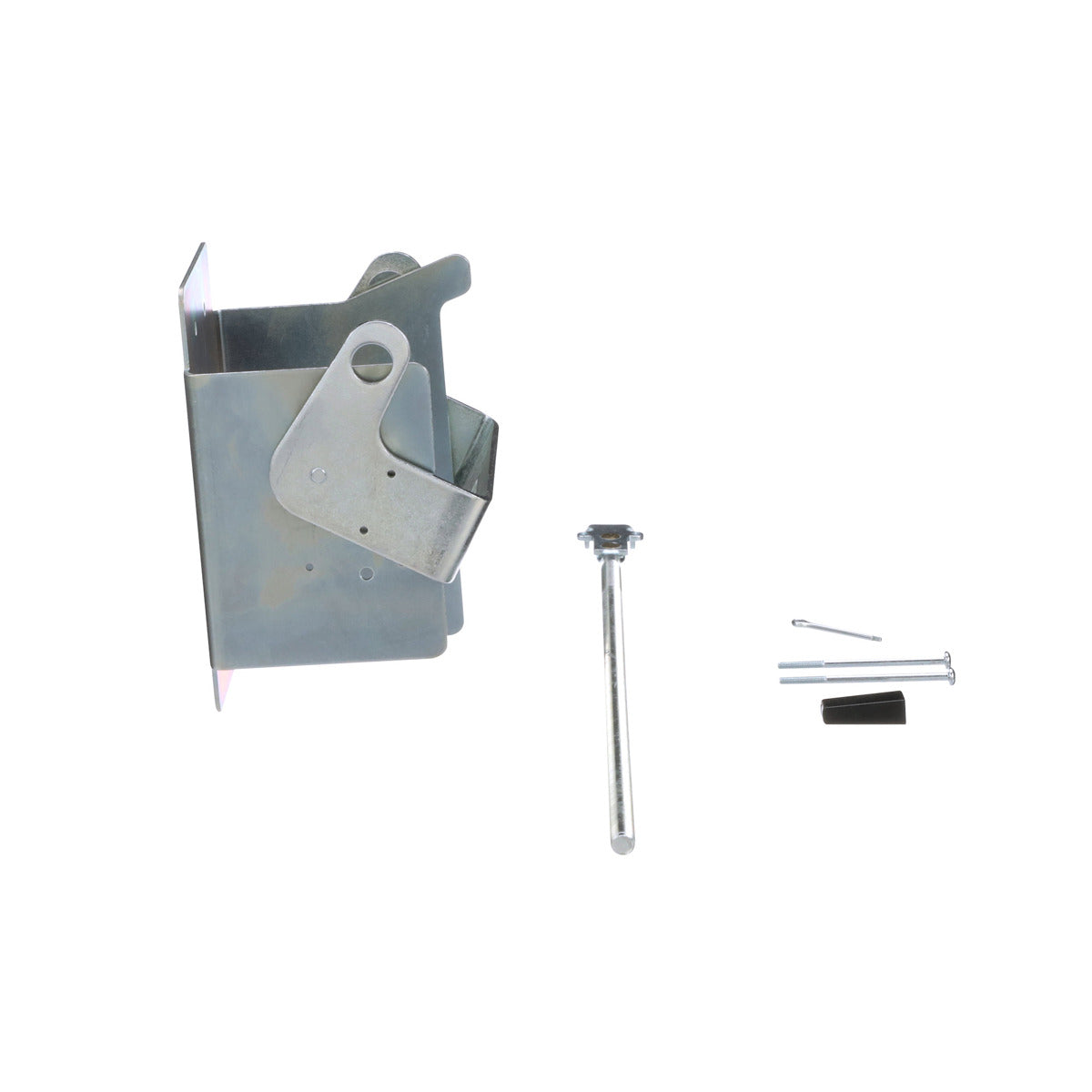

Square D 9422RQ1 IEC Variable Depth Operating Mechanism

Product Description

The Square D 9422RQ1 is a variable depth operating mechanism designed for use with Square D circuit breakers. It is ideal for installation in custom control enclosures where protective devices for main or branch circuits are necessary. This mechanism is compatible with both PowerPact H and J circuit breakers, offering flexibility for various applications.

• Variable depth mounting range from six point five one to seventeen point eight eight inches
• Supports three-pole circuit breakers with a frame size of 250 Amps
• Operates in both right or left-hand flange mounting positions

Product Highlights

The 9422RQ1 mechanism requires a separate handle mechanism, typically a model 9422A1 or 9422A2, which can be ordered separately. The operating mechanism complies with UL and CSA standards, indicating it meets rigorous safety and quality requirements.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 9422RQ1
• Catalog Number: 9422RQ1
• Frame Size: 250 A
• Mounting Type: Flange Rod Variable Depth
• Number of Poles: 3 Pole
• Actuator Type: 9422 TYPE A HANDLE (purchased separately)
• Certification: UL Component Recognized, CSA Certified
• Country of Origin: United States
