Square D 9422CLA31 Cable Operating Mechanism Handle

Product Description

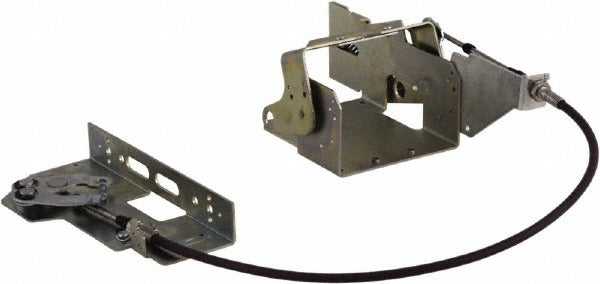

The SQUARE D 9422CLA31 is a cable operating mechanism handle designed for use with compatible Square D circuit breakers. This accessory allows remote or extended-reach operation of the breaker, enabling technicians to trip, reset, or toggle the breaker without direct access to the panel face. It is a mechanical linkage component installed in industrial and commercial electrical distribution systems. Licensed electricians performing panel work, equipment installation, or safety-compliance upgrades are the primary installers of this assembly. Weighing 12.96 pounds and measuring 19.9 inches in length, 11.4 inches in width, and 8.8 inches in height, this is a full-size mechanism built for service environments where direct breaker access is restricted.

This cable operating mechanism handle is intended for installations where circuit breaker handles must be actuated from a remote location or from outside an enclosure. It is suited for commercial and industrial electrical panels, motor control centers, and switchgear applications where LAL, LHL, or Q4L series circuit breakers are installed. Typical scenarios include equipment rooms, industrial control panels, and service entrance equipment where code or safety practice requires remote operator access to the disconnect point.

Key Features

• Compatible cable operating mechanism handle for LAL, LHL, and Q4L series circuit breakers
• Full-size assembly measuring 19.9 inches long, 11.4 inches wide, and 8.8 inches tall
• Packaged as a single unit, sold individually
• Enables remote or extended-reach breaker operation without direct panel face access
• OEM accessory type designed to integrate with the specified Square D breaker families

Compatibility

Designed for use with Square D LAL and LHL circuit breakers and the Q4L circuit breaker series, as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local electrical codes. De-energize and lock out the circuit at the source before installing or adjusting any operating mechanism hardware. Verify that the cable operating mechanism is mechanically aligned with the breaker handle travel before securing the assembly. Do not force the mechanism linkage if resistance is encountered during operation testing.
