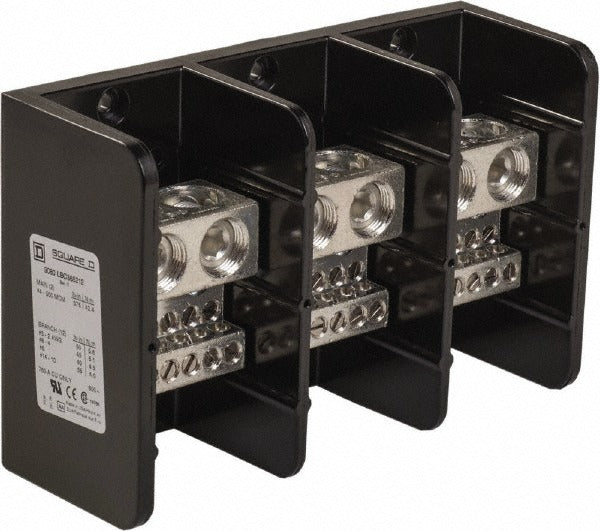

Square D 9080LBC365212 Power Distribution Block 3P 760A

Product Description

The SQUARE D 9080LBC365212 is a 3-pole phenolic power distribution block rated for 760 amps (copper) at 600 VAC. It is designed to split a single main feeder into multiple branch circuits within panelboards, motor control centers, and industrial enclosures. The block provides 3 primary connections and 12 secondary connections, giving electricians a clean, code-friendly termination point for distributing power to downstream loads. The phenolic housing provides solid insulation resistance and withstands the thermal and mechanical demands of high-amperage commercial and industrial electrical installations.

This distribution block is suited for commercial and industrial applications where a main conductor must be divided into multiple branch feeds without relying on wire nuts or bus bars. Typical installations include motor control centers, main distribution panels, switchgear assemblies, and large commercial electrical enclosures. It is installed by licensed electricians working on 600 VAC or lower distribution systems requiring organized, high-current termination solutions.

Key Features

• 760-amp copper rating supports high-current feeder distribution at up to 600 VAC
• 3 primary connections and 12 secondary connections for multi-branch circuit splitting
• 3-pole configuration handles three-phase power distribution in a single block
• Phenolic housing offers strong dielectric properties and thermal stability
• Meets CE, CSA, RoHS, and UL Listed standards for commercial and industrial use

Compatibility

Designed as an OEM-style replacement and retrofit power distribution block for commercial and industrial electrical enclosures requiring a 3-pole, 600 VAC, 760-amp copper-rated termination solution.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel or enclosure and verify absence of voltage before handling or terminating any conductors. Ensure all conductors are sized and torqued according to the conductor manufacturer specifications and the terminal ratings for the wire gauge used. Do not exceed the 760-amp copper rating or the 600 VAC voltage rating of the block.
