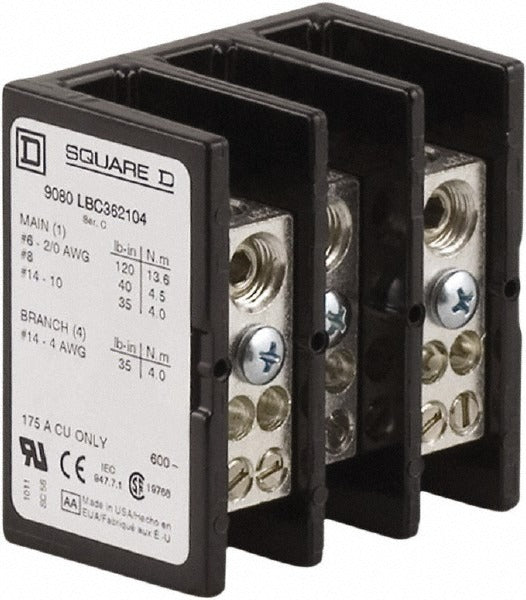

Square D 9080LBC362104 175A 3-pole Power Distribution Block

Product Description

The SQUARE D 9080LBC362104 is a three-pole phenolic power distribution block rated for 175 amps (copper) at 600 VAC. It is designed to split a single power feed into multiple branch circuits within electrical panels, wireways, and enclosures. The phenolic housing provides solid dielectric insulation, and the block ships ready for installation with one primary connection and four secondary connections. Electricians install this block in commercial and industrial power distribution applications where a compact, code-compliant branch connection point is required.

This distribution block is suited for use in residential, commercial, and light industrial electrical enclosures where a centralized termination point is needed. The single primary input accepts the main feed conductor, while the four secondary outputs distribute power to downstream branch circuits or devices. Its compact footprint at 2.7 inches long by 2.8 inches wide by 1.8 inches tall makes it practical for installation inside standard electrical enclosures and panelboards.

Key Features

• 175 amp copper conductor rating at 600 VAC for robust power distribution capacity
• Three-pole configuration handles all three phases in a single block assembly
• One primary connection and four secondary connections for branch circuit distribution
• Phenolic housing offers strong dielectric insulation and mechanical durability
• Meets CE, CSA, RoHS, and UL Listed standards for broad code compliance
• Compact dimensions simplify installation in tight enclosure spaces

Compatibility

Designed as an OEM-style replacement and new-installation distribution block for use in standard electrical enclosures, panelboards, and wireways requiring a 600 VAC rated three-pole power distribution block.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before terminating or removing conductors. Verify that conductor sizing matches the 175 amp rating and that the enclosure is rated for the installation environment. Do not exceed the published voltage or amperage ratings of the block.
