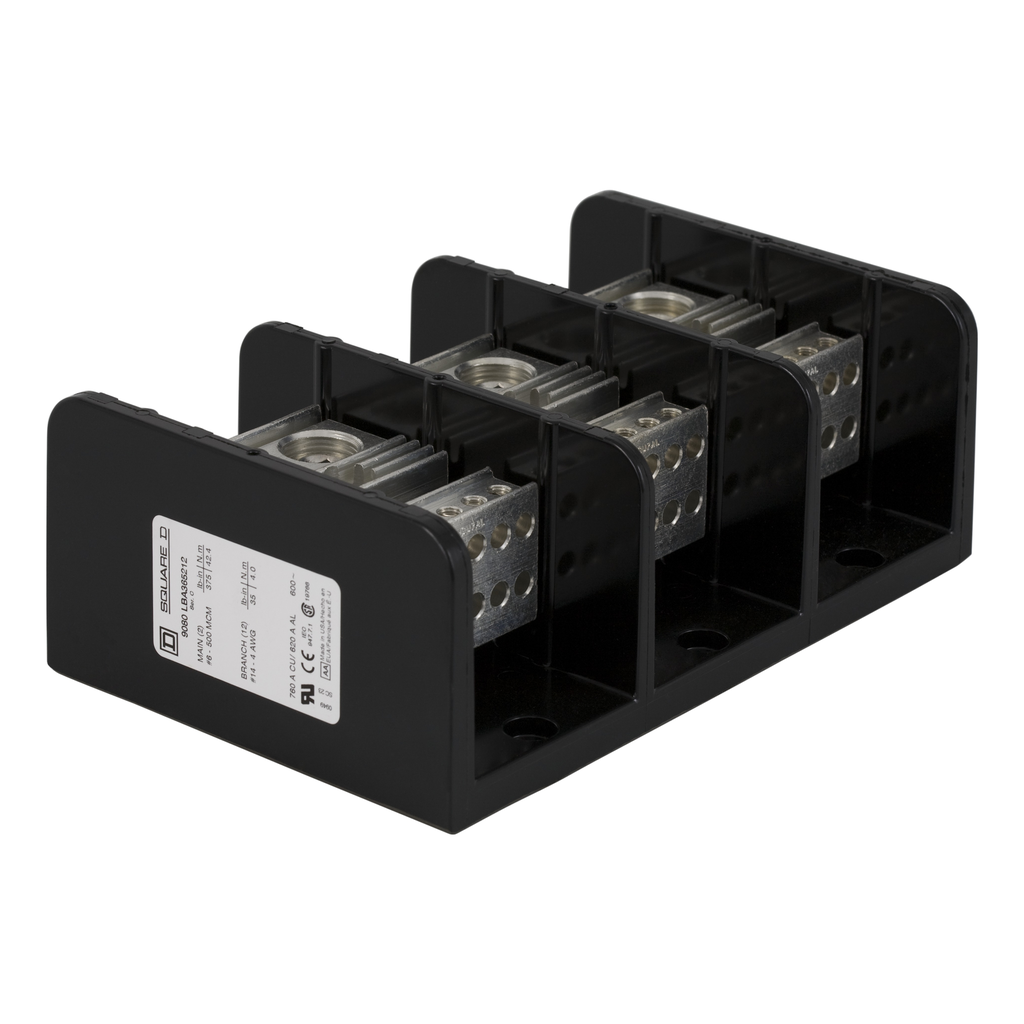

Square D 9080LBA365212 Power Distribution Block 760 Amp 600 Volt 3 Pole

Product Description

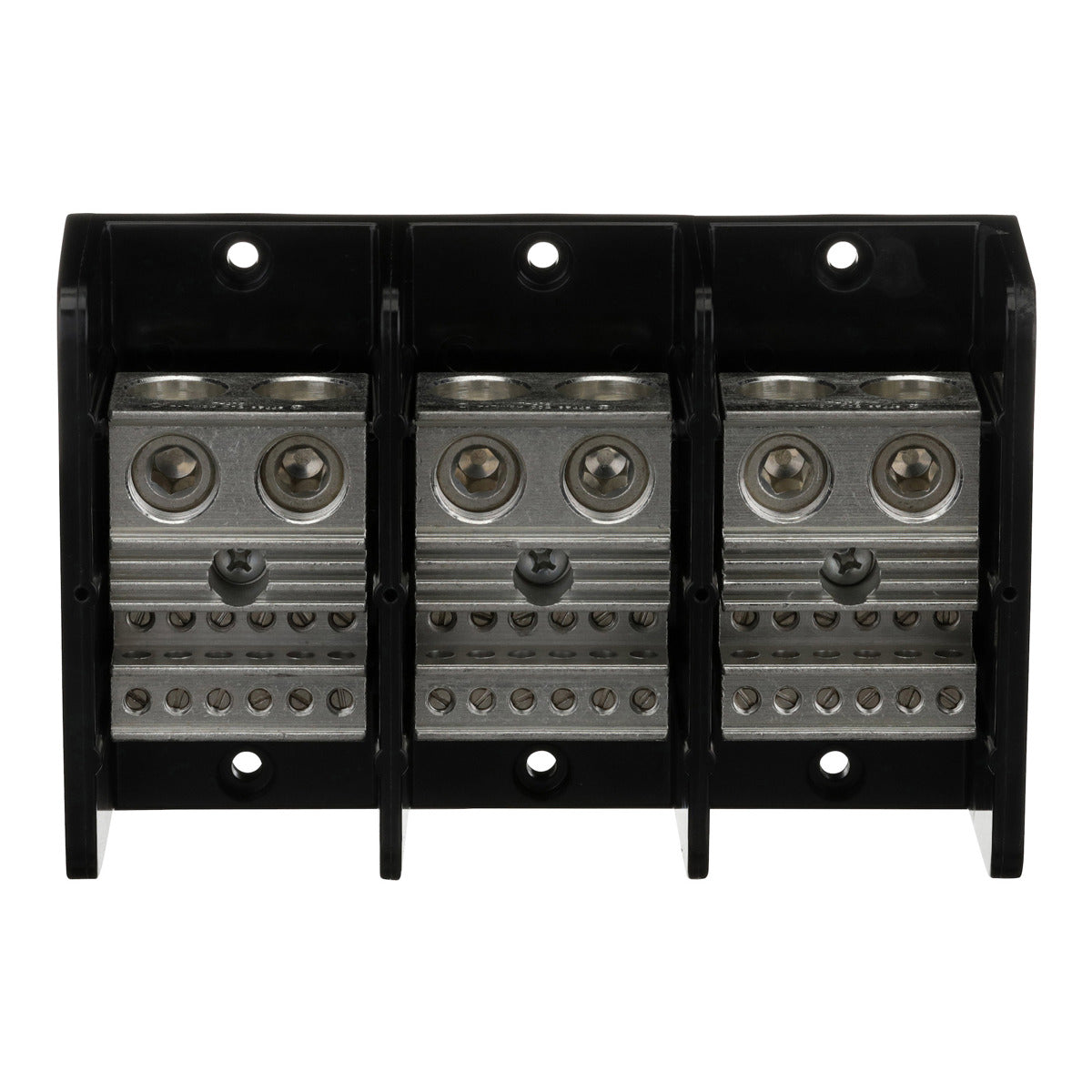

The Square D 9080LBA365212 is a power distribution block explicitly designed to meet NEMA standards. It functions effectively for wire termination and is capable of handling high current loads. This three-pole block features two lug openings for line connections and twelve openings for load connections. The line side accommodates one copper or aluminum wire ranging from six AWG to five hundred kcmil, while the load side accepts wire sizes from fourteen AWG to four AWG.

• Rated for 760 amperes with copper wire and 620 amperes with aluminum wire.
• Constructed from durable phenolic material.
• UL recognized and CSA certified for safety and reliability.

Product Highlights

This power distribution block offers excellent connectivity solutions for electrical systems, making it ideal for professionals working with power distribution in commercial and industrial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA365212
• Voltage: 600 Volt
• Current: 620 Amp (Aluminum), 760 Amp (Copper)
• Number of Poles: 3 Pole
• Material: Phenolic
• Operating Temperature: -40 to 302 degrees F
• Connection Type: Tin plated aluminum lugs
• Mounting Type: Surface Mount
