Square D 9080LBA365202 Power Distribution Block 620A (3 Pole) Replacement MPN

Product Description

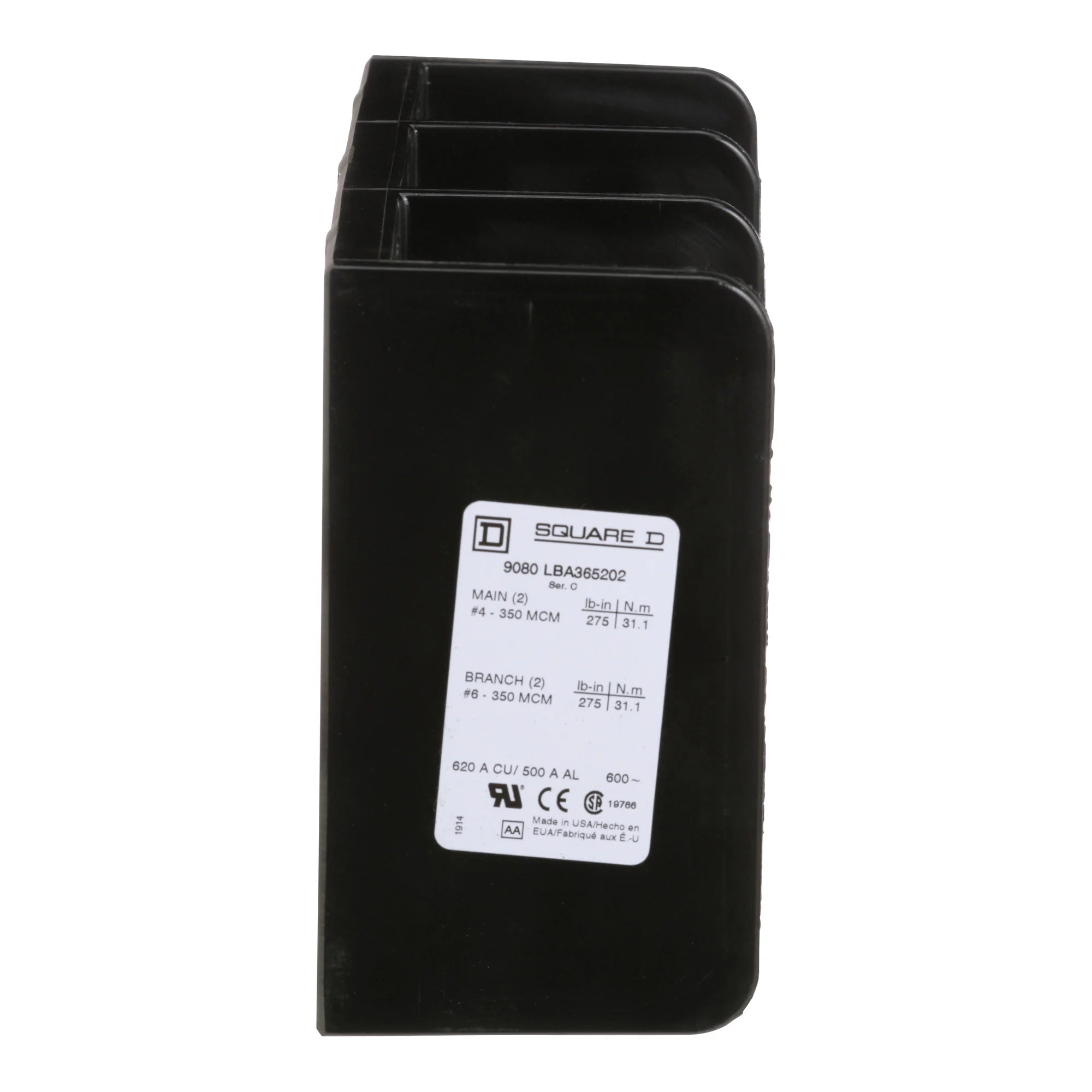

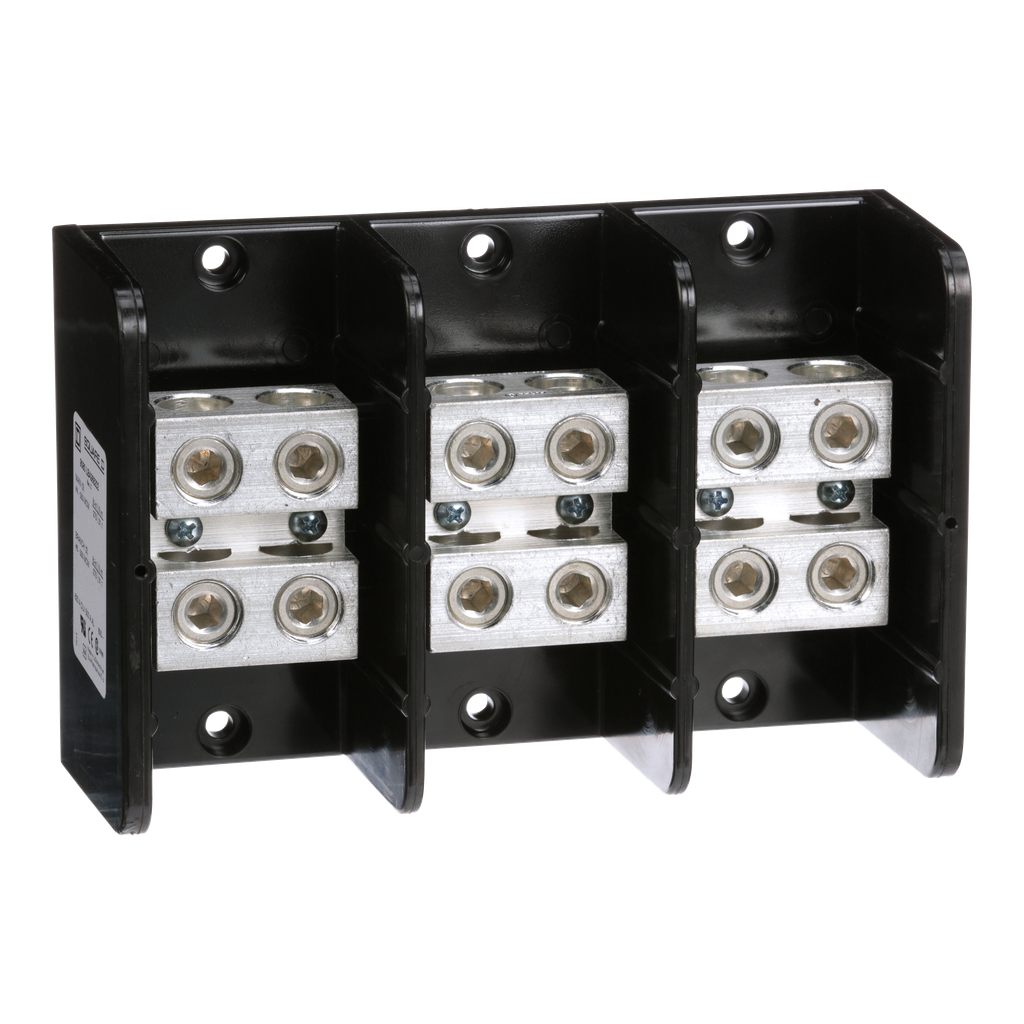

Square D 9080LBA365202 is a power distribution block for wire termination. It meets NEMA standards and features three poles. This block has two lug openings on both the line and load sides. The line side lugs can accept wire sizes from #4 to 350 kcmil for copper or aluminum. Load side lugs have the same wire size ratings. All lugs are made of aluminum, handling up to 620 amperes with copper and 500 amperes with aluminum, with a voltage rating of 600 volts. The housing is constructed from general-purpose phenolic material. This product is also UL recognized and CSA certified.

• Three pole design for efficient wire termination
• Houses two lug openings on each side for versatile connections
• Handles up to 620A with copper wire

Product Highlights

Designed for high-amperage requirements in power distribution applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA365202
• Weight: 3.09 lb
• Dimensions: 3.13 in depth, 8.54 in width, 5.5 in height
• Current Rating: 500A
• Voltage Rating: 600V
• Wire Size: #4 to 350 kcmil
• Material: Phenolic
• Mounting Type: Surface Mount
• Warranty: 18 months
• Country of Origin: USA
