Square D 9080LBA362106 Power Distribution Block 175 Amp

Product Description

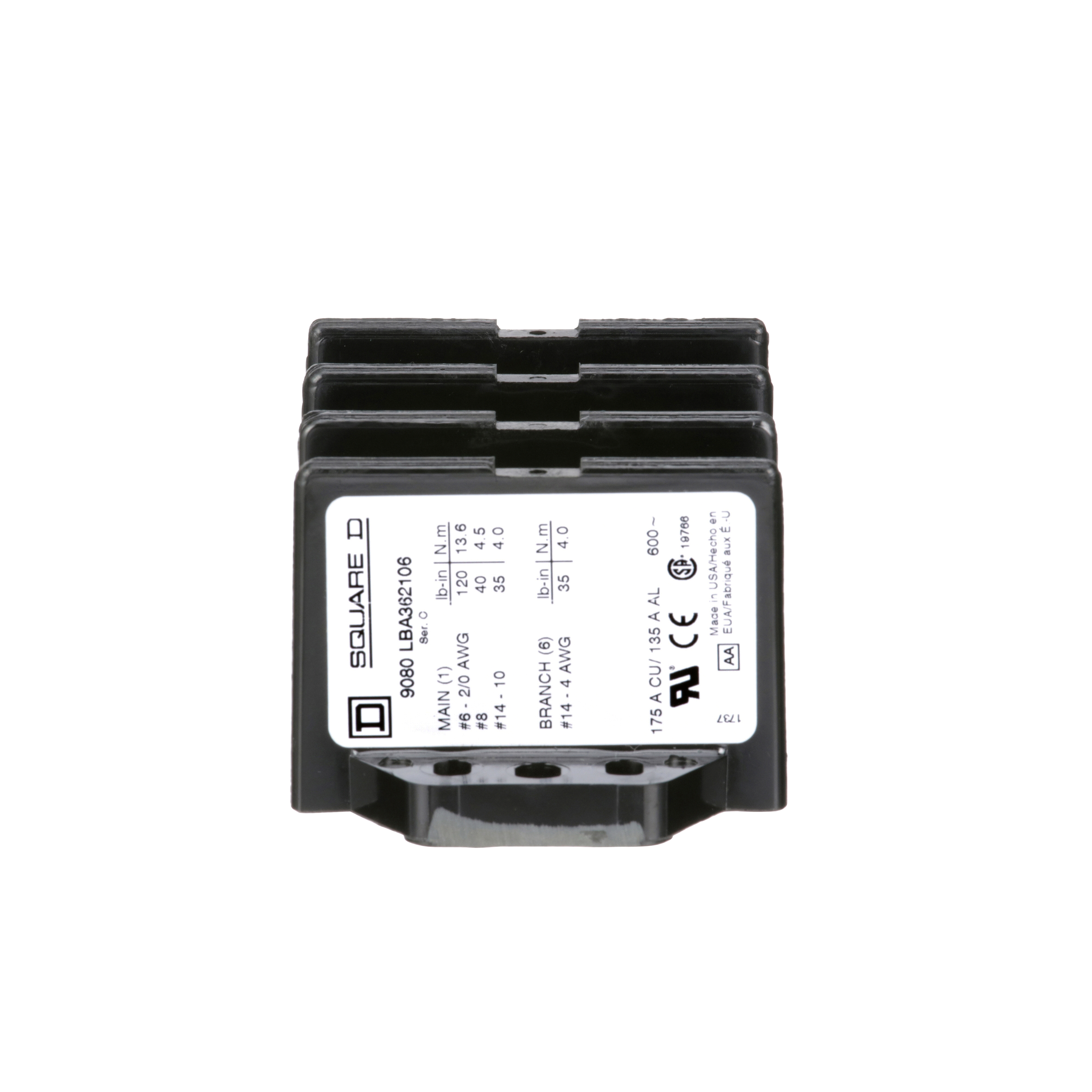

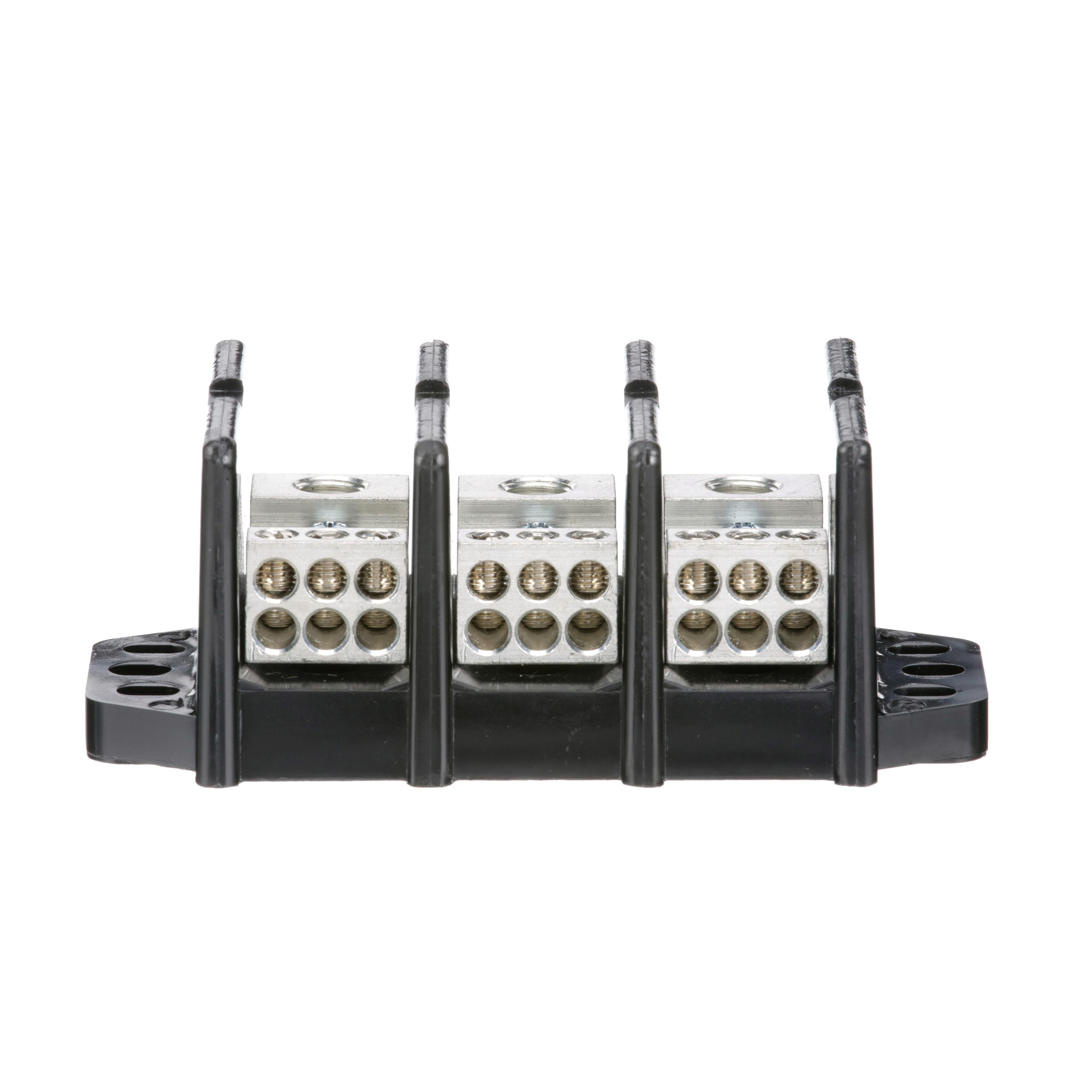

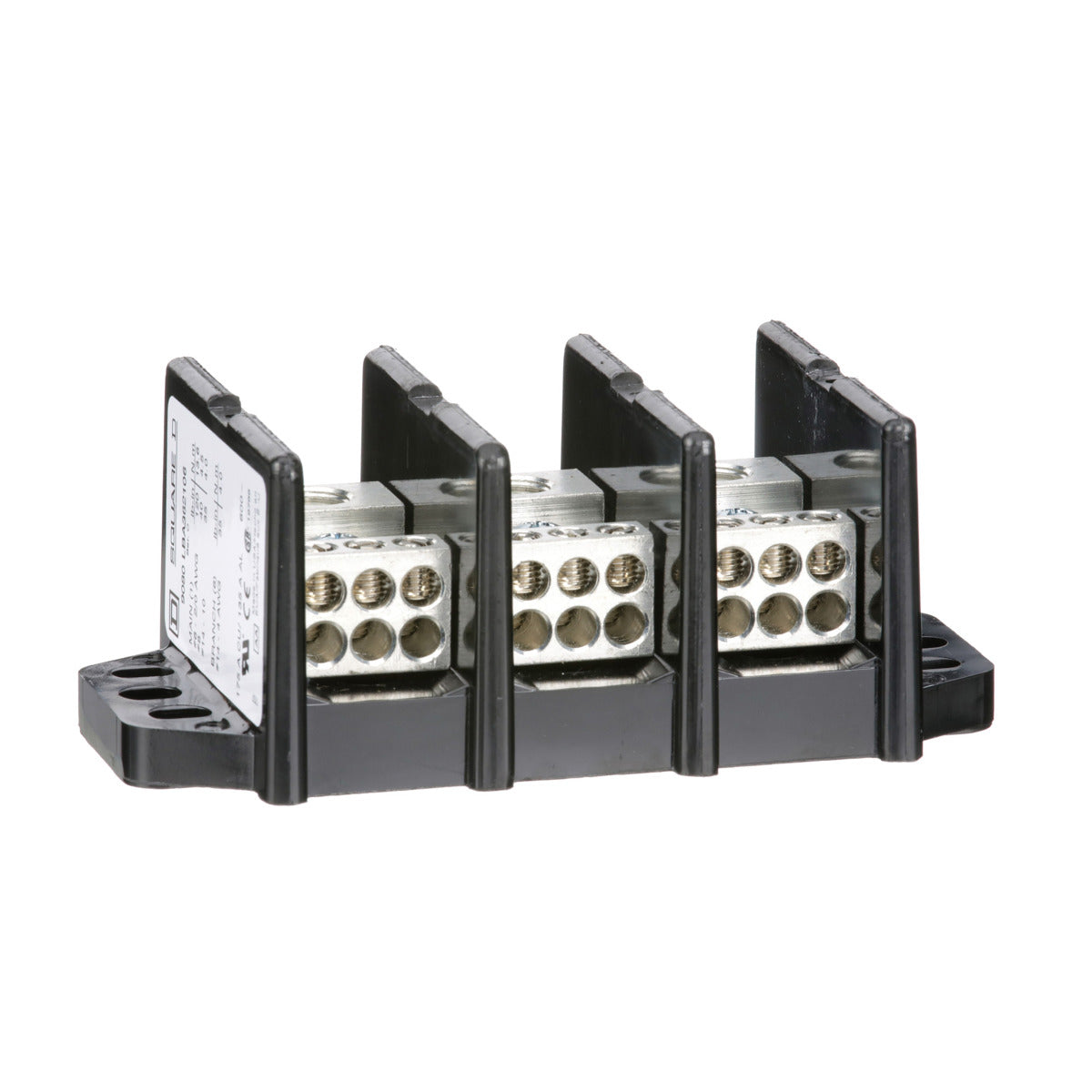

The Square D 9080LBA362106 power distribution block is for terminating wires and designed to NEMA standards. This three-pole block features one line-side lug opening and six load-side lug openings. It accepts #14 to 2/0 AWG copper or aluminum wires on the line side and #14 to #4 AWG wires on the load side. The block is rated to 600V.

• Rated for 175A with copper wire and 135A with aluminum wire
• Suitable for terminating wires and designed to NEMA standards
• UL component recognized and CSA certified

Product Highlights

This power distribution block is ideal for various power distribution applications, offering a reliable and safe solution for connecting multiple circuits.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080LBA362106
• Country of Origin: United States

Technical Specifications

• Type: POWER DISTRIBUTION BLOCK
• Brand: Square D
• Depth: 2.06 in
• Width: 5.38 in
• Height: 2.9 in
• Current Rating: 135 Ampere (Aluminum), 175 Ampere (Copper)
• Voltage Rating: 600 VAC
• Material: Phenolic
• Wire Size: (1) 14 to 2/0 AWG/(6) 14 to 4 AWG
• Product UPC: 78590113261
• 12-Digit UPC: 785901132615
• Strip Length: 0.38 in
• Mounting Type: Surface Mount
• Certifications: CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
• Conductor Size: 14-2/0 AWG/14-4 AWG
• Number of Poles: 3
• Country of Origin: USA
• Operating Temperature: -40-302 degrees F
• Short Circuit Current: 65 kA
• Number of Terminations: 1,6
• Housing Material: Phenolic
• Voltage: 600 VAC/VDC
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 6
• Line Side Wire Size Range: 14 AWG - 2/0 AWG
• Load Side Wire Range: 14 AWG - 4 AWG
• Item: Power Distribution Block
• Standards: CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
• Overall Depth: 2.06 in
• Overall Width: 5.38 in
• Overall Length: 2.9 in
• RoHS Compliant: Yes
• Maximum Voltage: 600 V AC/DC
• Number of Circuits: 3
• Primary Wire Range: 14 to 2/0 AWG
• Max. Operating Temp.: 302°F
• Min. Operating Temp.: -40°F
• Secondary Wire Range: 10 to 4 AWG
• Electrical Connection: Tin plated Aluminium Lugs
• Line Connections/Pole: 1
• Load Connections/Pole: 6
• For Conductor Material: Aluminum, Copper
• Primary Wire Range (AWG): 6 to 2/0 AWG
• Line Side Connection Type: Lug
• Secondary Wire Range (AWG): 10 to 4 AWG
• Short Circuit Current Rating: 65 kA
• Maximum Operating Temperature: 302 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Power Distribution Block Design: Open
• Maximum Current - Copper Conductor: 175 A
• For Line Copper Wire Size - Maximum: 2/0 AWG
• For Line Copper Wire Size - Minimum: 14 AWG
• For Load Copper Wire Size - Maximum: 4 AWG
• For Load Copper Wire Size - Minimum: 14 AWG
• Maximum Current - Aluminum Conductor: 135 A
• For Line Aluminum Wire Size - Maximum: 2/0 AWG
• For Line Aluminum Wire Size - Minimum: 14 AWG
• For Load Aluminum Wire Size - Maximum: 4 AWG
• For Load Aluminum Wire Size - Minimum: 14 AWG
• Number of Primary Openings per Pole: 1
• Primary Opening Wire Size: 14 to 2/0 AWG
• Number of Secondary Openings per Pole: 6
• Secondary Opening Wire Size: 14 to 4 AWG
• Connector Material: Tin Plated Aluminum
• Rated Operational Voltage: 600 V AC/DC
• Rated Service Breaking Capacit: 100 kA UL 508 A
• Short-circuit Current - Metric: 65 kA
• Poles: 3
• Amperage (with Copper Wire): 175A
• Amperage (with Aluminum Wire): 135A
• Line Side Lug Wire Size: #14 to 2/0 Copper or Aluminum
• Load Side Lug Wire Size: #14 to #4 Copper or Aluminum
• Lug Material: Aluminum
• Manufacturer Part Number: 9080LBA362106
• Series: 9080LB
• Amperage Rating: 135/175 A, 175/135
• Short Circuit: 65 kA
• UNSPSC: 39121410
