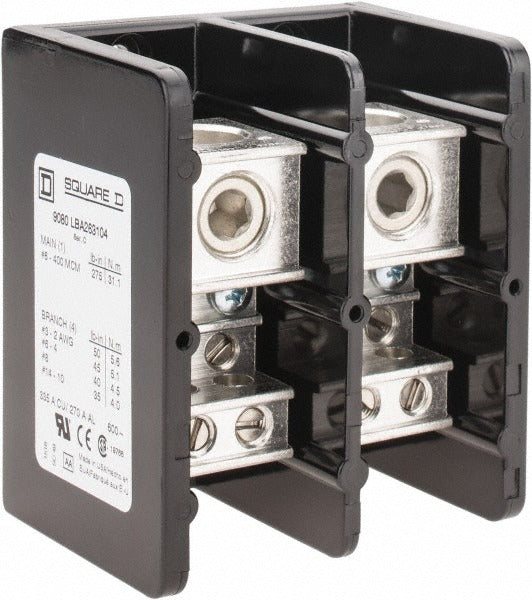

Square D 9080LBA263104 Distribution Block 2P 600V

Product Description

The SQUARE D 9080LBA263104 is a two-pole phenolic power distribution block rated for 600 VAC service. It provides a single primary connection point and four secondary connection points, making it a compact solution for branching power circuits in electrical panels, junction boxes, and distribution enclosures. The block handles up to 270 amps with aluminum conductors and 335 amps with copper conductors. Its phenolic housing offers good dielectric strength and resistance to heat and arc tracking. Licensed electricians install this type of block when consolidating feeder and branch circuit terminations in commercial and industrial electrical systems.

This distribution block is suited for commercial and industrial power distribution applications where a single incoming feed must be divided among multiple branch circuits. Typical installations include motor control centers, switchboards, panel boards, and enclosed bus tap applications. The 600 VAC rating covers standard single-phase and three-phase low-voltage distribution systems. Its compact footprint suits tight enclosure layouts where multiple terminal blocks must be arranged in a confined space.

Key Features

• Dual conductor rating: 270 amps for aluminum, 335 amps for copper
• 600 VAC rated for standard low-voltage power distribution
• 1 primary connection and 4 secondary connections for branch circuit splitting
• Phenolic housing provides dielectric strength and heat resistance
• Certified to CE, CSA, RoHS, and UL Listed standards
• Two-pole configuration handles multi-phase or hot and neutral conductor pairs

Compatibility

Designed as an OEM-style replacement or new-installation component for standard 600 VAC power distribution applications requiring a two-pole block with a single primary and four secondary connections.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit at the upstream overcurrent device before working on any connections. Verify that conductor size and type match the block's aluminum or copper ampacity ratings before terminating. Do not intermix aluminum and copper conductors at the same terminal lug unless the terminal is listed for that use.
