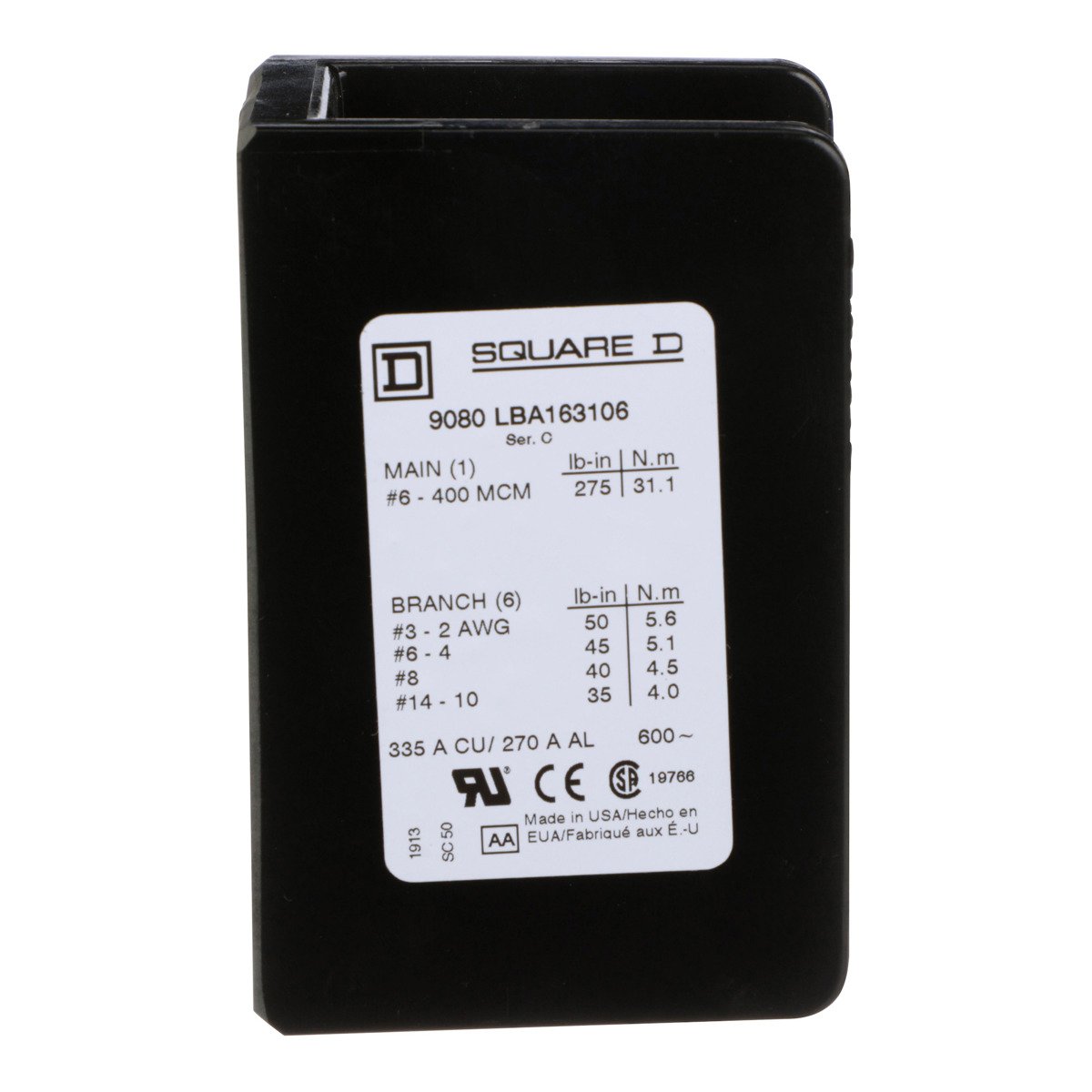

Square D 9080LBA163106 335 Amp 600 Volt 1-Pole Power Distribution Block

Product Description

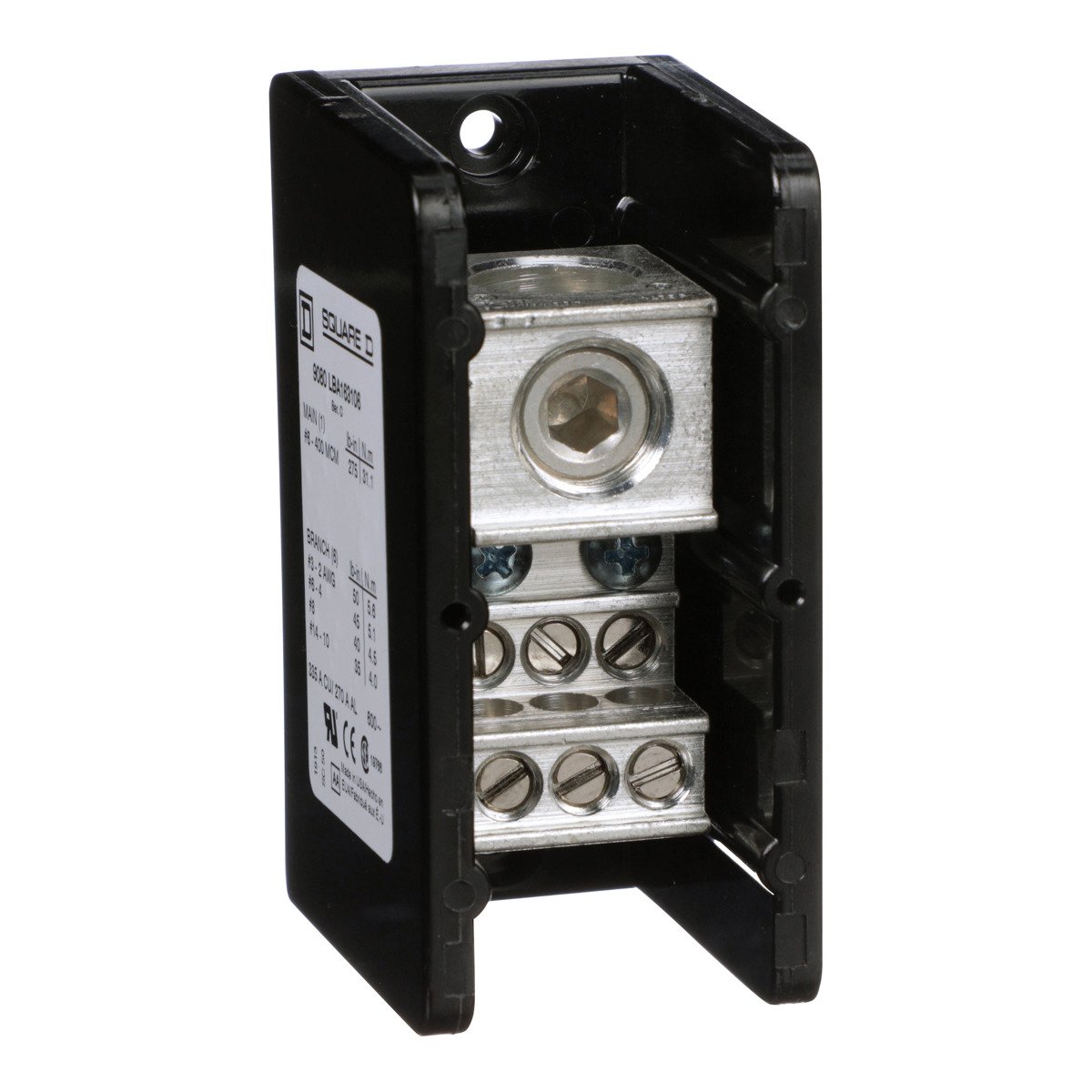

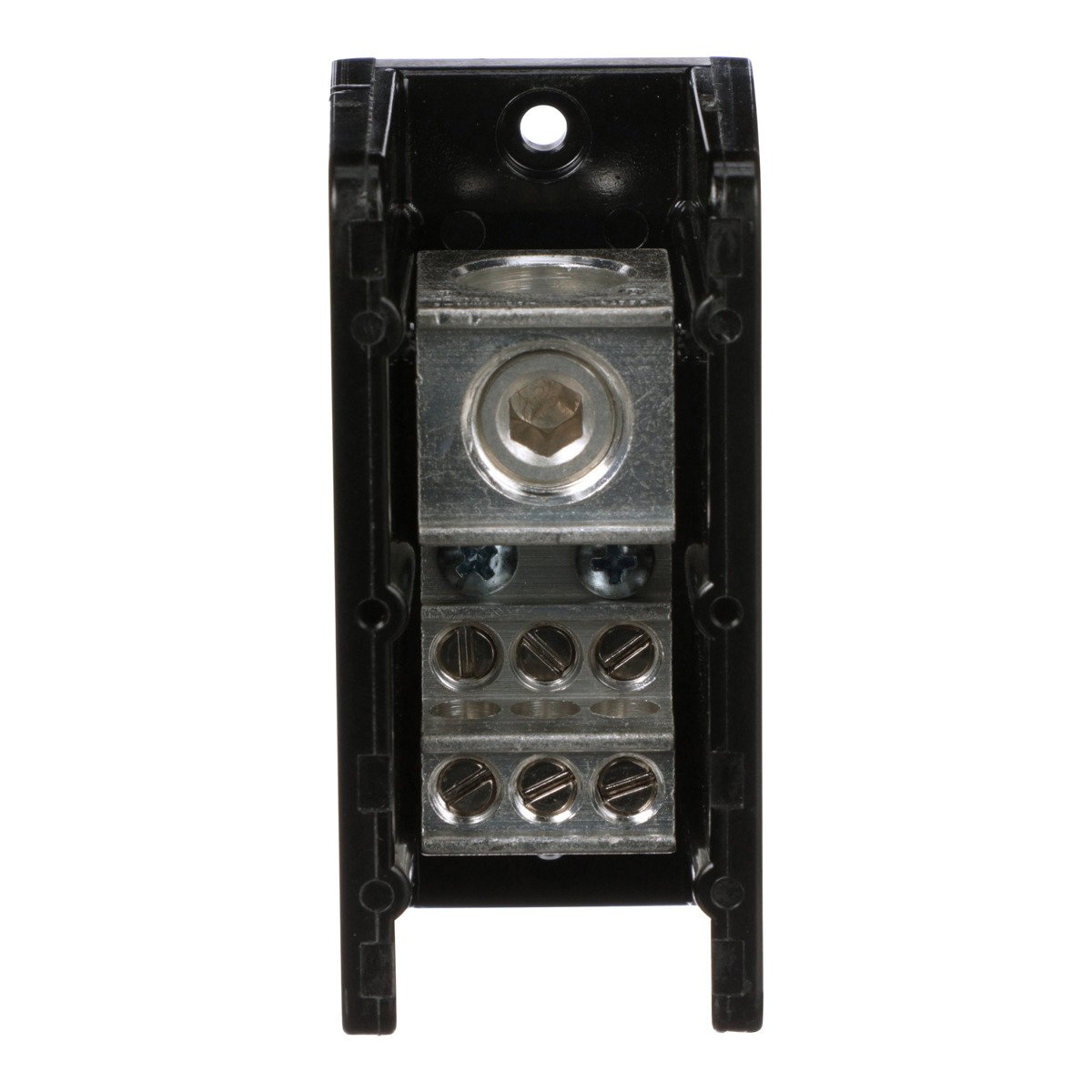

Square D 9080LBA163106 is a power distribution block designed for wire termination and compliance with NEMA standards. This single-pole block features one lug opening on the main side and six lug openings on the load side. The main lug can accommodate copper or aluminum wire from size #6 to 400 kcmil. The load side accepts wire from size #14 to #2 copper or aluminum. Rated for a maximum of 335 amperes when using copper and 270 amperes for aluminum, this component supports up to 600 volts. Constructed from phenolic material, it is UL component recognized and CSA certified, ensuring reliability in power distribution applications.

• Single pole design for efficient wire management.
• Compatible with wide wire size range for diverse applications.
• UL and CSA certified for safety and reliability.

Product Highlights

Ideal for use in electrical distribution systems and applications requiring reliable energy distribution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA163106
• Current Rating: 335 Amp (Copper), 270 Amp (Aluminum)
• Voltage Rating: 600 Volt
• Wire Size: Main (AWG 6 to 400 kcmil), Load (AWG 14 to 2)
• Material: Phenolic
• Mounting Type: Surface Mount
• Warranty Length: 18 months
• Country of Origin: USA
