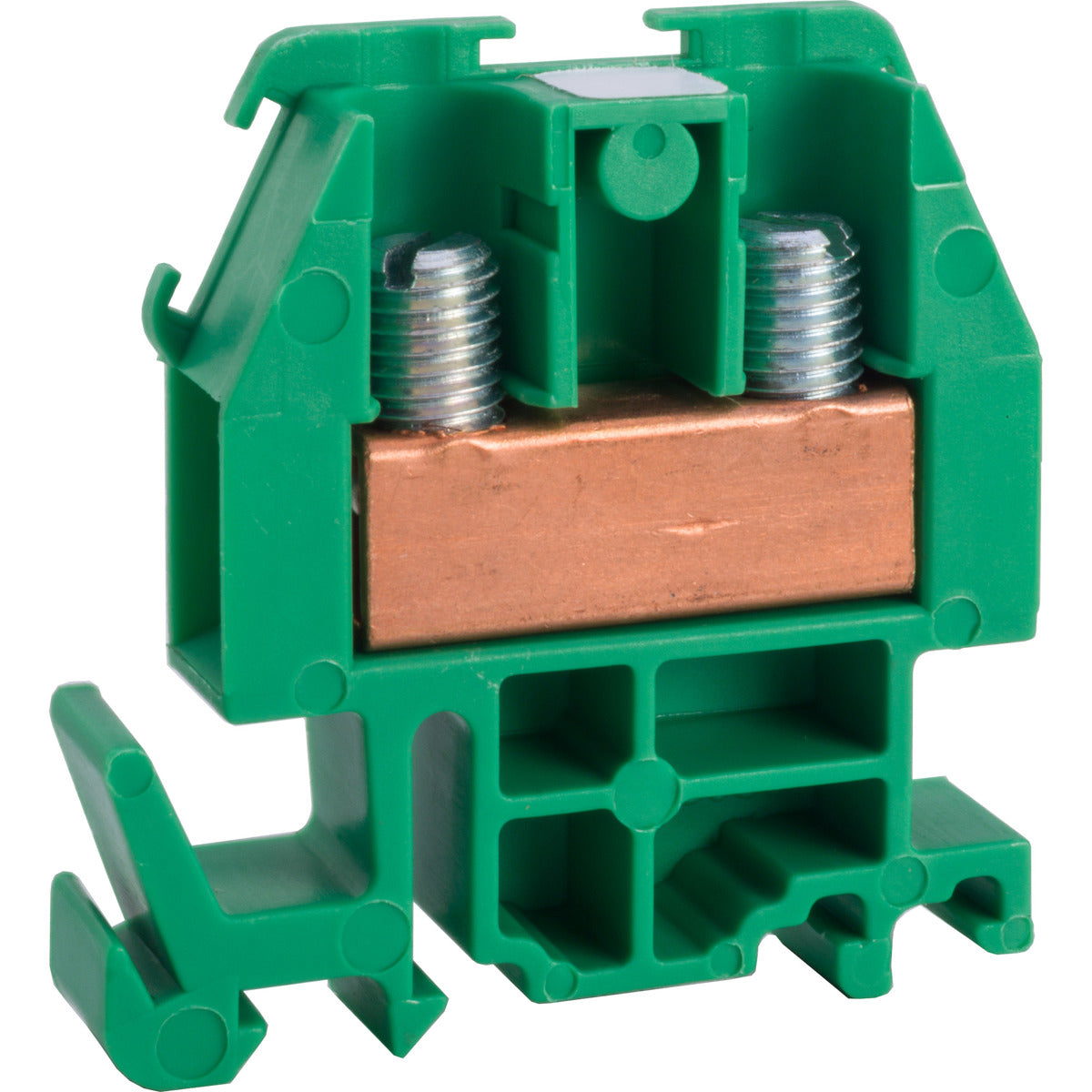

Square D 9080GRG6 Terminal Block 600 Volt 60 Amp

Product Description

The Square D 9080GRG6 Linergy NEMA sectional terminal block is designed for terminating wires in a control panel to NEMA standards. It features a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. The nylon block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.

• Designed to NEMA standards for control panel wiring.
• Accepts solid or stranded copper wires from #22 to #8 AWG.
• UL component recognized and CSA certified up to 60A and 600 VAC/VDC.

Product Highlights

The Square D 9080GRG6 terminal block provides a reliable solution for terminating wires, ensuring secure connections in control panel applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080GRG6
• Country of Origin: Mexico

Technical Specifications

• Type: Terminal block
• Brand: Square D
• Depth: 0.35 Inch
• Width: 1.72 in
• Height: 1.82 Inch
• Current: 60 Amp
• Voltage: 600 Volt
• Material: Nylon
• Wire Size: AWG 22...AWG 8 copper
• Mounting Type: 35 Mm DIN Rail,9080GH Track
• TC Connection: COPPER BOX LUGS,LUG COPPER 18-20 LBF.IN : AWG 22...AWG 8 COPPER)
• Certifications: CE,CSA File 62144 Class 6228 01,UL Recognized E60616 CCN XCFR2
• Conductor Size: 22-8 AWG
• Line Rated Current: 60-60 A
• Catalog Number: 9080GRG6
• Manufacturer: Schneider Electric
• UPC: 785901917489
• GTIN: 00785901917489
• Configuration: Single Tier 1-Circuit
• Construction: Standard NEMA
• Current Rating: 60 Ampere (UL/CSA)
• Terminal Type: Box Lug
• Temperature Rating: -40 to 257 Deg F
• Housing Material: Nylon
• Mounting: 35 MM DIN Rail
• Approval: UL, CSA, CE
• Connection Type [Specifications]: Box Lug
• Maximum Voltage [Specifications]: 600 V AC/DC
• Wire Size Ranges [Specifications]: 22 AWG - 8 AWG
• For Conductor Material [Specifications]: Copper
• Manufacturer Part Number: 9080GRG6
• Series: Class 9080 Series
• UPC Code: 785901917489
• ECCN: EAR99
• UNSPSC: 39121410
• Color Family: Green
