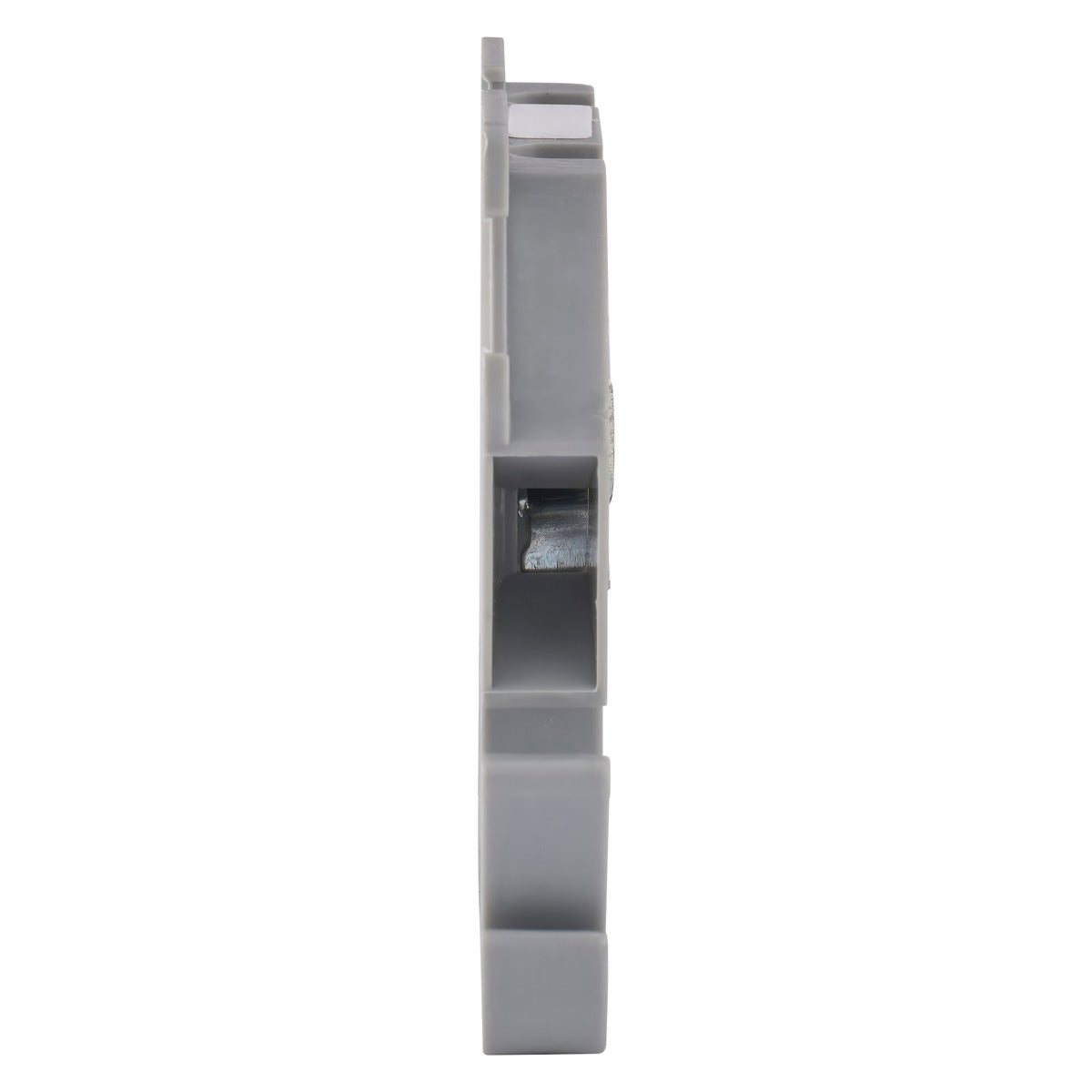

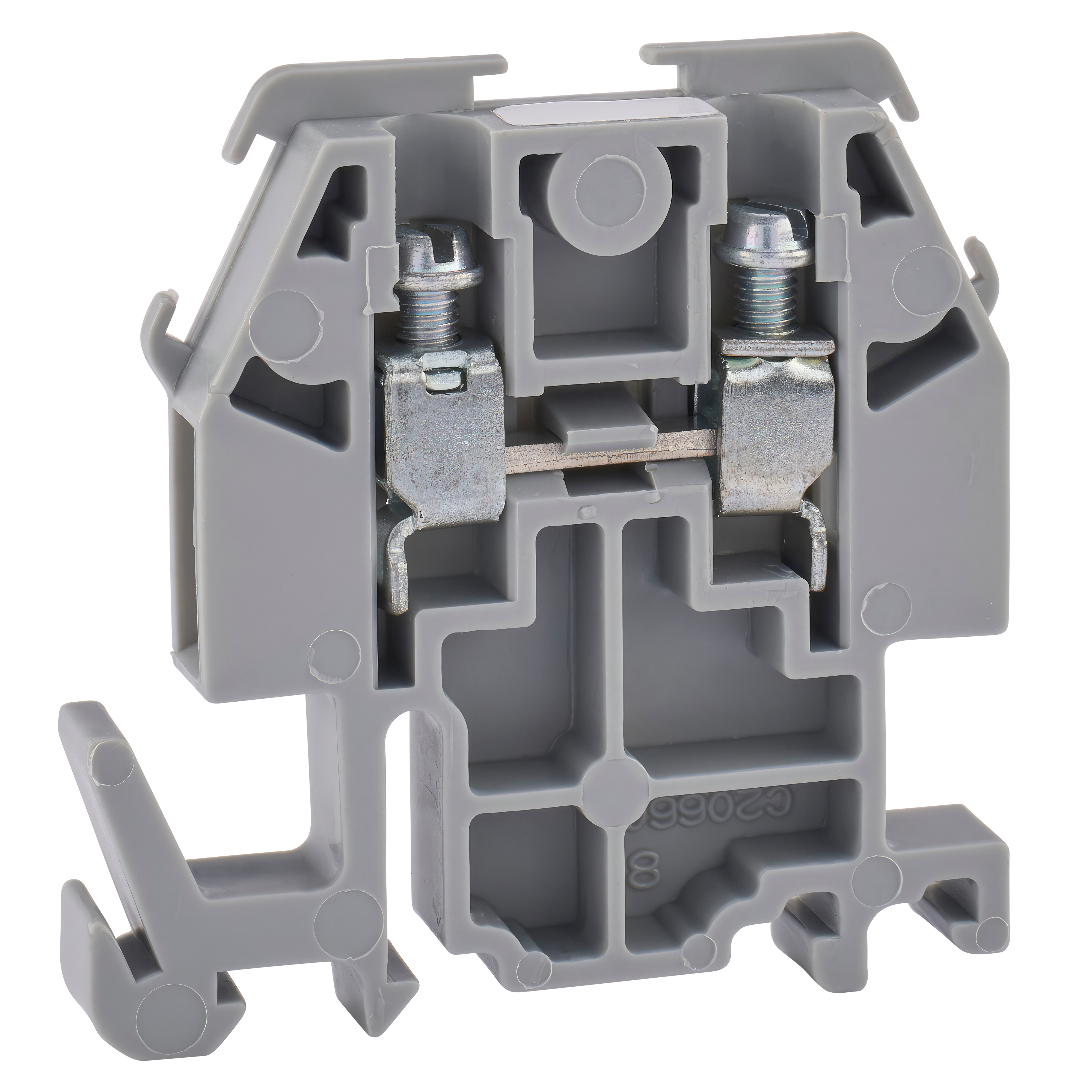

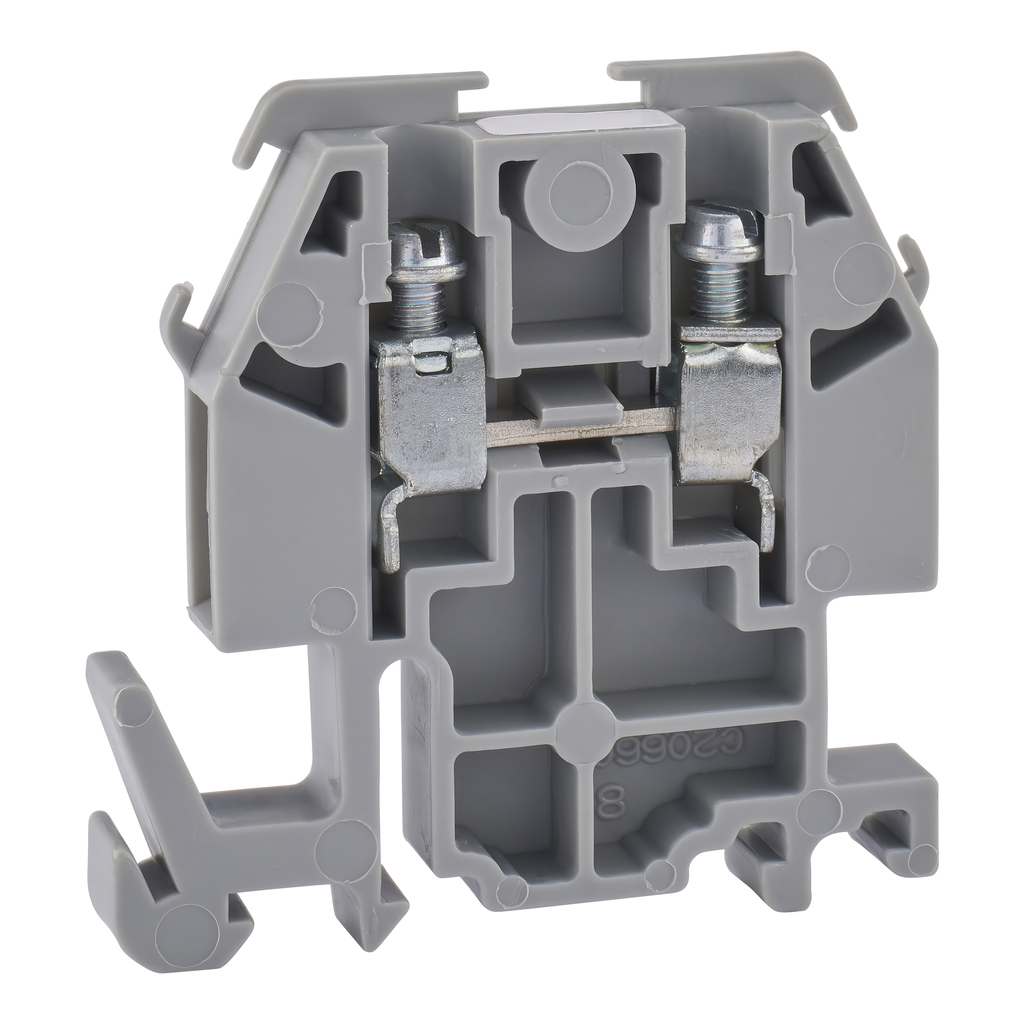

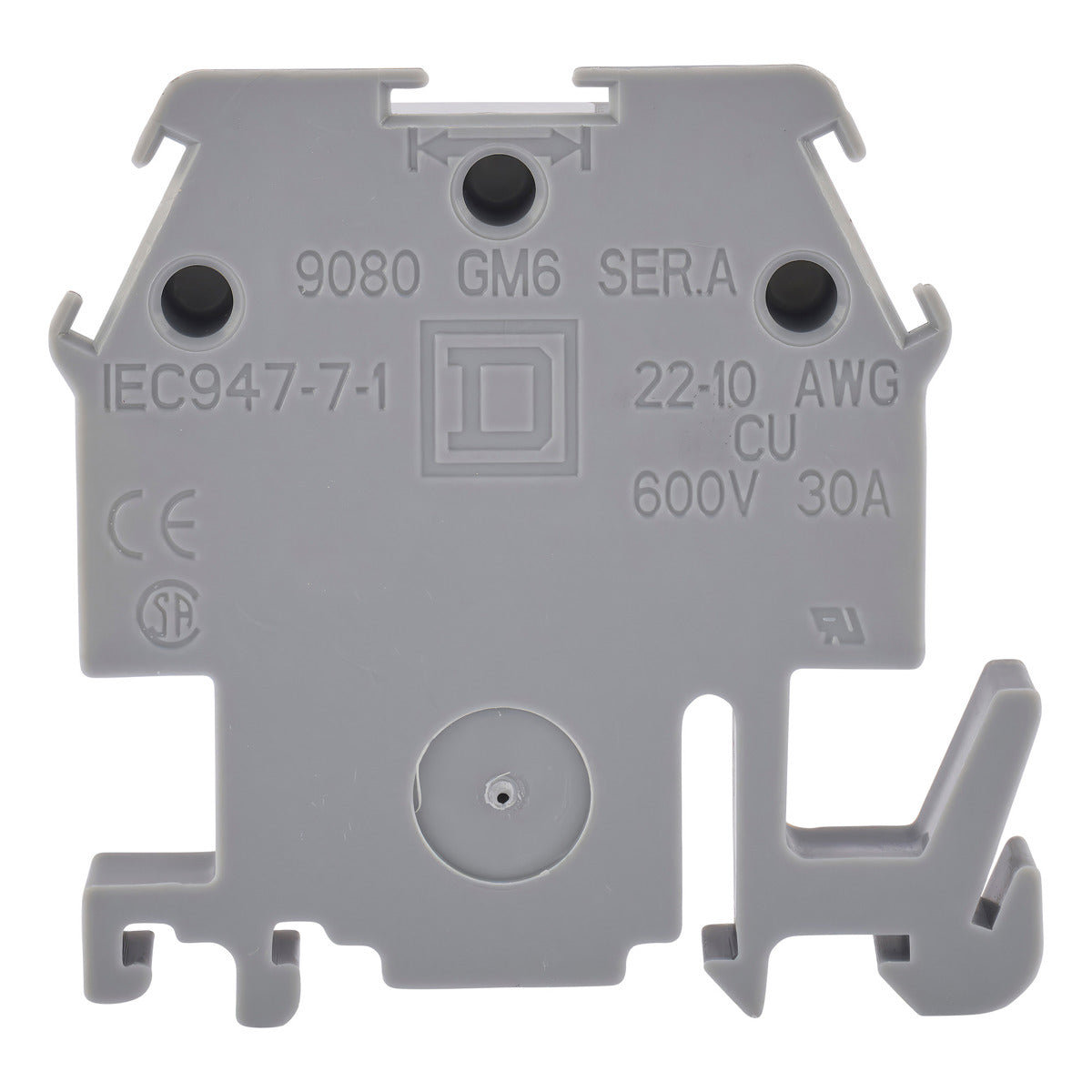

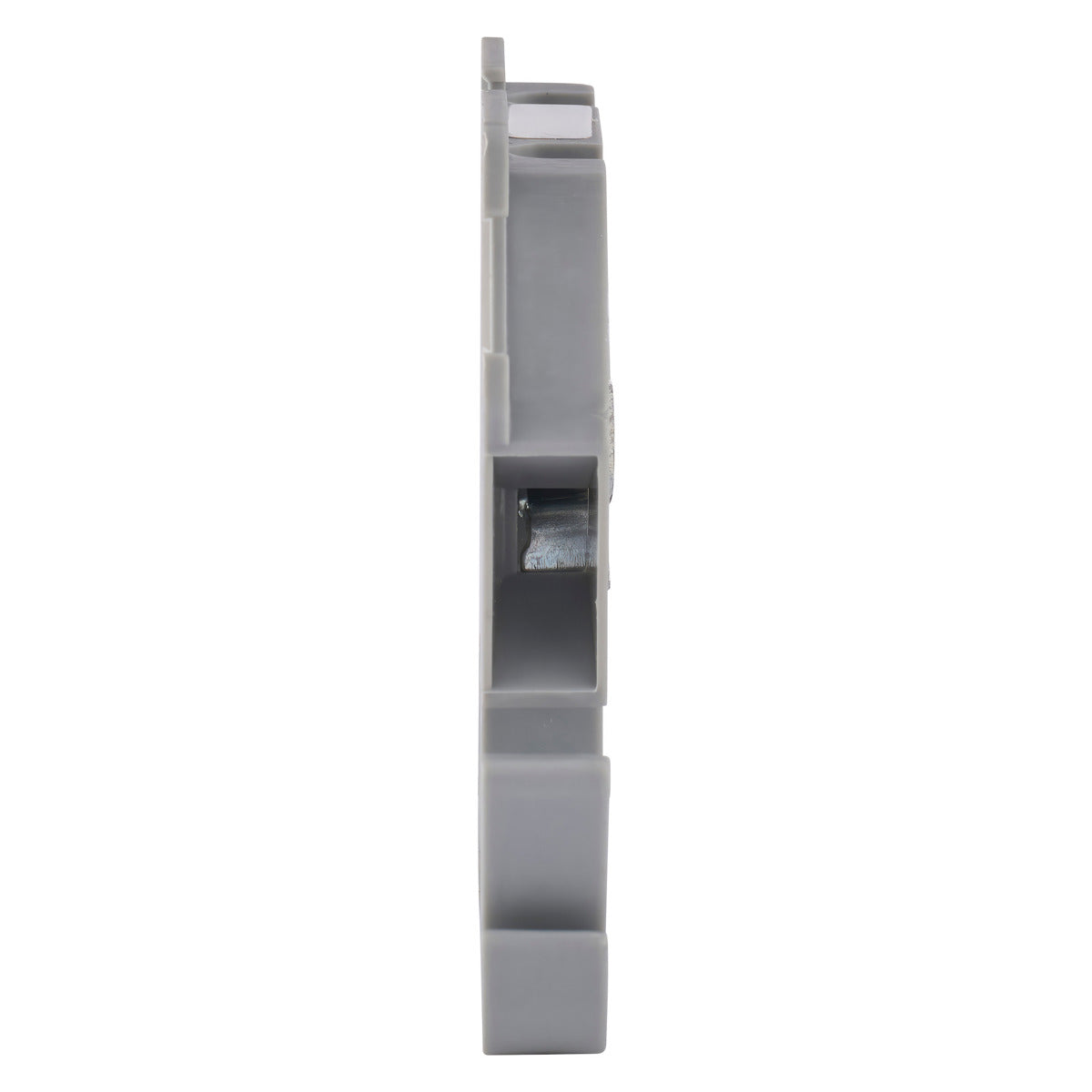

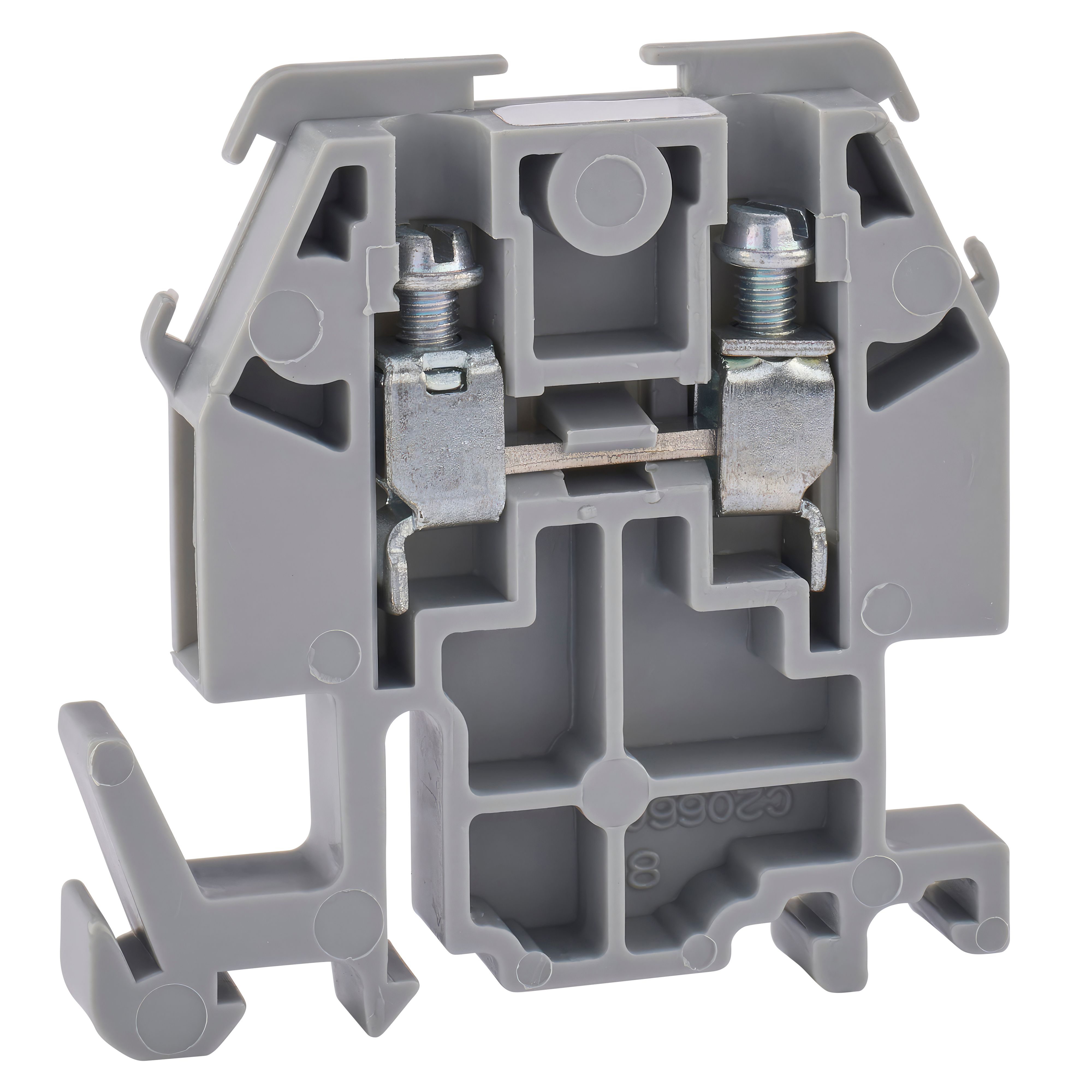

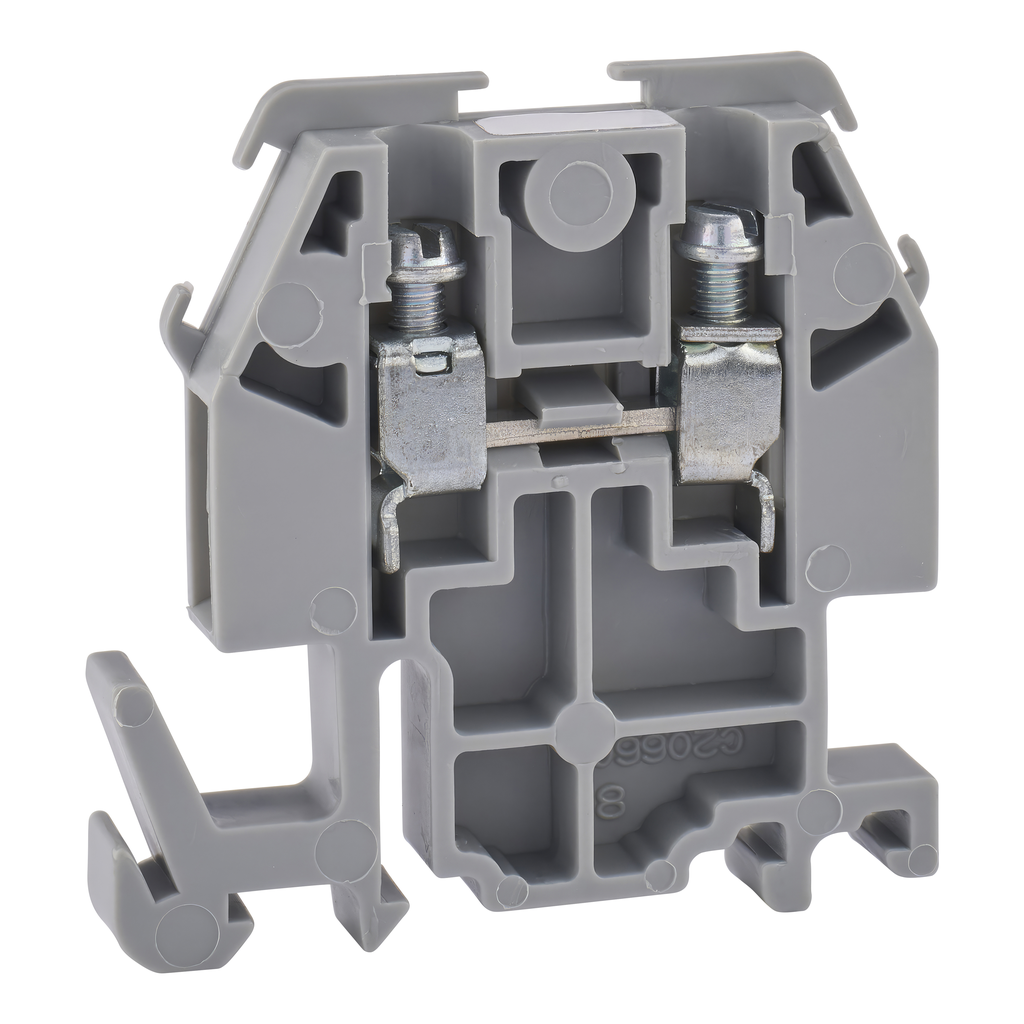

Square D 9080GME6 terminal block 600 volt 30 amp 35 mm din rail

Product Description

The Square D 9080GME6 Linergy NEMA sectional terminal block is designed for terminating wires in a control panel to NEMA standards. It features a box lug connector for use with solid or stranded copper wires from #22 to #10 AWG. Each lug accepts various wire combinations and is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.

• Designed to NEMA standards
• Suitable for solid or stranded copper wires from #22 to #10 AWG
• UL component recognized and CSA certified for up to 30A and 600 VAC/VDC

Product Highlights

This terminal block is ideal for control panel wiring, offering secure and reliable connections for a range of wire sizes.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080GME6
• Country of Origin: Mexico

Technical Specifications

• Type: GM6B,TERMINAL BLOCK,TERMINAL BLOCK STANDARD
• Brand: Square D
• Color: Gray
• Depth: 0.235 Inch
• Width: 1.72 in
• Height: 1.82 Inch
• Current: 30 Amp
• Voltage: 600 Volt
• Material: Nylon
• Wire Size: AWG 22...AWG 10 copper
• Mounting Type: 35 Mm DIN Rail,9080GH Track
• TC Connection: LUG ZINC PLATED STEEL 7-8 LBF.IN : AWG 22...AWG 10 COPPER),ZINC PLATED STEEL BOX LUGS
• Certifications: CE,CSA File 62144 Class 6228 01,UL Recognized E60616 CCN XCFR2
• Conductor Size: 22-10 AWG
• Line Rated Current: 30-30 A
• Configuration: Single Tier 1-Circuit
• Construction: Standard NEMA
• Terminal Type: Box Lug
• Temperature Rating: -40 to 257 Deg F
• Housing Material: Nylon
• Approval: UL, CSA, CE
• Voltage Rating: 600 VAC/600 VDC VAC//VDC
• Connection Type: Zinc Plated Steel Box Lug
• Mounting: 9080GH TRACK-35 MM DIN RAIL
• Series: 9080G
• Torque Rating: 0.8 to 0.9 Nm
