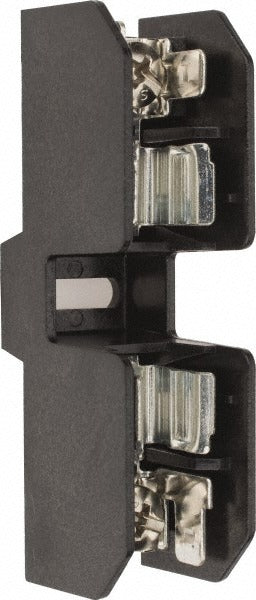

Square D 9080FB1611M Fuse Holder 30A 600V 1 Pole

Product Description

The SQUARE D 9080FB1611M is a single-pole, surface-mount fuse holder rated for 30 amps and 600 volts. It provides a secure, accessible point for overcurrent protection in industrial control panels, distribution boards, and electrical enclosures. The surface-mount design allows direct attachment to panel walls or DIN-compatible surfaces without cutout work. Electricians and panel builders use this fuse holder when protecting branch circuits or control circuits that require a compact, inline fuse point. At 0.09 pounds and compact dimensions, it fits into tight enclosure layouts without sacrificing accessibility for fuse service.

This fuse holder is suited for light industrial, commercial, and control panel applications where single-pole overcurrent protection is required at up to 600 volts. It is commonly installed in motor control centers, machine control panels, and electrical distribution enclosures. The 30-amp rating covers a wide range of branch and control circuit applications. Its surface-mount configuration makes it a practical choice for retrofits and new panel builds where rail mounting is not available or preferred.

Key Features

• Single-pole configuration for individual circuit protection
• Rated to 600 volts for use in full-voltage industrial circuits
• 30-amp capacity covers common branch and control circuit loads
• Surface-mount design enables direct panel or enclosure wall installation
• Compact footprint at 3.1 inches long, 0.9 inches wide, and 1.2 inches tall
• Lightweight at 0.09 pounds for easy placement in dense panel layouts

Compatibility

Designed as an OEM-style replacement surface-mount fuse holder for single-pole, 600-volt industrial control and distribution panel applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel or enclosure before mounting or wiring the fuse holder. Verify that the fuse inserted matches the circuit ampacity and voltage requirements. Do not exceed the 30-amp or 600-volt ratings of this device.
