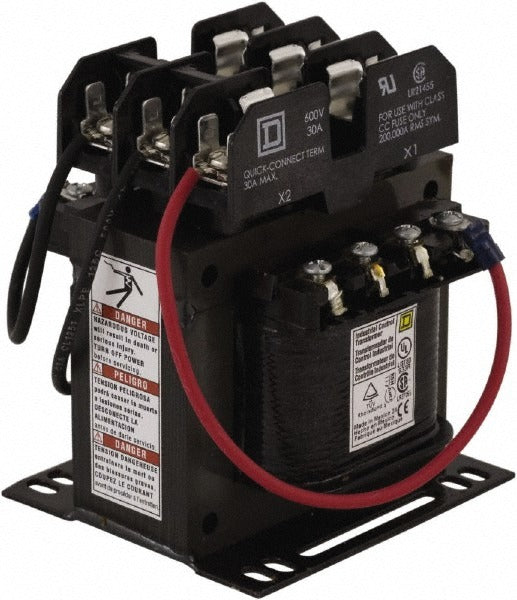

Square D 9070TF150D5 Control Transformer 150 Va

Product Description

The SQUARE D 9070TF150D5 is a 150 VA control transformer featuring a top mount fuse block configuration for fused circuit protection. Control transformers step down line voltage to a lower control-circuit voltage, supplying reliable power to relays, contactors, solenoids, and other control devices in industrial and commercial electrical panels. Rated at 150 VA, this unit is sized for moderate control-circuit loads and is designed for panel or enclosure mounting. Licensed electricians and controls technicians are the typical installers for this class of transformer.

This transformer is suited for use in commercial HVAC control panels, motor control centers, machine tool cabinets, and industrial automation enclosures where a fused, isolated control-circuit supply is required. The top mount fuse block places the fuse in an accessible location for fast inspection and replacement without disturbing wiring. Its dimensions make it compatible with standard din-rail and chassis-mount panel layouts commonly found in commercial and light industrial applications.

Key Features

• 150 VA rating supports moderate control-circuit load requirements
• Top mount fuse block provides integrated fuse protection and easy fuse access
• Fused secondary circuit helps protect downstream control devices
• Compact footprint at 6.9 inches wide by 7.9 inches long by 6.4 inches tall
• Package quantity of one unit per order

Compatibility

Designed as an OEM-style replacement control transformer for commercial and industrial control panels requiring a 150 VA fused transformer with a top mount fuse block configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel before removing the existing transformer or making any wiring connections. Verify that the primary voltage tap matches the supply voltage before energizing. Ensure the fuse rating installed in the top mount fuse block is appropriate for the secondary circuit load.
