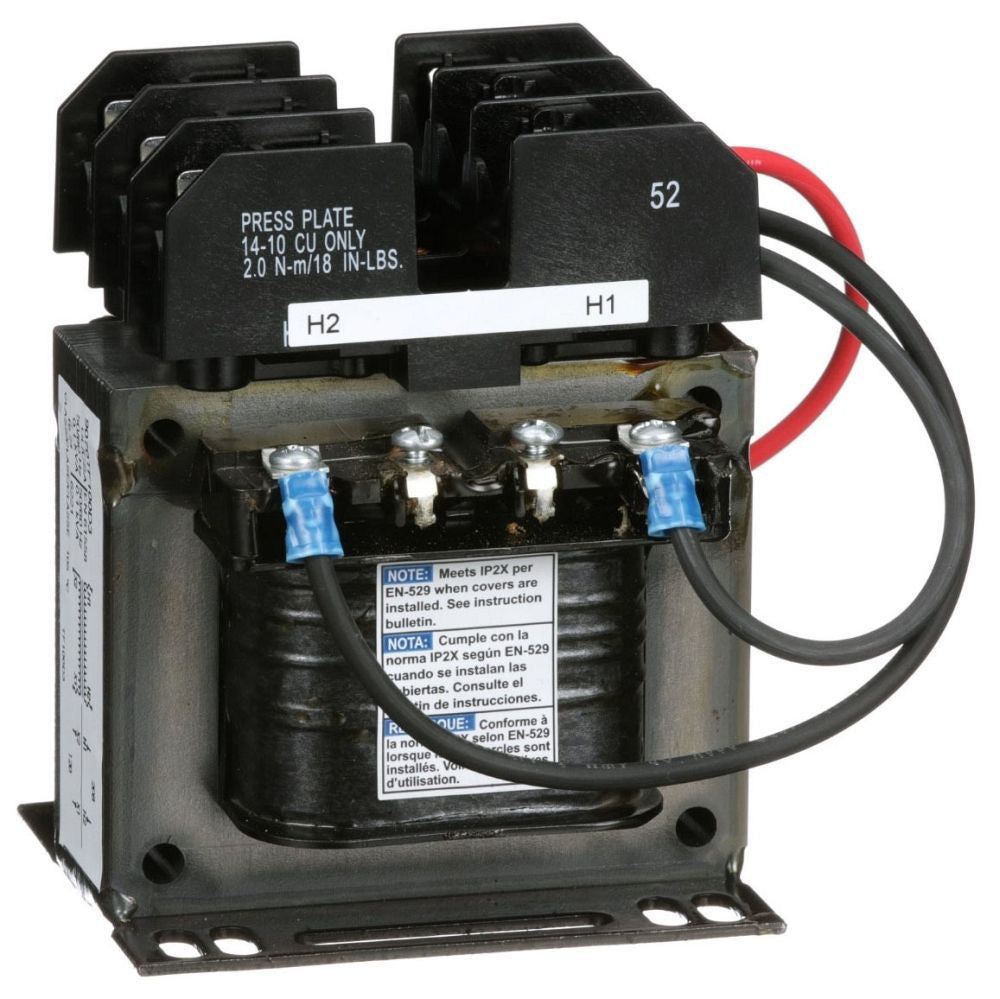

Square D 9070TF100D3 Transformer Control 100Va 208V-120V

Product Description

Square D 9070TF100D3 is a transformer control designed for 100 volt amp input and operates at 208 volts AC to 120 volts AC. This transformer is suitable for various commercial and industrial applications. It meets several safety and quality standards, making it reliable for heavy-duty tasks.

• Power Rating: 100 VA
• Dimensions: 3.38 inches width, 3.34 inches depth, and 4.18 inches height
• UL, CSA, CUL, CE, and NOM approved

Product Highlights

This transformer is designed with screw clamp terminals and is compliant with EN 60742/01.89 standards. It is built for a temperature rise of up to 55 degrees Celsius and features a copper winding material.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590190576

Technical Specifications

• Model: 9070TF
• Primary Voltage: 208 V
• Secondary Voltage: 120 V
• Frequency Rating: 50/60 Hz
• Size: 3.38 inches W x 3.34 inches D x 4.25 inches H
• Temperature Rise: 55 Deg C
• Mounting: 0.48 inch L x 0.2 inch W Slot
• Insulation Class: 105
