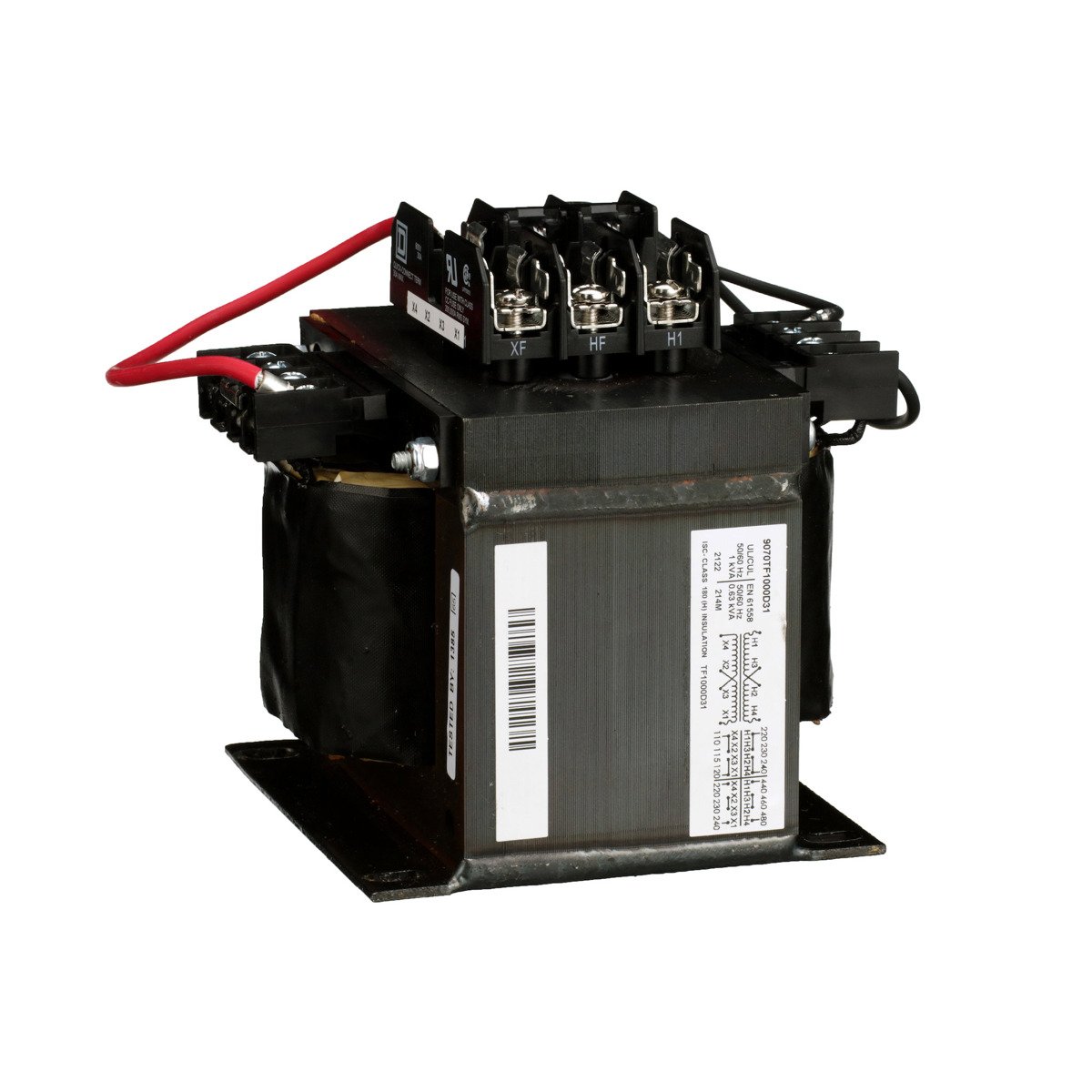

Square D 9070TF1000D31 Industrial Control Transformer Type TF 1 Phase 1000VA 240x480V Primary 120/240V Secondary

Product Description

The Square D 9070TF1000D31 Industrial Control Transformer is manufactured by Schneider Electric. This transformer is a single-phase unit with a rating of 1000 volt-amperes. It operates on a primary voltage of 240x480VAC and delivers a secondary voltage of 120/240VAC. This model features factory-installed overcurrent protection fuse blocks, consisting of two for the primary voltage and one for the secondary voltage. The design allows for maintaining a compact size while effectively providing the necessary overcurrent protection.

These transformers use low impedance windings. This allows them to manage higher inrush current while still regulating voltage appropriately. Additionally, the transformer supports other voltage configurations, such as 230x460VAC with a secondary of 115/230VAC and 220x440VAC with a secondary of 110/220VAC. This unit adheres to UL and CSA standards, verified by a third-party inspection, and carries the cUL and UL labels for quality assurance.

• Single-phase transformer rated at 1000VA
• Primary voltage of 240x480V, secondary of 120/240V
• Includes overcurrent protection fuse blocks

Product Highlights

Ideal for industrial applications requiring reliable voltage regulation and overcurrent protection.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9070TF1000D31
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901441083
• GTIN: 00785901441083
