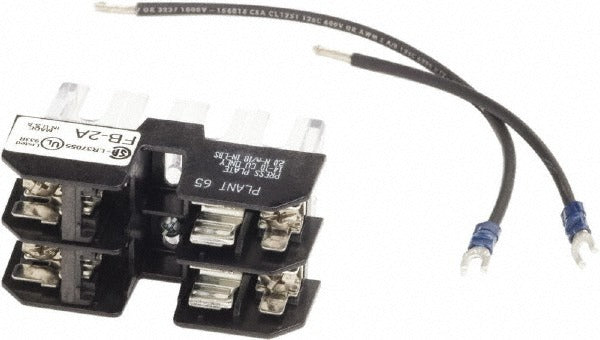

Square D 9070FB2A Fuse Block 2 Pole 120 Volt Class T

Product Description

The SQUARE D 9070FB2A is a 2-pole fuse block rated for 120 volts, designed to accept Class T fuses with a 13/32-inch diameter and 1.5-inch fuse length. Fuse blocks provide a safe, serviceable connection point for overcurrent protection within electrical control panels, transformer assemblies, and industrial equipment enclosures. This unit carries CE, CSA, NOM, and UL certifications, meeting a broad range of installation and inspection standards. Licensed electricians and controls technicians install this component when building or servicing low-voltage control circuits that require individually protected branch connections in a compact block format.

The 9070FB2A is suited for use in residential, commercial, and light industrial control panel applications. It is commonly installed in transformer secondary circuits, machine control enclosures, and HVAC control panels where Class T fuse protection is specified. Its 2-pole configuration allows two independent fused circuits within a single block footprint, making it a practical choice when panel space is limited and multiple circuits require individual overcurrent protection.

Key Features

• 2-pole design provides two independently fused circuit positions in one block
• Rated for 120 volts for use in low-voltage control circuit applications
• Accepts Class T fuses with a 13/32-inch diameter and 1.5-inch length
• Certified to CE, CSA, NOM, and UL standards for broad code compliance
• Compact footprint: 4.3 inches wide, 4.1 inches long, 3.8 inches tall

Compatibility

Designed as an OEM-style replacement fuse block for control panel and transformer applications requiring Class T fuse protection at 120 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel or enclosure before installing or servicing this fuse block. Verify that replacement fuses match the specified Class T rating, diameter, and length before reinstalling. Do not exceed the rated voltage or install fuse types other than Class T in this block.
