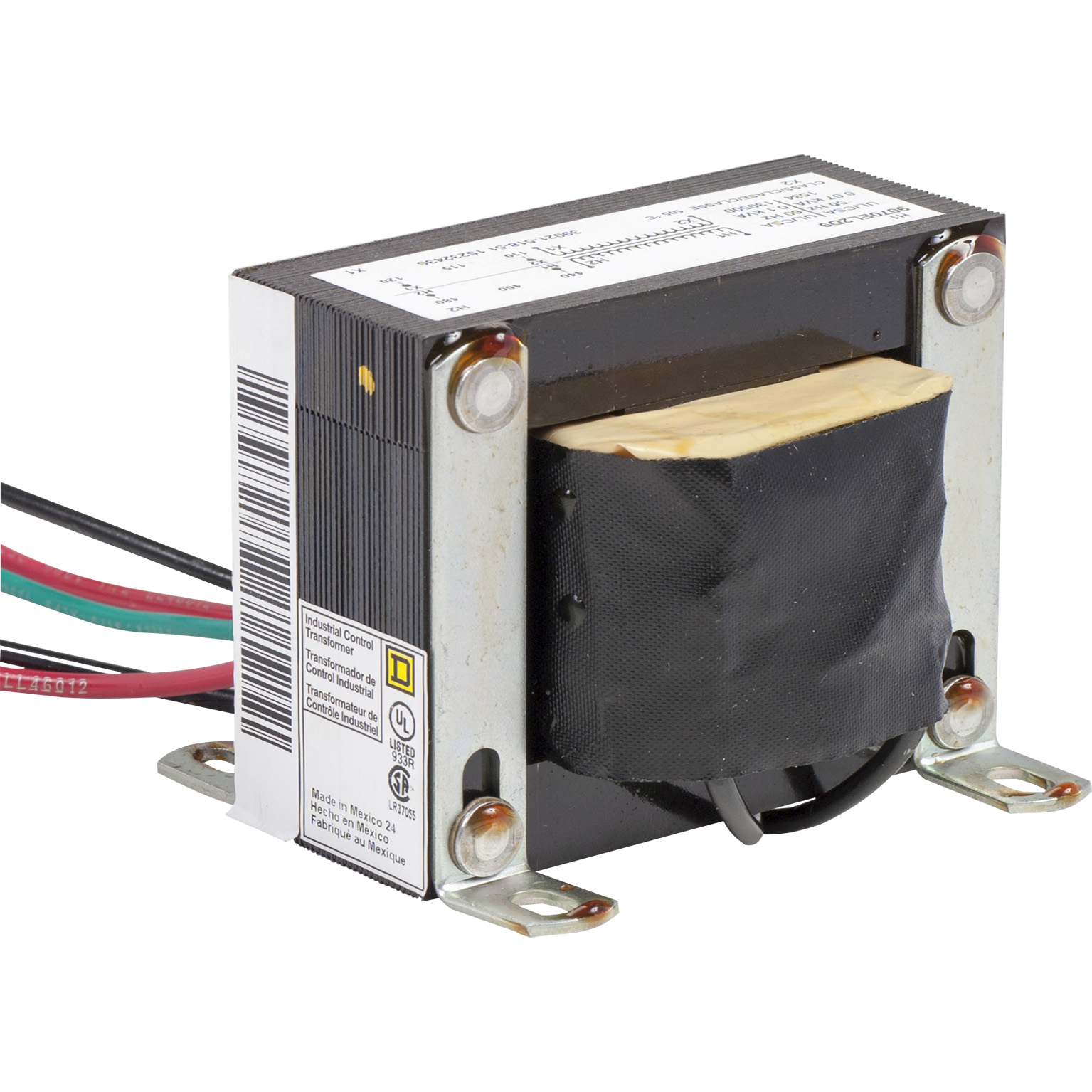

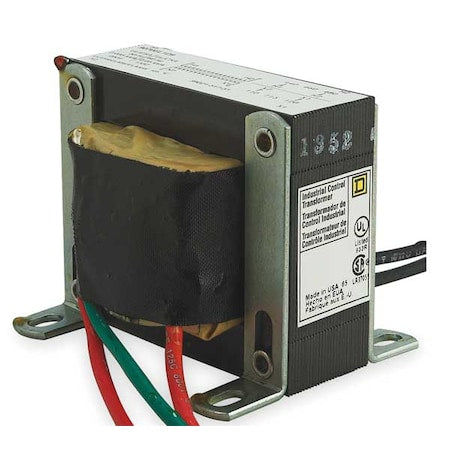

Square D 9070EL2D9 Transformer 100 VA 480 Volt Primary 120 Volt Secondary 1-Phase with Lead

Product Description

The Square D 9070EL2D9 is an industrial control transformer with internally pre-wired 24-inch primary and secondary leads for easy installation. This 1-phase transformer has a rated power of 100 VA and primary voltages of 440/460/480 V and secondary voltages of 110/115/120 V. It complies with UL, CSA, and CE standards and features screw clamp terminals connections.

• Internally pre-wired 24-inch primary and secondary leads
• Single voltage primary and single voltage secondary applications
• 1 phase

Product Highlights

This Square D transformer is ideal for industrial control applications requiring reliable voltage conversion and easy installation.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9070EL2D9
• Country of Origin: Mexico

Technical Specifications

• Type: Control Transformer
• Brand: Square D™
• Voltage: 440 Volt
• Enclosure: NOT RATED (OPEN DEVICE)
• Product UPC: 78590102022
• 12-Digit UPC: 785901020226
• TC Connection: LEADS (25 INCHES)
• Certifications: CE,CSA,UL Listed
• Primary Voltage: 480 (460, 440) VAC
• Number of Phases: 1 Phase
• Country of Origin: Mexico
• Secondary Voltage: 120 (115, 110) VAC
• Power Rating: 100 VA
• Terminal Type: Lead Wire
• Temperature Rise: 55 Deg C
• RoHS Compliant: True
• Lead Wire Length: 25 Inch
• Insulation Temperature: 105 Deg C
• Range Of Product: EL
• Product Or Component Type: Industrial Control Transformer
• Rated Power In Va: 100 VA
• Electrical Connection: screw clamp terminals
• Rohs Exemption Information: Yes
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: N/A
• Take-Back: No
• Pvc Free: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Nema Degree Of Protection: not rated (open device)
• Insulation: 105
• Hz [Specifications]: 50/60
• Item [Specifications]: Control Transformer
• Fused [Specifications]: No
• Phase [Specifications]: 1
• Mounting [Specifications]: Panel
• Standards [Specifications]: UL listed and CSA Certified
• Temp. Rise [Specifications]: 55 Degrees C
• Input Voltage [Specifications]: 480VAC
• Enclosure Type [Specifications]: Open Device (Not Rated)
• Output Voltage [Specifications]: 120V AC
• Hz - Electrical [Specifications]: 50 Hz, 60 Hz
• Enclosure Finish [Specifications]: Epoxy Resin Varnish
• Transformer Type [Specifications]: Wire-Wound
• Protective Device [Specifications]: None
• Item - Transformer [Specifications]: Control Transformer
• Phase - Electrical [Specifications]: 1
• Primary Connection [Specifications]: Screw clamp terminals
• Secondary Connection [Specifications]: Screw clamp terminals
• Insulation Max. Temp. [Specifications]: 105°C
• Mounting - Transformer [Specifications]: Foot
• VA Rating - Transformer [Specifications]: 100 VA
• Input Voltage - Transformer [Specifications]: 480V AC
• Enclosure Style - Transformer [Specifications]: Open
• Green Environmental Attribute [Specifications]: Mercury Free; Pvc Free
• Configuration: Open-Frame
• Frequency: 60 Hz
• Manufacturer Part Number: 9070EL2D9
• Mounting Type: Panel Mount
• Numeric ID: 2510413
• Series: 9070 Series
• Termination: Lead Wires
• UPC Code: 785901020226
• Alternate Catalog Number: 9070EL2D9
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: 9070EL2D9
• Connection Type: Screw Clamp
• Enclosure Type: NEMA 1
• EU RoHS Indicator: Y
• Frequency Rating: 50/60 Hz
• Phase: 1 pH
• Primary Type: Industrial Transformer
• Volt Amps: 100
