Square D 9066RA1 NEMA 1/12 Overload Relay Starter Reset Mechanism

Product Description

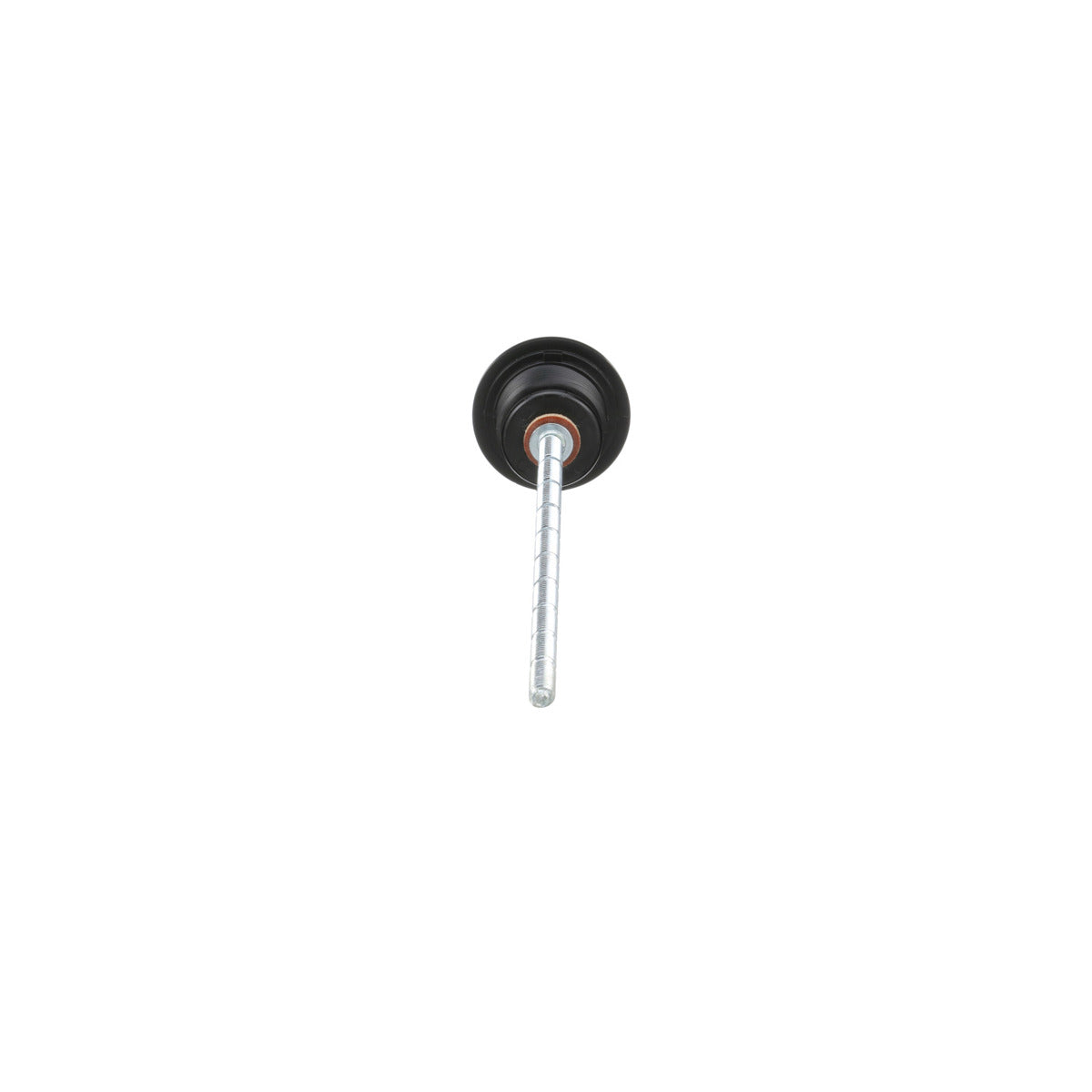

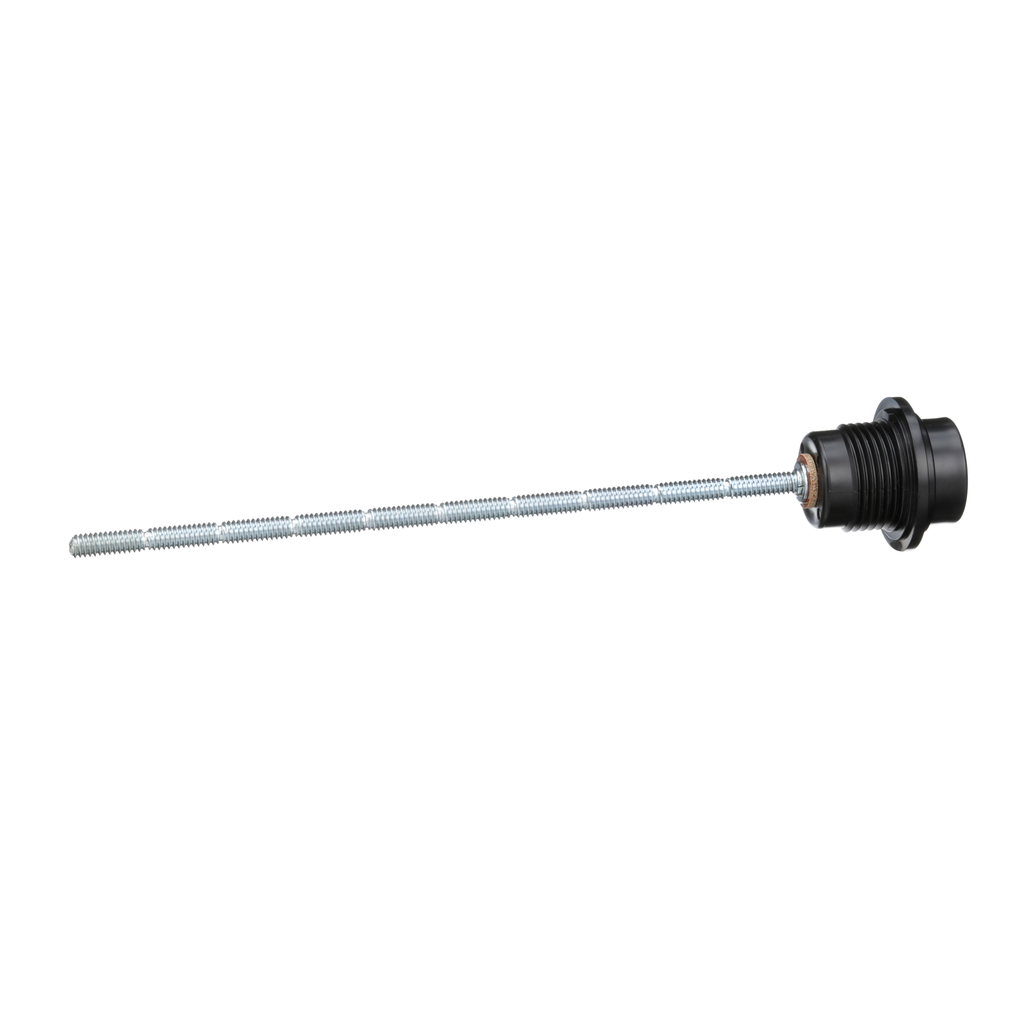

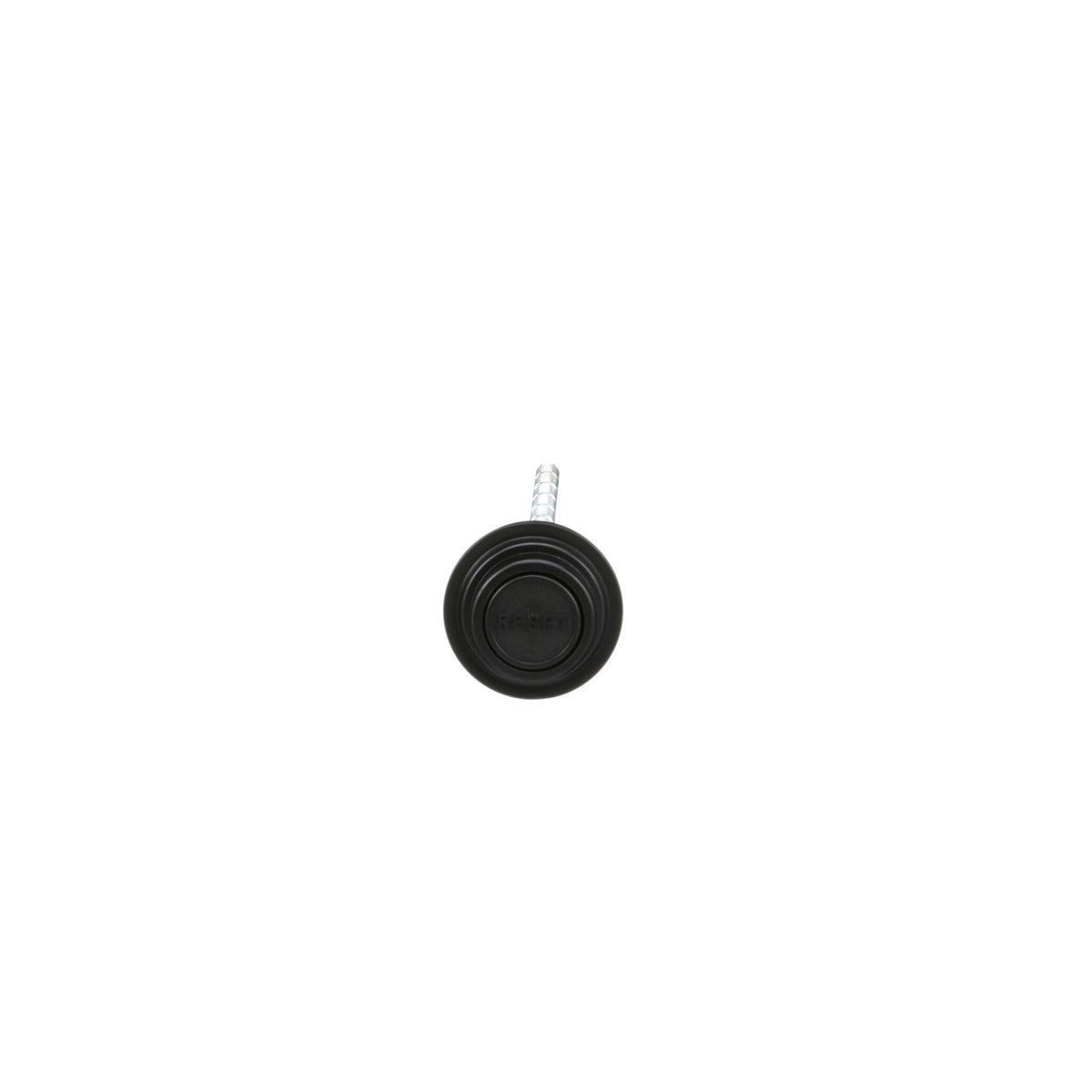

The Square D 9066RA1 is a NEMA 1/12 rated external reset mechanism designed for use with Type S overload relays. This mechanism allows for the reset of the relay without needing to open the enclosure. The included grey push button is easily accessible and labeled 'RESET'. The kit features a threaded reset rod that is grooved at intervals of three-quarters of an inch, enabling it to be cut to the desired length while preserving the threading integrity. Final adjustments can be simply made post-installation by rotating a plunger and securing it with a lock nut.

• Compatible with NEMA 1 and NEMA 12 enclosures
• Includes one adjustable threaded reset rod
• Enables easy external resetting of overload relays

Product Highlights

This reset mechanism is essential for maintaining operational efficiency in electrical systems where quick resets are necessary without exposing the internal components.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9066RA1
• Enclosure Rating: NEMA 1/12
• Reset Type: Manual
• Warranty: 18 months
• Country of Origin: Mexico
• UPC: 785901864332
• GTIN: 00785901864332
• Applications: OEM kit for commercial enclosures
