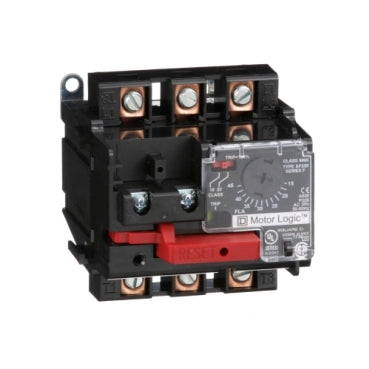

Square D 9065SF220 600 VAC 15 to 45 Amp 3-Phase Size 2 NEMA Solid State Thermal Overload Relay

Product Description

The Square D 9065SF220 is a solid state thermal overload relay designed for protecting 50/60 Hz, three-phase AC motors. This relay handles a full load current range of fifteen to forty-five amps and operates at a maximum voltage of six hundred volts. It is suitable for use with NEMA size two combination starters, providing effective protection against overloads, phase loss, and phase unbalance.

• Self-powered operation
• Designed for 3-phase AC motors
• Trip class selectable from Class 10 to Class 20

Product Highlights

This relay features trip-free operation to prevent motor overheating and includes a visible trip indicator for quick troubleshooting. It also supports electrical remote reset for convenience.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9065SF220
• Voltage Rating: 600 Volt
• Current Range: 15A to 45A
• NEMA Size: 2
• Weight: 3.51 lbs
• Dimensions: 3.51 inches (H) x 4.28 inches (W) x 3.51 inches (D)
• Country of Origin: United States
• Warranty: 18 months
