Square D 9050JCK14V20 Dpdt Time Delay Relay 10A 120 Vac

Product Description

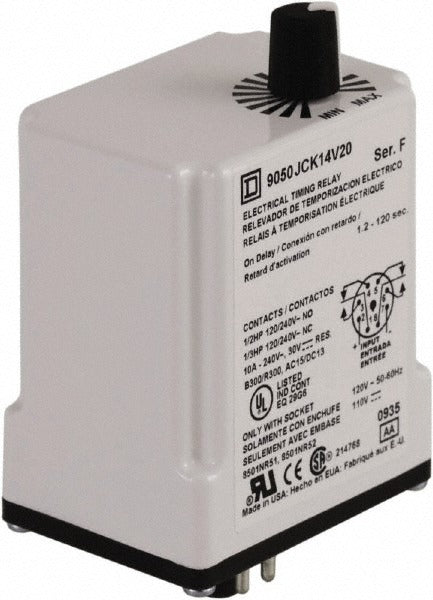

The SQUARE D 9050JCK14V20 is a double-pole double-throw (DPDT) time delay relay rated for 10 amps contact current and dual-voltage operation at 110 VDC and 120 VAC. It uses a Delay On Make timer function, meaning the output contacts close after a set time delay following coil energization, with a minimum delay of 1.2 seconds. This relay is used in control circuits where a timed switching sequence is required before downstream loads are permitted to energize. Licensed electricians and industrial controls technicians are the primary installers for this type of device.

This time delay relay is suited for industrial and commercial control panel applications where sequenced or timed circuit switching is needed. It fits into relay sockets and control enclosures used in HVAC equipment, motor control circuits, and process automation systems. The DPDT contact configuration allows control of two independent circuits simultaneously, making it a practical choice for multi-circuit timing applications in both new installations and replacement scenarios.

Key Features

• Delay On Make timer function holds output contacts open until the programmed delay elapses after coil energization
• Minimum delay of 1.2 seconds provides a defined hold-off period for sequenced starts
• 10-amp contact rating supports typical control circuit and light load switching
• Dual-voltage rated at 110 VDC and 120 VAC for flexible application in mixed-voltage panels
• DPDT contact arrangement allows simultaneous switching of two independent circuit paths

Compatibility

Designed as an OEM-style replacement time delay relay for industrial and commercial control panels requiring a DPDT Delay On Make relay with 120 VAC coil compatibility.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC guidelines. De-energize and lock out the control panel before removing or installing the relay. Verify the socket or base is rated for the relay footprint and contact configuration before seating the device. Do not exceed the 10-amp contact rating for the connected load circuit.
