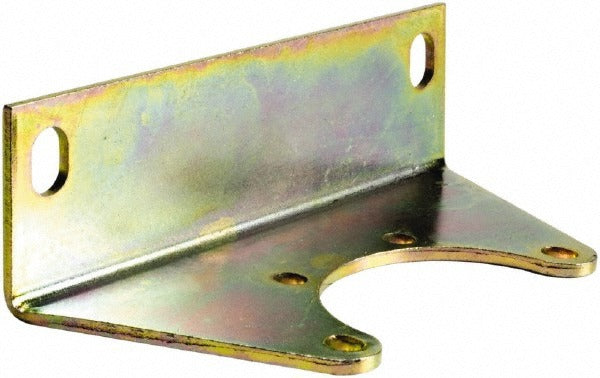

Square D 9049A52 Switch Mounting Bracket 9049 Series

Product Description

The SQUARE D 9049A52 is a mounting bracket designed for use with 9049 series pressure and level switches. It provides a secure, stable mounting surface to properly position and support the switch in the installation. Licensed electricians and industrial maintenance technicians install this accessory during new installations or when retrofitting existing switch assemblies. The bracket measures 5 inches in height, 5 inches in width, and 1 inch in length, and weighs 0.37 pounds. It is RoHS compliant, making it suitable for applications where restricted hazardous substance standards apply.

This mounting bracket is used in industrial and commercial environments where pressure or level switches require secure mechanical support. It is appropriate for panel mounting, enclosure mounting, or field installation scenarios where the 9049 series switch must be positioned at a fixed location. The compact profile allows installation in space-constrained control panels or machinery housings. Electricians and instrumentation technicians typically specify this bracket when installing or replacing 9049 series switches in process control and fluid monitoring systems.

Key Features

• Purpose-built mounting bracket for 9049 series pressure and level switches
• Compact footprint: 5 inches x 5 inches x 1 inch
• Lightweight construction at 0.37 pounds
• RoHS compliant for restricted hazardous substance requirements
• Sold as a single unit with a minimum order quantity of 1

Compatibility

Designed for use with SQUARE D 9049 series pressure and level switches.

Installation Notes

Installation of this mounting bracket should be performed by a qualified electrician or instrumentation technician. De-energize and lock out all associated circuits before beginning any mounting or switch installation work, following NFPA 70E lockout/tagout procedures. Ensure the mounting surface is structurally sound and that all fasteners are appropriate for the enclosure or panel material. Verify the bracket and switch are fully secured before restoring power to the system.
