Square D 9036GW1 Float Switch Dpst Nema 4 575 Vac

Product Description

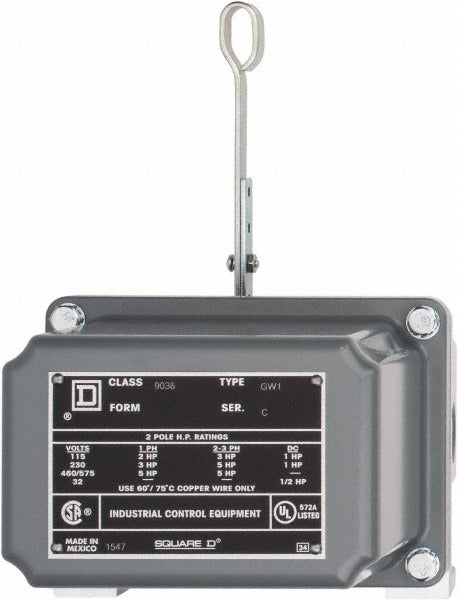

The SQUARE D 9036GW1 is a DPST float switch rated for pressure and level sensing applications across industrial and commercial systems. It carries a NEMA 4 enclosure rating, making it suitable for environments where water ingress and wash-down exposure are concerns. The switch uses a Line-Load-Load-Line terminal configuration and is rated for 575 VAC operation. At 8.73 pounds and with overall dimensions of 15 inches by 9 inches by 9 inches, this is a robust control component intended for installation by licensed electricians and instrumentation technicians in pump control panels, sump systems, and liquid level monitoring setups.

This float switch is designed for use in industrial pump control and fluid level management applications. Its NEMA 4 rating makes it appropriate for both indoor and outdoor installations where the enclosure may be exposed to splashing water or hose-directed wash-down. The 575 VAC rating accommodates higher-voltage three-phase service environments common in commercial and light industrial facilities. The DPST contact form allows simultaneous switching of two circuits, supporting typical pump start-stop and alarm wiring configurations.

Key Features

• NEMA 4 rated enclosure for indoor and outdoor water-resistant installations
• DPST contact form for simultaneous dual-circuit switching
• 575 VAC rating supports higher-voltage industrial service
• Line-Load-Load-Line terminal configuration for straightforward panel wiring
• Meets CE, CSA (File LR25490), UL 508, and UL Listed (File E12158) standards
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement float switch for industrial and commercial pump control and liquid level monitoring systems requiring a NEMA 4, DPST, 575 VAC rated switching device.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the panel or control circuit before removing or installing this switch. Verify that the supply voltage and circuit ampacity are consistent with the switch rating before energizing. Inspect all terminal connections for proper seating and torque per the panel manufacturer's guidelines after installation.
