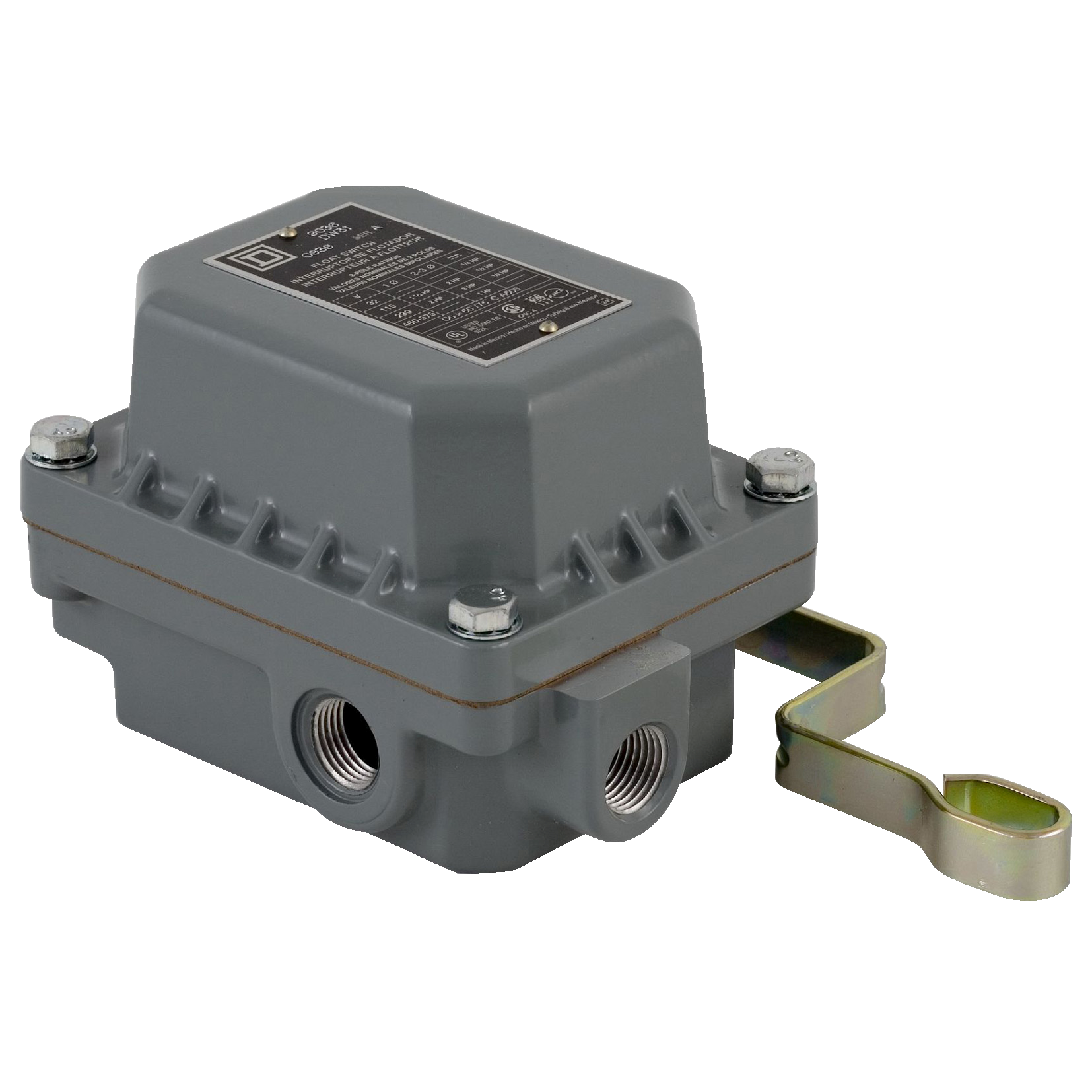

Square D 9036DR31 Float Sw - Electric Float Switch

Product Description

The Square D 9036DR31 Float Switch is designed for liquid level control applications. It features double pole single throw (DPST) contacts which open or close based on liquid levels in open tanks. This float switch can be used in various control systems to maintain water levels automatically.

• Durable design for long-lasting operation
• Double pole configuration for reliable switching
• Compatible with fresh and sea water applications

Product Highlights

This float switch operates effectively in liquid level control and has adjustable float movement to accommodate different tank depths.

Product Information

Standard Information

• Brand: Square D Pumptrol
• Family Group: Motor Control

Technical Specifications

• Type: Float switch
• Weight: 3.95 lb
• Mounting: Pedestal
• Controlled Fluid: Fresh water with specific gravity of 0.85 or higher
• Electrical Durability: 100 cycles at 60 cycles/min
• Contacts Type: 2 normally closed, snap action, DPST-DB
• Float Rod Angle: Vertical
• Connection: 4 screw-clamp terminals rated for 10 AWG
