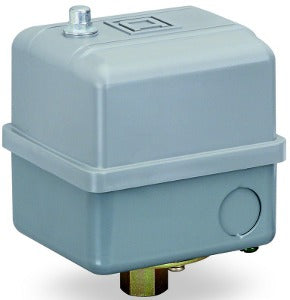

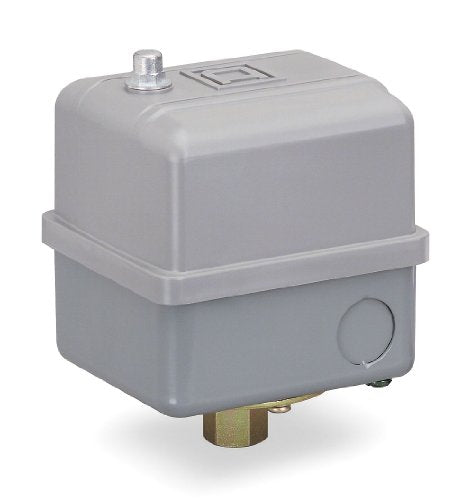

Square D 9013GHG6J63 Pressure Switch 145/175 PSI

Product Description

The Schneider Electric (Square D) 9013GHG6J63 is a pressure switch designed to regulate systems and monitor fluid pressures in industrial settings. The model offers reliable and precise control, ensuring consistent operation in various applications.

• Factory On/Off Setting 145/175 PSI
• Differential 24 to 45 PSI
• Range 32 to 250 PSI

Product Highlights

This pressure switch is suitable for air compressors and water pumps. It features a single 3/8 inch FNPS port and a DPST electrical contact form. The unit is built with a durable polypropylene cover and is rated NEMA 1 for protection.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Model: 9013GHG6J63
• Application: Air Compressor and Water Pump

Technical Specifications

• Factory On/Off Setting: 145/175 PSI
• Differential: 24 to 45 PSI
• Range: 32 to 250 PSI
• Port Type: 3/8 inch FNPS
• Contact Form: DPST
• Temperature Range: -22 to 257 Degrees F
• HP @ 1 Phase - 120V: 2 HP
• HP @ 1 Phase - 240V: 3 HP
• HP @ 3 Phase - 240V: 5 HP
• HP @ 3 Phase - 480V: 5 HP
• NEMA Rating: 1
• Standards: UL 508, NEC Article 430-84, ANSI / NSF Standard 61, FDA 21CFR. 2600, CSA Certified
