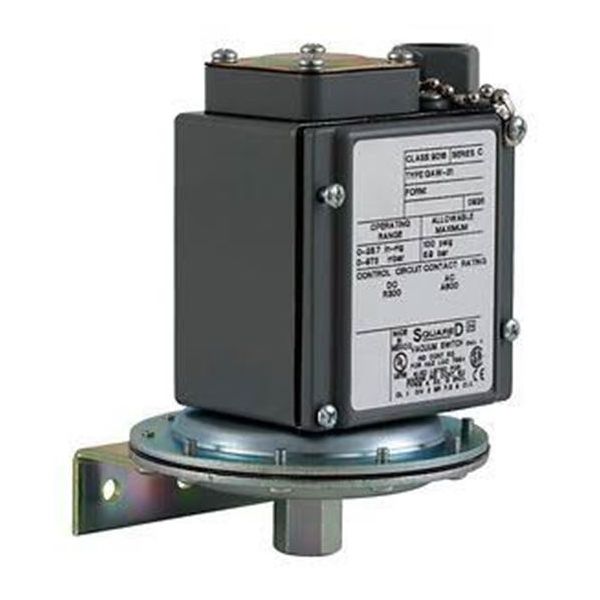

Square D 9012GGW24-S216 PRESSURE SWITCH 480V 10A

Product Description

Square D 9012GGW24-S216 is a pressure switch designed for various industrial applications. This pressure switch operates at four hundred eighty volts with a maximum current of ten amps. It is built to monitor pressure levels and react based on preset criteria.

• Operating temperature ranges from minus ten to one hundred eighty-five degrees Fahrenheit.
• Capable of handling a differential pressure of up to two hundred forty PSIG.
• NEMA 4/4X/13 rated for dust and water resistance.

Product Highlights

This pressure switch is ideal for applications involving hydraulic oils, air, and non-corrosive liquids and gases.

Product Information

Standard Information

• Brand: Square D
• Model Number: 9012GGW24-S216

Technical Specifications

• Item Number: 9012GGW24-S216
• Contact Configuration: DPDT (Isolated)
• Operating Temperature: -10 to 185 degrees F
• Applications: Differential Pressure
• Enclosure Type: NEMA 4/4X/13
• Electrical Ratings: 480VAC, 10A
• Max PSIG: 240 PSIG
• Cycles per Minute: 120
