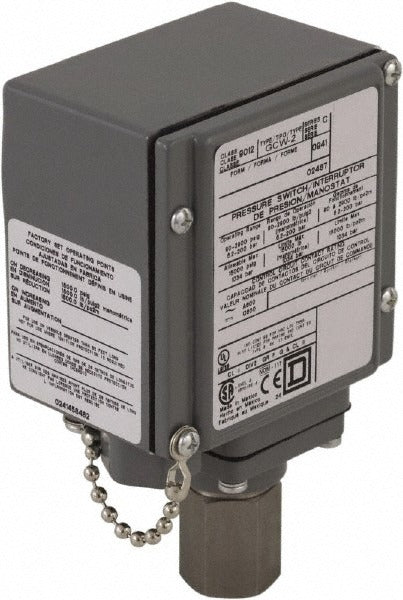

Square D 9012GCW2 Pressure Level Switch 90-2900 Psig

Product Description

The SQUARE D 9012GCW2 is an electromechanical pressure and level switch rated for 90 to 2,900 psig, designed for demanding hydraulic and pneumatic system applications. It features a single-pole double-throw dead-band (SPDT-DB) contact form with screw terminal connections and adjustable differential pressure ranging from 170 to 560 psi. Voltage compatibility spans 120 VAC, 240 VAC, 125 VDC, and 250 VDC at a 6-amp rating. The switch carries NEMA 4, 4X, and 13 enclosure ratings, making it suitable for environments exposed to dust, oil, and water. Licensed electricians and industrial technicians are the primary installers of this switch in process control and equipment protection circuits.

The 9012GCW2 is used in residential and commercial hydraulic power units, pneumatic control systems, and industrial machine circuits where reliable pressure monitoring and switching is required. The fluid connection is 1/4 inch and the conduit connection is 1/2 inch, fitting standard plumbing and conduit configurations common in mechanical rooms and equipment panels. Its vibration-resistant construction makes it well suited for installations on pumps, compressors, and mobile equipment subject to continuous mechanical vibration.

Key Features

• SPDT-DB contact form with adjustable differential pressure between 170 and 560 psi
• Wide pressure range from 90 to 2,900 psig for high-pressure hydraulic and pneumatic circuits
• NEMA 4, 4X, and 13 ratings provide protection against dust, oil mist, and direct water spray
• Dual AC and DC voltage compatibility: 120 VAC, 240 VAC, 125 VDC, 250 VDC
• Vibration-resistant design suitable for compressors, pumps, and mobile equipment
• Meets CE, CSA C22.2 No. 14, IEC 58-2-27, IEC 68-2-6, RoHS, and UL 508 standards

Compatibility

Designed for use with hydraulic systems and pneumatic systems requiring electromechanical pressure switching within the 90 to 2,900 psig operating range.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the circuit and relieve system pressure fully before removing or installing the switch. The 1/4-inch fluid port connection should be made with appropriate thread sealant rated for the system fluid and pressure. Verify that the supply voltage and amperage match the switch ratings before restoring power.
