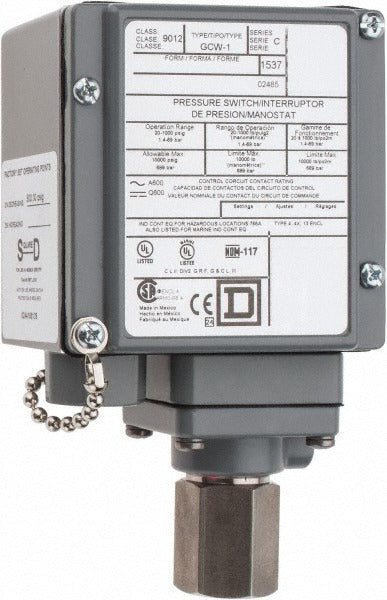

Square D 9012GCW1 Electromechanical Pressure Switch

Product Description

The SQUARE D 9012GCW1 is an electromechanical pressure and level switch designed for industrial fluid power and process control applications. It operates across a pressure range of 20 to 1,000 psig with an adjustable differential, making it adaptable to a wide range of setpoint requirements. The switch features a single-pole double-throw with double-break (SPDT-DB) contact form, screw terminal connections, and is rated for 120 VAC, 240 VAC, 125 VDC, and 250 VDC service. Weighing 3.18 pounds, the unit is built for demanding environments where moisture, dust, and vibration resistance are required. Licensed electricians and industrial controls technicians are the primary installers of this switch.

The 9012GCW1 is suited for hydraulic and pneumatic system monitoring in industrial and commercial settings. Its NEMA 4, 4X, and 13 enclosure ratings make it appropriate for indoor and outdoor installations where washdown conditions, oil mist, or corrosive atmospheres may be present. The 1/4-inch fluid connection port accommodates standard hydraulic and pneumatic line fittings, while the 1/2-inch conduit entry supports standard electrical conduit runs. The adjustable differential pressure range — from 59 to 200 psig — allows field calibration to match specific system requirements without replacing the unit.

Key Features

• Pressure range: 20 to 1,000 psig with adjustable differential setpoint
• SPDT-DB contact form rated at 6 amps for reliable switching in control circuits
• NEMA 4, 4X, and 13 ratings provide protection against dust, oil, and washdown
• Vibration-resistant construction meets IEC 58-2-27 and IEC 68-2-6 standards
• 1/4-inch fluid connection port and 1/2-inch conduit entry for straightforward field installation
• Compliant with UL 508, CSA C22.2 No. 14, CE, and RoHS requirements

Compatibility

Designed for use with hydraulic and pneumatic systems requiring electromechanical pressure switching and level control in industrial control panel and field-mounted applications.

Installation Notes
