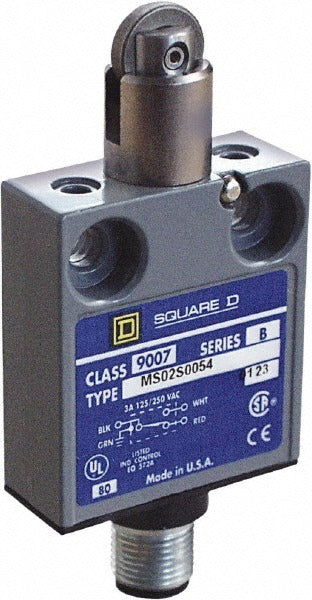

Square D 9007MS02S0054 Limit Switch Spdt Nc IP67

Product Description

The SQUARE D 9007MS02S0054 is a general purpose limit switch built for industrial and commercial control applications requiring reliable position sensing. It features an SPDT contact form with a normally closed (NC) configuration and a parallel roller plunger actuator mounted at the top of the metal body. The switch connects via a 4-pin DC Micro Connector on an M12 interface, making it compatible with standard industrial wiring harnesses. Rated IP67, it resists dust ingress and temporary water immersion. The operating temperature range spans -40 degrees F to 220 degrees F, covering demanding environments found in manufacturing, conveyor, and machine tool installations.

This limit switch is suited for use in industrial machinery, automated assembly lines, conveyor systems, and process equipment where mechanical position detection is required. The metal body construction and IP67 ingress protection rating make it appropriate for wet or washdown-rated environments. NEMA ratings of 1, 2, 4, 6, and 6P extend its usability across a broad range of enclosure and environmental classifications. Licensed electricians and industrial maintenance technicians are the primary installers in both new equipment builds and replacement service scenarios.

Key Features

• SPDT contact form with normally closed (NC) configuration for fail-safe position detection
• Parallel roller plunger actuator, top-mounted, for direct mechanical actuation
• IP67 ingress protection rating — dust-tight and protected against temporary submersion
• M12 4-pin DC Micro Connector for tool-free, standardized field wiring
• Metal body construction rated for NEMA 1, 2, 4, 6, and 6P environments
• Operating temperature range of -40 degrees F to 220 degrees F

Compatibility

Designed as an OEM-style replacement or direct-fit limit switch for industrial control systems requiring a top-actuated parallel roller plunger SPDT switch with an M12 connector interface.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial maintenance technician in accordance with NEC requirements and applicable local codes. De-energize and lock out the machine circuit before removing or installing the switch. Verify that the M12 connector and mating cable assembly are fully seated and secured before restoring power. Do not exceed the rated maximum operating force of 80 ounces on the actuator plunger during mechanical alignment.
