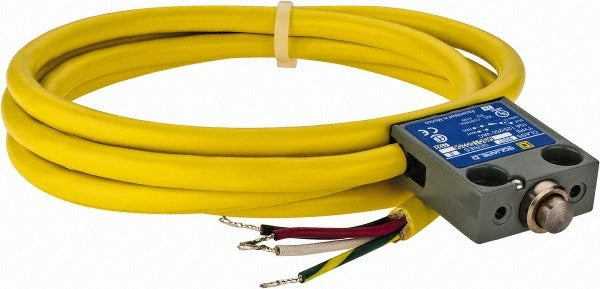

Square D 9007MS01S0206 Limit Switch Spdt Nc Plunger

Product Description

The SQUARE D 9007MS01S0206 is a general purpose limit switch designed for industrial machine control and position sensing applications. It features a top-mounted plunger actuator, single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration, and comes prewired for straightforward installation. The metal body construction and IP67 ingress protection rating make it suitable for demanding environments where exposure to dust, water, or washdown conditions is a concern. Operating temperature range spans -40 degrees F to 220 degrees F, making it viable across a wide range of indoor and outdoor industrial settings. This switch is installed by licensed electricians and industrial maintenance technicians.

This limit switch is well suited for use in manufacturing, material handling, conveyor systems, and other industrial automation applications where precise position detection is required. The top-mounted plunger actuation style fits installations where a machine component or moving part makes direct vertical contact with the switch head. The prewired terminal eliminates the need for field wiring connections at the switch body, reducing installation time. NEMA ratings of 1, 2, 4, 6, and 6P cover a broad range of enclosure and environmental conditions from general indoor use through submersible service.

Key Features

• Top-mounted plunger actuator for direct vertical actuation by machine components
• SPDT contact form with NC configuration for standard control circuit integration
• IP67 ingress protection rating for dust-tight and temporary submersion resistance
• Metal body construction for durability in industrial environments
• Prewired terminal type for simplified field installation
• Wide operating temperature range: -40 degrees F to 220 degrees F
• Compliant with UL 508, CSA C22.2 No. 14, IEC 60529, and RoHS standards

Compatibility

Designed as an OEM-style replacement or direct installation limit switch for industrial machine control panels and automation systems requiring SPDT NC plunger-type limit switches with NEMA 1, 2, 4, 6, or 6P ratings.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the machine or control circuit before servicing or mounting the switch. Verify actuator alignment and operating force requirements before finalizing the mounting position. Do not exceed the rated maximum operating force of 80 ounces to avoid premature wear or actuator damage.
