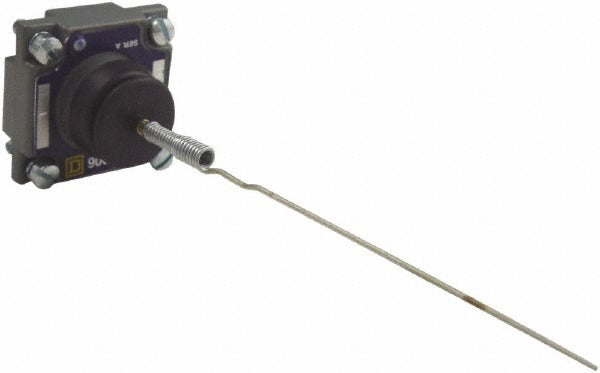

Square D 9007L Limit Switch Head 7.6 in for 9007C

Product Description

The SQUARE D 9007L is a limit switch head designed as a replacement accessory for use with the 9007C limit switch body. Limit switch heads are the actuating component of an industrial limit switch assembly, translating mechanical motion or contact into an electrical signal that controls machine operation or safety interlocks. The 9007L measures 7.6 inches in overall length, providing the reach and geometry required for precise actuation in the target application. Installation is handled by qualified electricians or industrial maintenance technicians working on automated machinery, conveyor systems, or process control equipment.

This switch head is suited for industrial and commercial applications where the 9007C series limit switch is already installed or being replaced. It is used in machine tool, material handling, and factory automation environments where reliable, repeatable position sensing is required. The 9007L is a direct replacement component, allowing field technicians to replace only the head assembly without disturbing the conduit entry or base wiring of the existing switch body.

Key Features

• 7.6-inch overall length provides proper actuation reach for 9007C series installations
• Designed specifically as a compatible head assembly for the 9007C limit switch body
• Compact profile with a height of 5.3 inches and width of 7 inches
• Lightweight at 0.36 pounds, reducing added load on mounting hardware
• Sold individually, allowing single-unit replacement without excess inventory

Compatibility

Designed for use with the SQUARE D 9007C limit switch series. Consult the 9007C documentation to confirm the correct head type for the specific actuator style required.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit and associated machinery before removing or installing any limit switch component. Verify that the replacement head style matches the required actuator type for the application before mounting. Do not force the head assembly onto the switch body; confirm correct alignment before securing.
