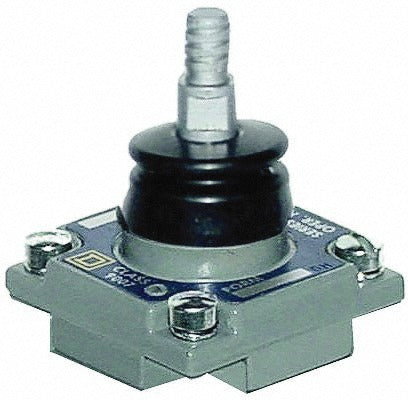

Square D 9007JKC Limit Switch Head for 9007C

Product Description

The SQUARE D 9007JKC is a limit switch head designed as a replacement accessory for use with the 9007C limit switch body. Limit switch heads are the mechanical actuating component that detects object presence or position and triggers the switch mechanism. This head measures 7.6 inches in overall length and weighs 0.1 pounds, making it a compact, direct-fit component. It is installed by licensed electricians and industrial maintenance technicians in control circuits where precise positional switching is required. The 9007JKC is a single-unit replacement part suited for restoring or upgrading an existing 9007C switch assembly.

Limit switch heads in the 9007 series are commonly used in industrial and commercial applications including conveyor systems, machine tool positioning, door and gate control, and process equipment. This head mounts to the 9007C switch body and provides the mechanical interface between the moving machine element and the electrical switching function. It is appropriate for both new installations and field replacement of worn or damaged switch heads on existing equipment.

Key Features

• 7.6-inch overall length for direct compatibility with 9007C switch bodies
• Lightweight at 0.1 pounds for easy handling during installation
• Single-unit packaging allows for targeted replacement without full switch assembly purchase
• Functions as a mechanical actuating head in positional and limit control circuits

Compatibility

Designed for use with the SQUARE D 9007C limit switch body series. Confirm switch body model before installation to ensure proper mechanical fit.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC guidelines. De-energize the circuit and lock out and tag out the equipment before removing the existing switch head or installing the replacement. Verify mechanical alignment of the actuator with the moving machine element after mounting to ensure reliable switching action. Do not force the head onto the switch body if resistance is encountered — confirm correct part compatibility first.
