Square D 9007HA26 Adjustable Roller Lever Limit Switch

Product Description

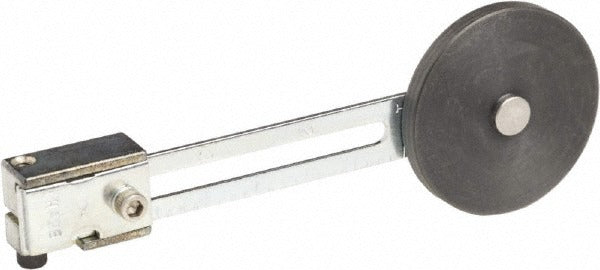

The SQUARE D 9007HA26 is an adjustable roller lever designed for use with the 9007 series limit switches. This actuator arm extends 11.5 inches in overall length and features a nylon roller at its tip, allowing the lever position to be set to suit a wide range of mechanical actuation angles and distances. It is a switch accessory that replaces or supplements the standard lever arm on compatible 9007 series switch bodies. Electricians and industrial maintenance technicians install this component when an application requires a longer reach or an adjustable actuation point for precise machine control or position sensing.

This lever is suited for industrial and commercial control panel applications where 9007 series limit switches monitor mechanical position, door closures, conveyor travel limits, or equipment end stops. It is appropriate for both new installations and field replacements when the existing lever arm is damaged or when the actuation geometry of the original installation needs to be reconfigured. The adjustable design makes it adaptable to tight or awkward mounting orientations without requiring a new switch body.

Key Features

• 11.5-inch overall length provides extended reach for limit switch actuation
• Adjustable lever arm allows repositioning to match actuation angle requirements
• Nylon roller tip reduces wear on cams, trips, and actuating surfaces
• Direct replacement accessory for 9007 series switch bodies
• Lightweight construction at 0.1 pounds

Compatibility

Compatible with SQUARE D 9007 series limit switch bodies including 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5.

Installation Notes

Installation is performed by a qualified electrician or industrial maintenance technician. De-energize and lock out the associated control circuit before removing or attaching any switch actuator lever. Verify the lever is secured to the switch body per the manufacturer fastening method before restoring power. Confirm that the adjusted lever position actuates the switch within its rated travel range before returning the machine to service.
