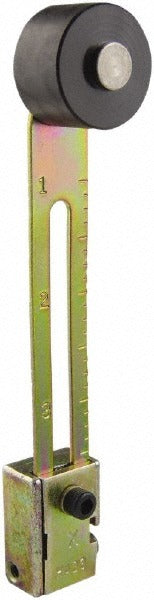

Square D 9007HA24 Adjustable Roller Lever Limit Switch

Product Description

The SQUARE D 9007HA24 is an adjustable roller lever accessory designed for use with Square D 9007-series limit switches. The lever arm extends 11.5 inches overall and features a steel roller, providing durable actuation in industrial and commercial control applications. This replacement part restores proper mechanical actuation to a limit switch assembly and is installed by electricians and industrial maintenance technicians working on automated machinery, conveyor systems, and process control equipment. Its adjustable design allows the lever angle to be set to match the specific actuation geometry required at the installation point.

This lever is suited for light industrial and commercial control panel applications where 9007-series limit switches are already installed. It is used in replacement and maintenance scenarios where the original lever has worn or been damaged. The steel roller construction holds up to repeated mechanical contact in typical factory and process environments. Maintenance electricians and automation technicians are the primary installers of this accessory.

Key Features

• 11.5-inch overall arm length for extended actuation reach
• Steel roller construction for durability under repeated contact cycles
• Adjustable lever angle to suit varied actuation geometries
• Direct replacement accessory for Square D 9007-series limit switches
• Lightweight at 0.1 pounds for easy handling and installation

Compatibility

Designed for use with Square D limit switch series 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5.

Installation Notes

Installation should be performed by a qualified electrician or instrumentation technician. De-energize and lock out the associated control circuit before removing or attaching any limit switch components, following NFPA 70E lockout/tagout procedures. Verify that the lever angle adjustment is secured before restoring power and returning the switch to service. Do not force the roller lever beyond its rated mechanical travel range during adjustment.
