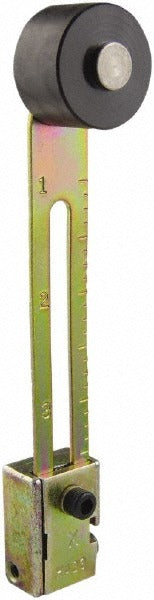

Square D 9007HA23 Adjustable Roller Lever 11.5 in

Product Description

The SQUARE D 9007HA23 is an adjustable roller lever designed as a replacement accessory for compatible limit switch bodies. The lever measures 11.5 inches in overall length and features a nylon roller at the actuating end. It is used to convert or replace the lever mechanism on industrial and commercial limit switches, allowing the switch to detect object contact or position through mechanical actuation. Electricians and control panel technicians install this type of lever when servicing or reconfiguring limit switch assemblies on machinery, conveyor systems, and equipment interlocks.

This lever is suited for use in light industrial and commercial control applications where a limit switch requires an extended roller arm for actuation. The adjustable design accommodates a range of mounting orientations and actuation angles. It is intended for retrofit or replacement installations on existing switch bodies and is typically installed as part of preventive maintenance or equipment repair work on motion-control and safety-interlock circuits.

Key Features

• 11.5-inch overall length provides extended reach for actuation
• Nylon roller resists wear during repeated contact cycles
• Adjustable lever design supports multiple mounting orientations
• Sold individually as a direct replacement accessory
• Lightweight construction at 0.17 pounds

Compatibility

Compatible with the following SQUARE D limit switch bodies: 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5.

Installation Notes

Installation is performed by licensed electricians or qualified control technicians. De-energize and lock out the circuit before removing or installing any limit switch component in accordance with NFPA 70E lockout/tagout procedures. Verify lever orientation and actuation direction before final tightening to ensure proper switch operation under load conditions.
