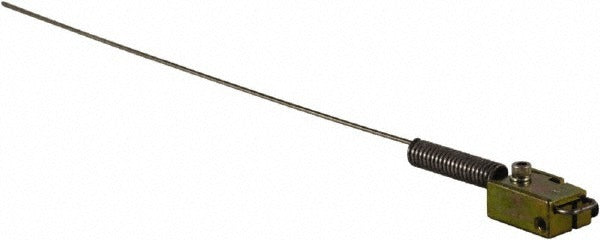

Square D 9007FA3 Limit Switch Operator 12 in Steel

Product Description

The SQUARE D 9007FA3 is a steel-body limit switch operator designed for use with industrial and commercial limit switches. The operator measures 12 inches in overall length with a 3/4 inch body diameter, making it suitable for applications that require extended reach between the actuating mechanism and the switch body. The steel construction provides durability in demanding environments where the operator is exposed to mechanical contact, vibration, or moderate impact. Licensed electricians and industrial maintenance technicians typically install this component as part of a machine control or position-sensing circuit.

This operator is used in control systems where a moving machine element must trigger a limit switch at a defined travel point. Common applications include conveyor systems, automated machinery, door interlock circuits, and other electromechanical control setups in residential, commercial, and light industrial settings. The 12 inch length allows the operator to bridge the gap between the switch mounting location and the actuating target, providing installation flexibility when direct mounting is not practical.

Key Features

• 12 inch overall length for extended-reach actuation applications
• 3/4 inch body diameter for compatibility with standard limit switch operator mountings
• Steel body construction for mechanical durability and resistance to wear
• Designed as a dedicated operator accessory for use with limit switches
• Compact package weight of 0.14 pounds for easy handling and installation

Compatibility

Designed for use with limit switches as stated by the manufacturer. Verify operator dimensions and mounting interface against the target limit switch model before installation.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. De-energize and lock out the control circuit before installing or replacing the operator, following NFPA 70E lockout/tagout procedures. Confirm that the operator length and diameter are appropriate for the switch model and the mechanical travel path of the actuating element before securing the assembly. Do not modify the operator body or attempt to extend its length beyond its rated configuration.
