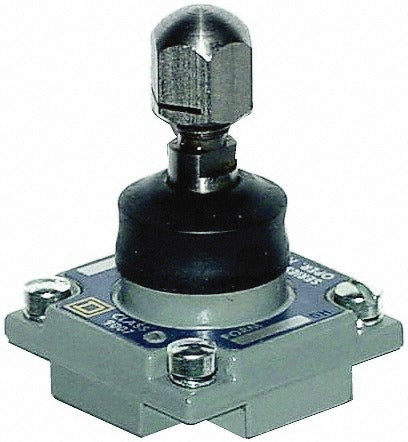

Square D 9007ED Limit Switch Head 7.6 in for 9007C

Product Description

The SQUARE D 9007ED is a limit switch head designed as a replacement accessory for industrial control and automation applications. Measuring 7.6 inches in overall length, this switch head mounts to compatible limit switch bodies to provide reliable position detection and mechanical actuation in machinery, conveyor systems, and other automated equipment. At 0.27 pounds, it is a lightweight component that electricians and industrial maintenance technicians install during routine service or system upgrades.

This limit switch head is suited for use in industrial and commercial settings where precise mechanical position sensing is required. It is commonly installed on machinery requiring end-of-travel detection, door or gate monitoring, or safety interlocks. The 9007ED is specified for new installations and replacement service work on existing limit switch assemblies.

Key Features

• 7.6-inch overall length for compatibility with standard limit switch body configurations
• Lightweight construction at 0.27 pounds for easy handling and installation
• Designed as a direct replacement accessory for the 9007C limit switch series
• Compact profile with 5.3-inch height and 7-inch width for tight installation spaces

Compatibility

The 9007ED limit switch head is designed for use with the SQUARE D 9007C limit switch series.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. Disconnect and lock out all power to the control circuit before removing or installing limit switch components, following NFPA 70E arc flash and lockout/tagout requirements. Verify the switch head is fully seated and secured to the switch body before restoring power and testing actuation.
