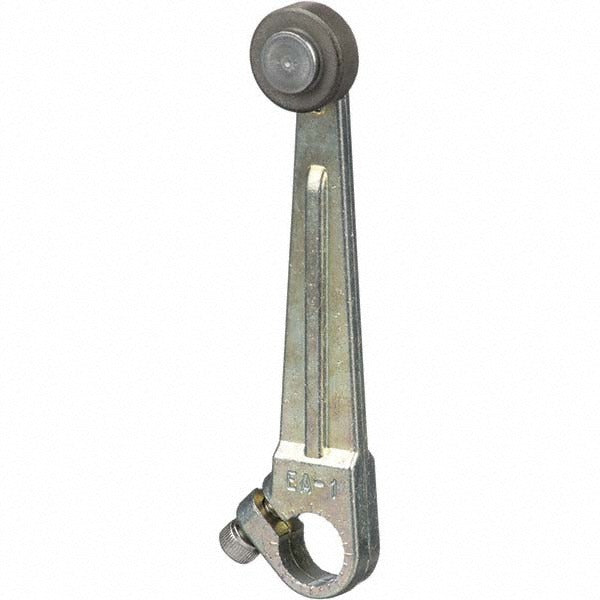

Square D 9007EA1 Limit Switch Operator Steel Roller

Product Description

The SQUARE D 9007EA1 is a limit switch operator designed for use with industrial and commercial limit switches. The operator measures 3 inches in overall length and 0.63 inches in diameter, making it a compact actuating component that translates mechanical contact into an electrical signal within a control circuit. The body is cast zinc for corrosion resistance and dimensional stability, while the roller is steel for durability under repeated actuation. Licensed electricians and automation technicians typically install this component as part of position-sensing or safety-interlock assemblies on machinery, conveyor systems, and process equipment.

This operator is used in applications requiring reliable mechanical actuation of a limit switch, including industrial machinery, conveyor lines, door and gate position sensing, and equipment safety interlocks. It suits both light-duty and moderate-duty cycles where a steel roller actuator provides consistent, repeatable contact with a cam or striker. The 3-inch length provides adequate reach for standard mounting configurations without modification.

Key Features

• Cast zinc body for corrosion resistance and structural rigidity
• Steel roller for durable, repeatable mechanical actuation
• 3 inch overall length suits standard limit switch mounting geometries
• 0.63 inch diameter for compatibility with common operator mounting bores
• Compact form factor fits tight installation spaces on machinery and enclosures

Compatibility

Designed as an OEM-style operator for use with SQUARE D limit switches. Verify operator type and mounting interface against the specific limit switch series before installation.

Installation Notes

Installation is typically performed by a licensed electrician or qualified maintenance technician. De-energize all circuits and lock out the machine before removing or installing limit switch components per NFPA 70E lockout/tagout requirements. Ensure the roller actuator aligns correctly with the cam or striker to avoid side-loading, which can cause premature wear. Confirm mounting torque and actuator travel with the limit switch manufacturer documentation before commissioning.
